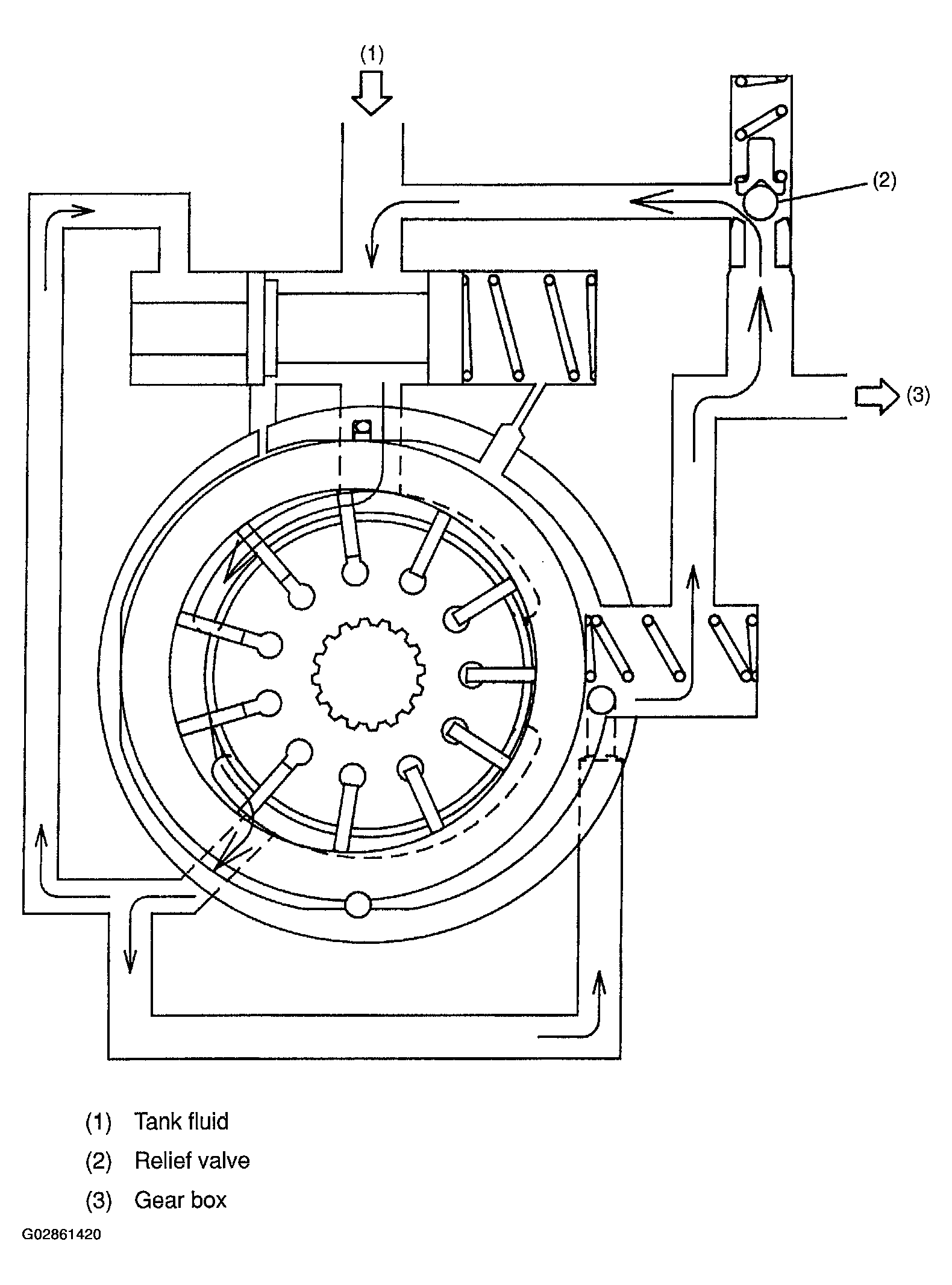

Maximum Pressure Control
When the overall delivery rate of the pump exceeds a preset value, the relief valve opens to allow part of the discharged fluid to flow toward the suction side of the pump, thereby controlling the maximum pressure.
Courtesy of SUBARU OF AMERICA, INC.
