ABS Control Module Signal Connector End View (Legacy & Outback)

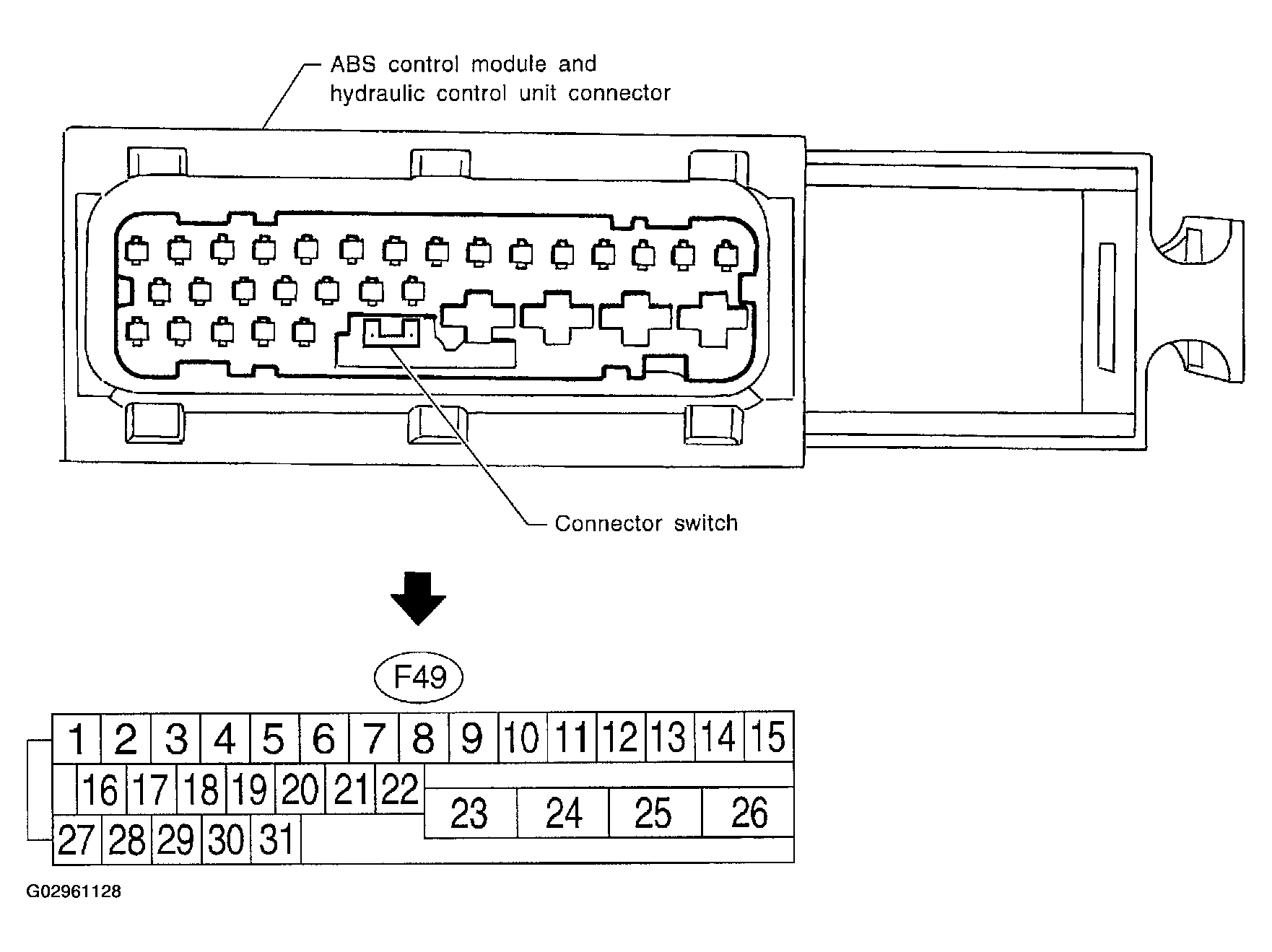

Fig 1: ABS Control Module Signal Connector End View (Legacy & Outback)

G02961128

Courtesy of SUBARU OF AMERICA, INC.
