Fan Control

The main fan and sub fan are switched ON and OFF according to the operating modes as shown in the following table.

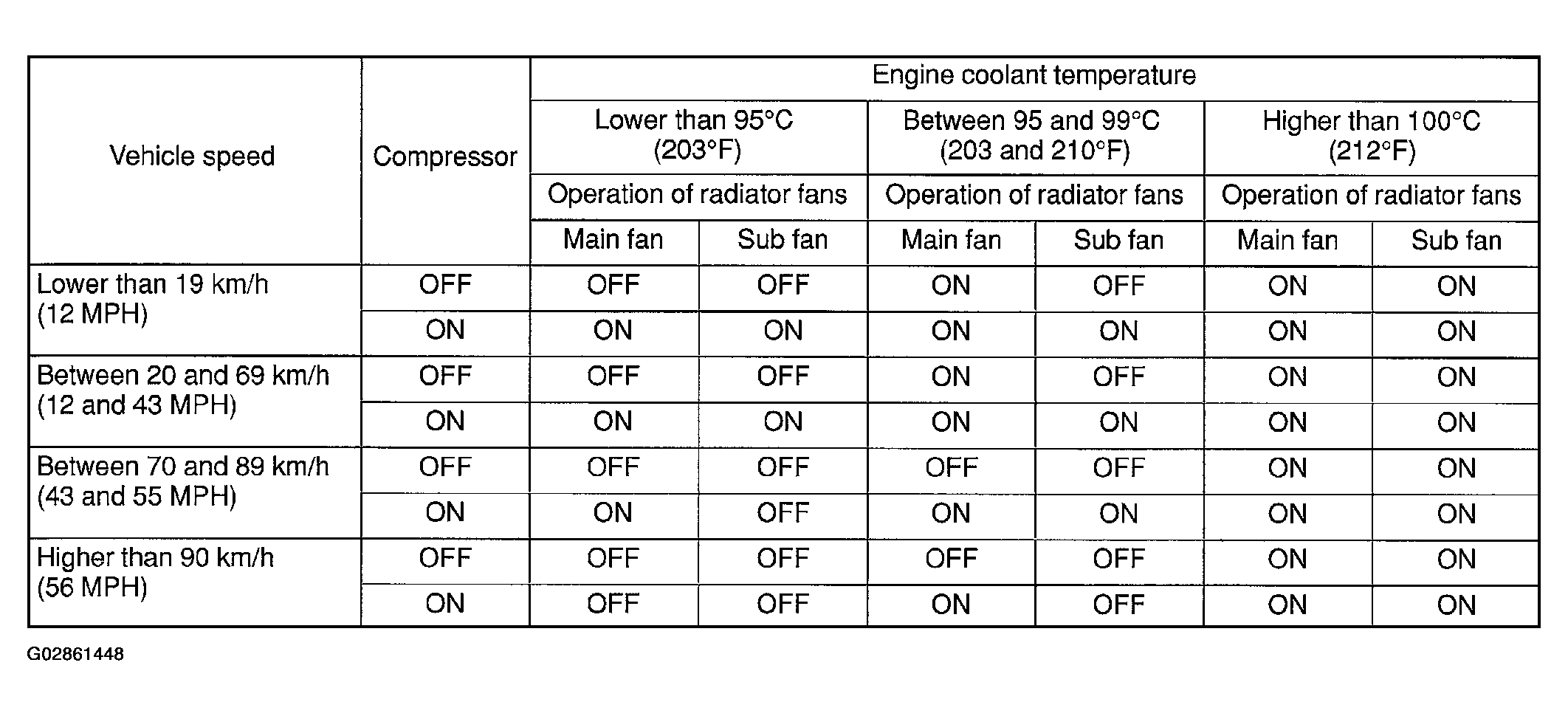

Fig 1: Fan Control Operating Mode Chart
G02861448Courtesy of SUBARU OF AMERICA, INC.
