Code 93: Rear Vehicle Speed Sensor: Trouble Symptom

No lock-up or excessive tight corner "braking".

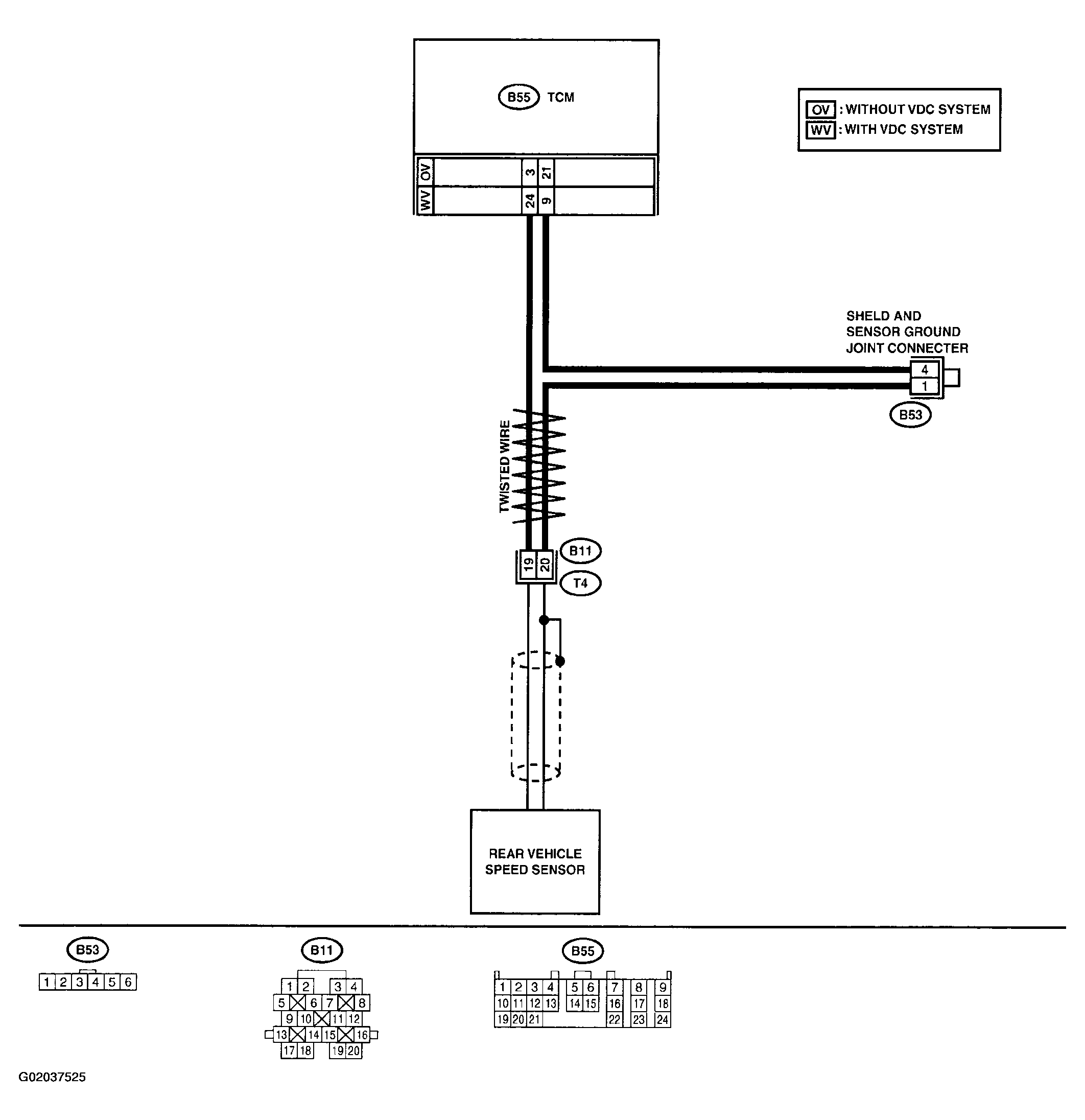

Fig 1: Trouble Code 93 - Rear Vehicle Speed Sensor Wiring Diagram
G02037525

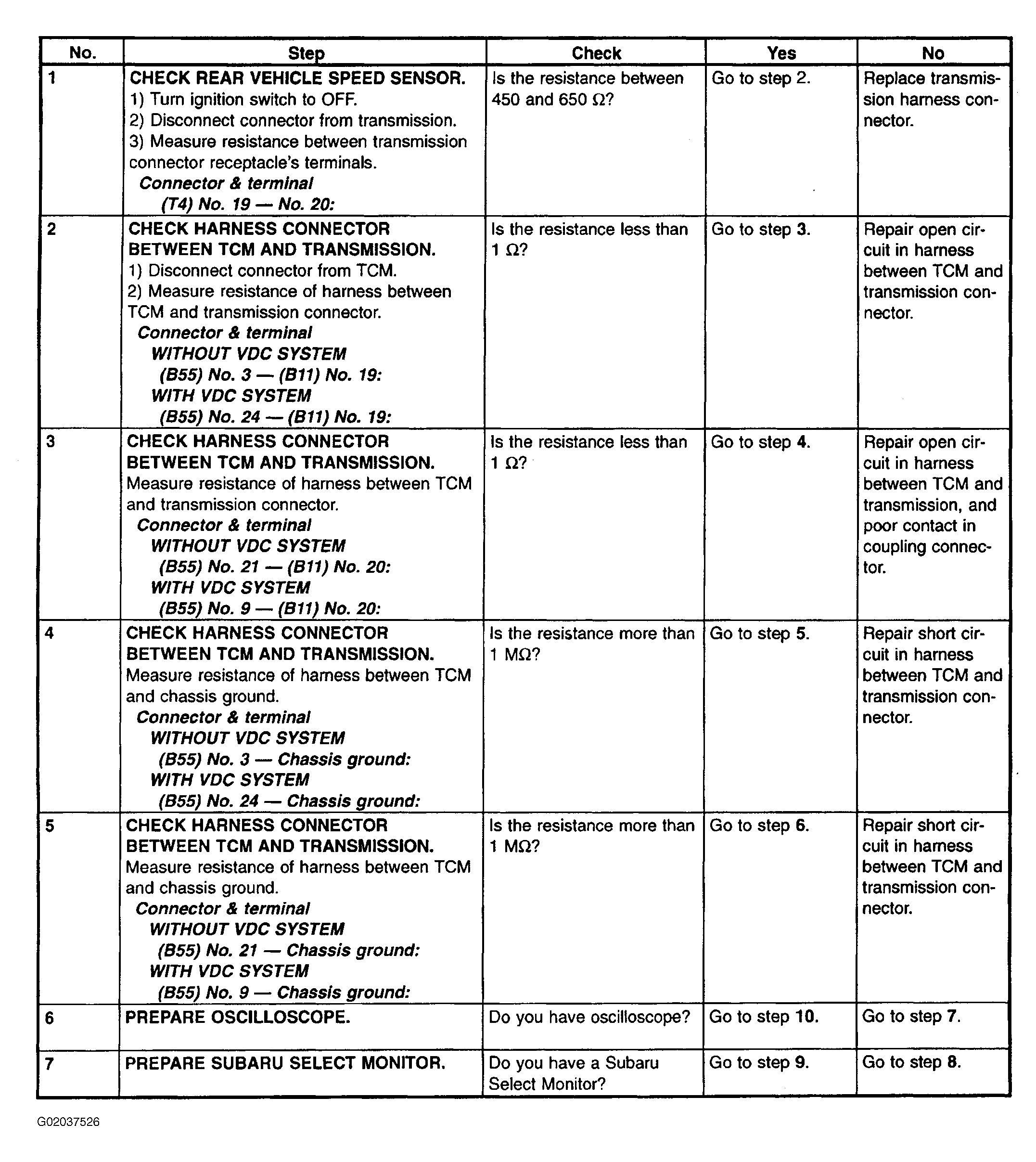

Fig 2: Trouble Code 93 - Diagnostic Chart (1 Of 3)
G02037526

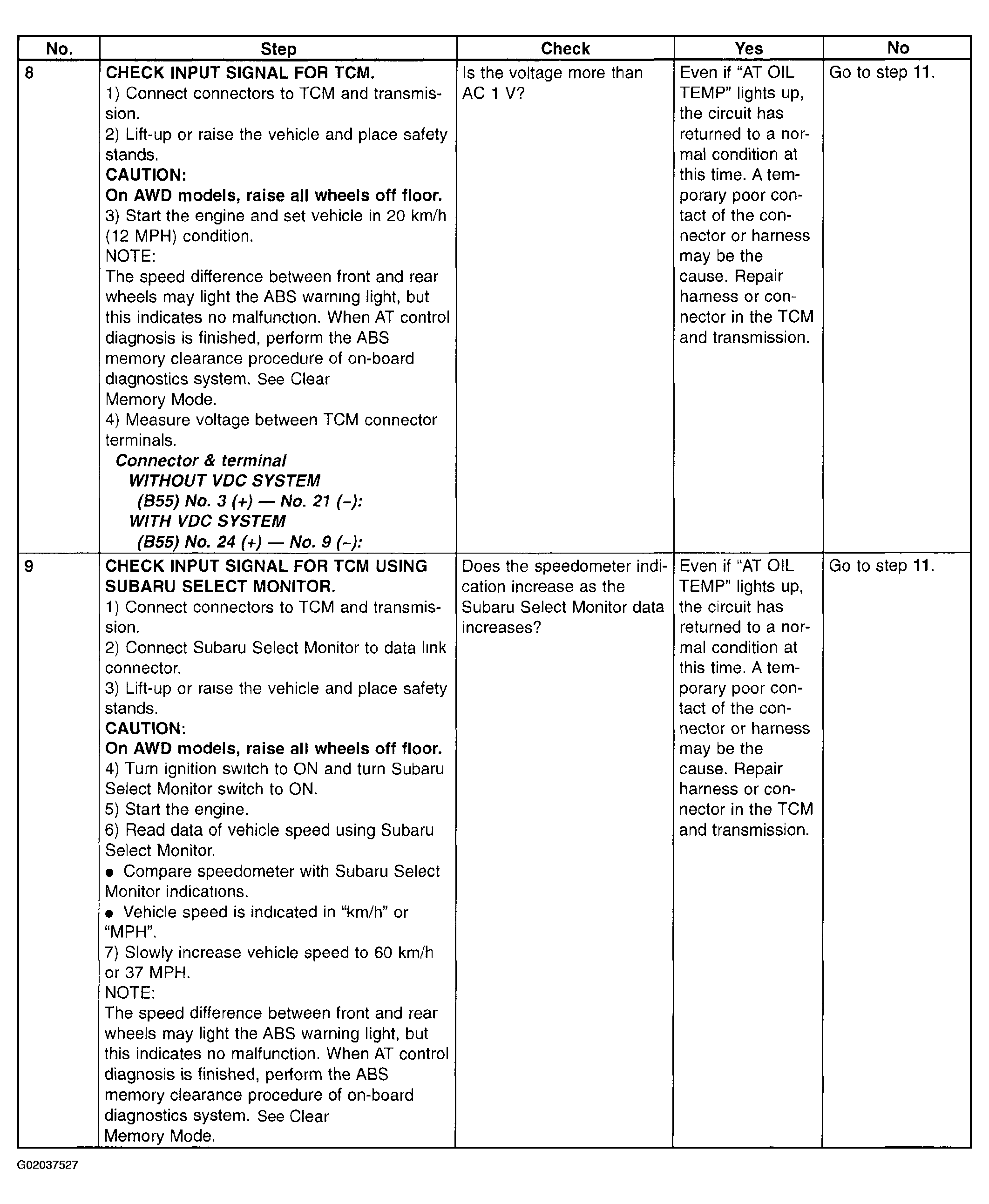

Fig 3: Trouble Code 93 - Diagnostic Chart (2 Of 3)
G02037527

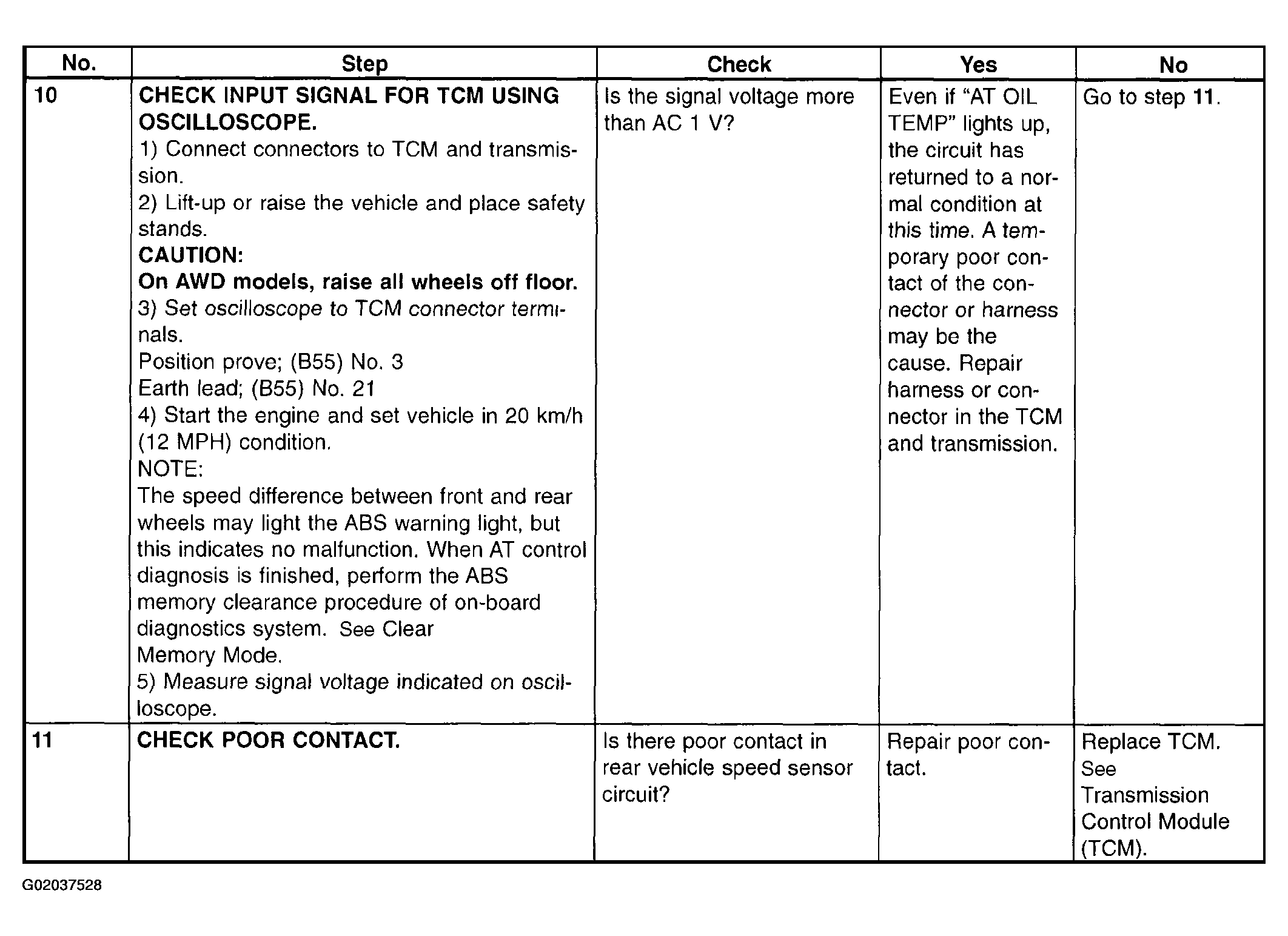

Fig 4: Trouble Code 93 - Diagnostic Chart (3 Of 3)
G02037528
