Code 86: VDC Communication Signal: Diagnosis

Input signal circuit of TCM is open or shorted.

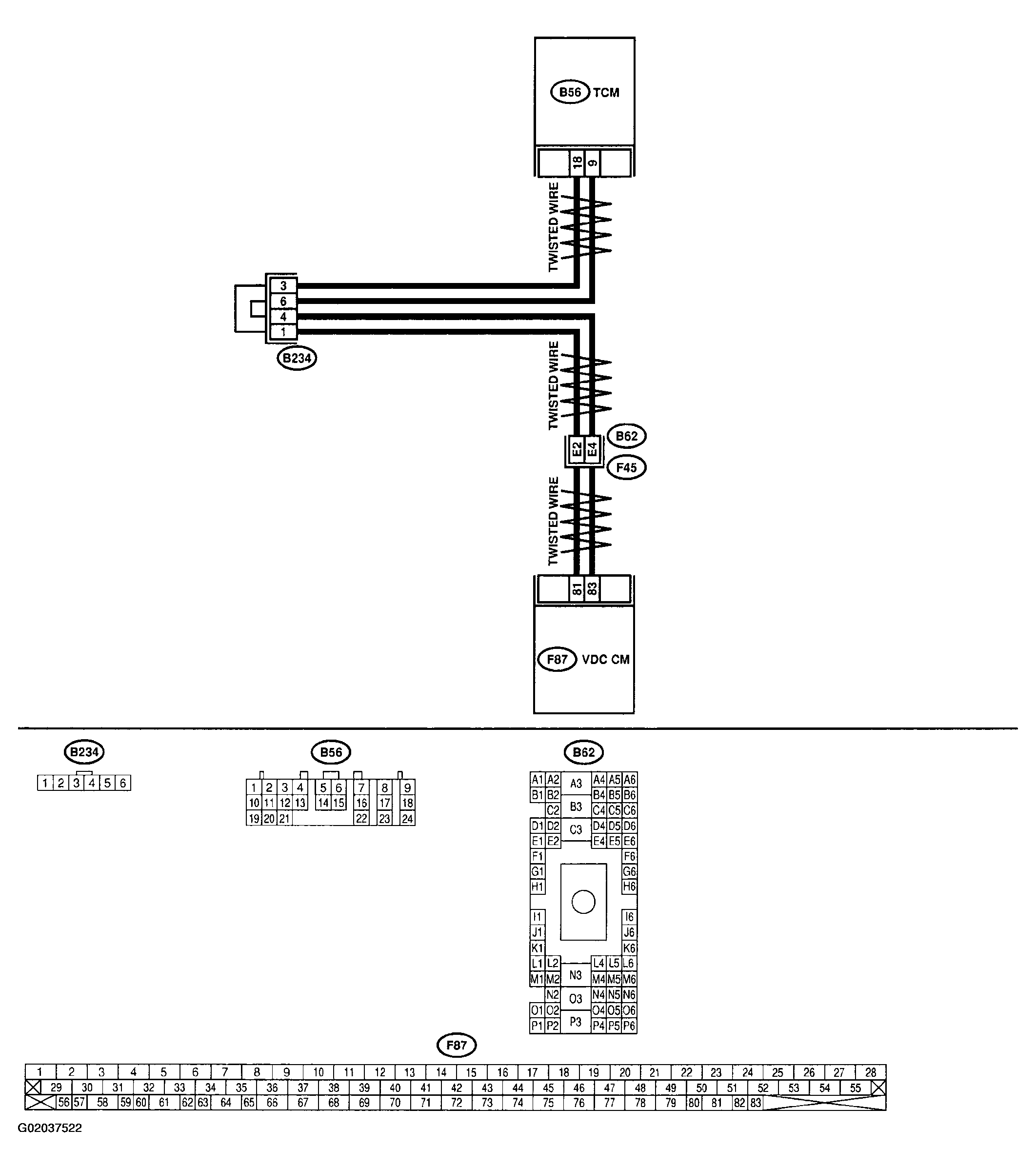

Fig 1: Trouble Code 86 - VDC Communication Signal Wiring Diagram

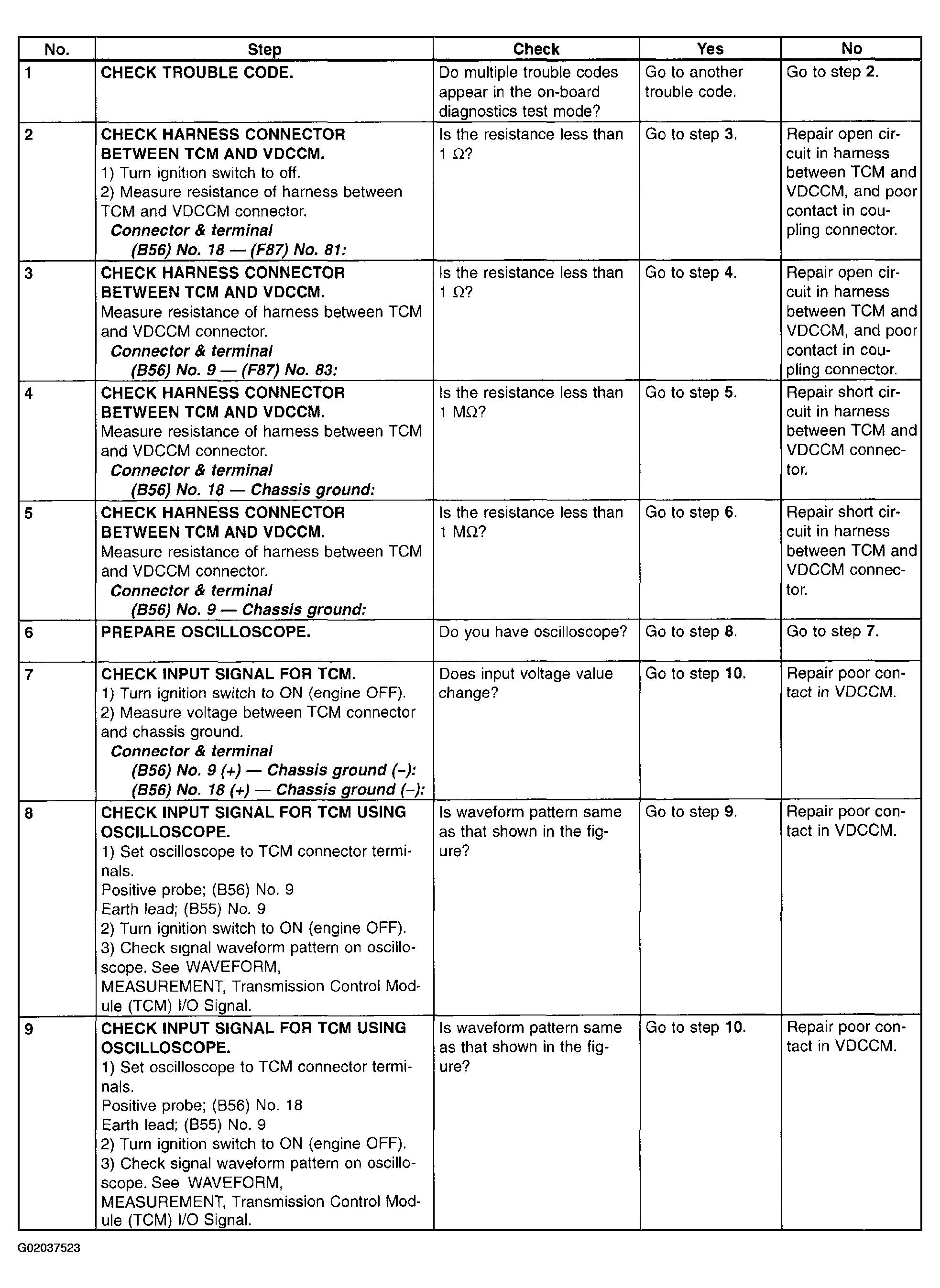

Fig 2: Trouble Code 86 - Diagnostic Chart (1 Of 2)

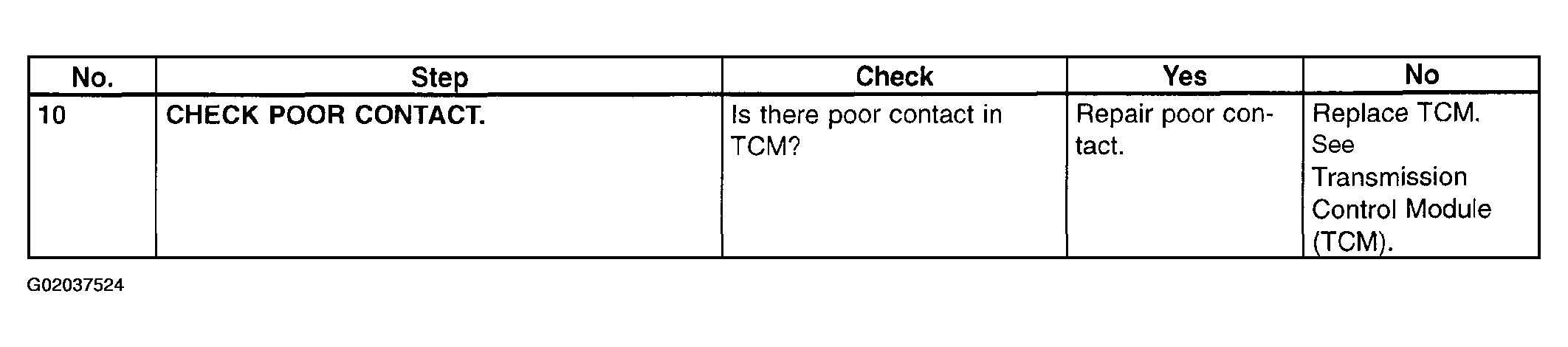

Fig 3: Trouble Code 86 - Diagnostic Chart (2 Of 2)
