Code 72: Shift Solenoid 2: Trouble Symptom

Does not shift.

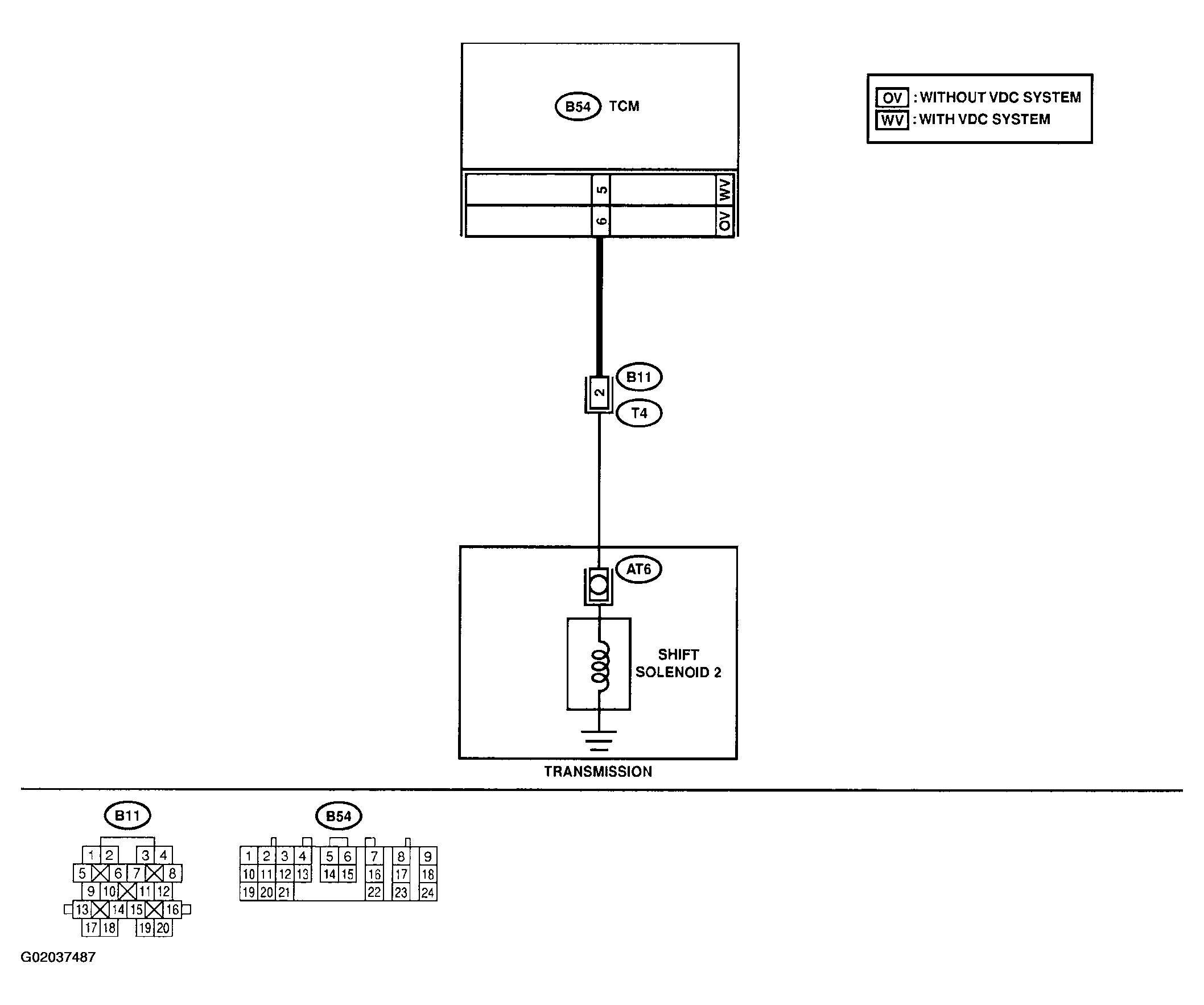

Fig 1: Trouble Code 72 - Shift Solenoid 2 Wiring Diagram

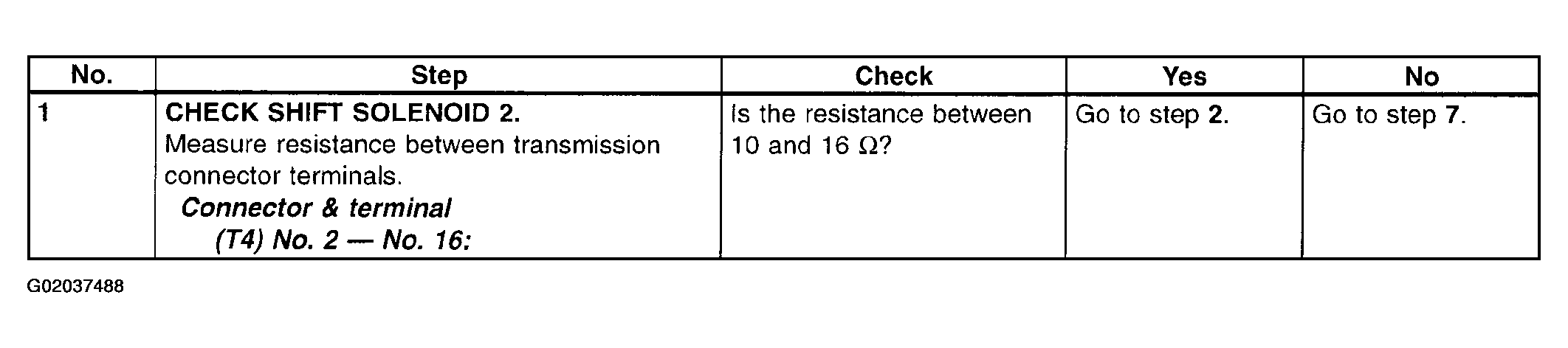

Fig 2: Trouble Code 72 - Diagnostic Chart (1 Of 3)

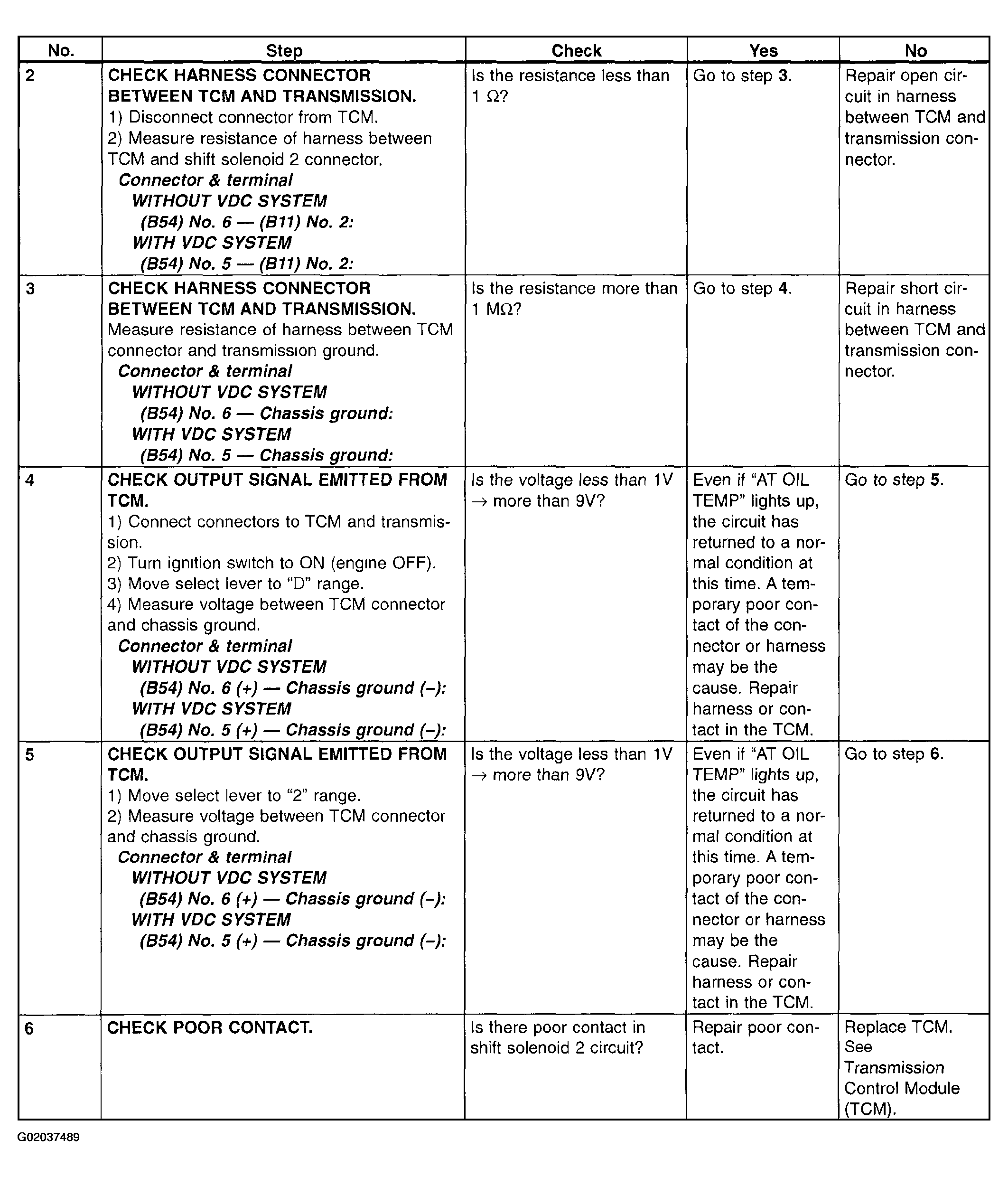

Fig 3: Trouble Code 72 - Diagnostic Chart (2 Of 3)

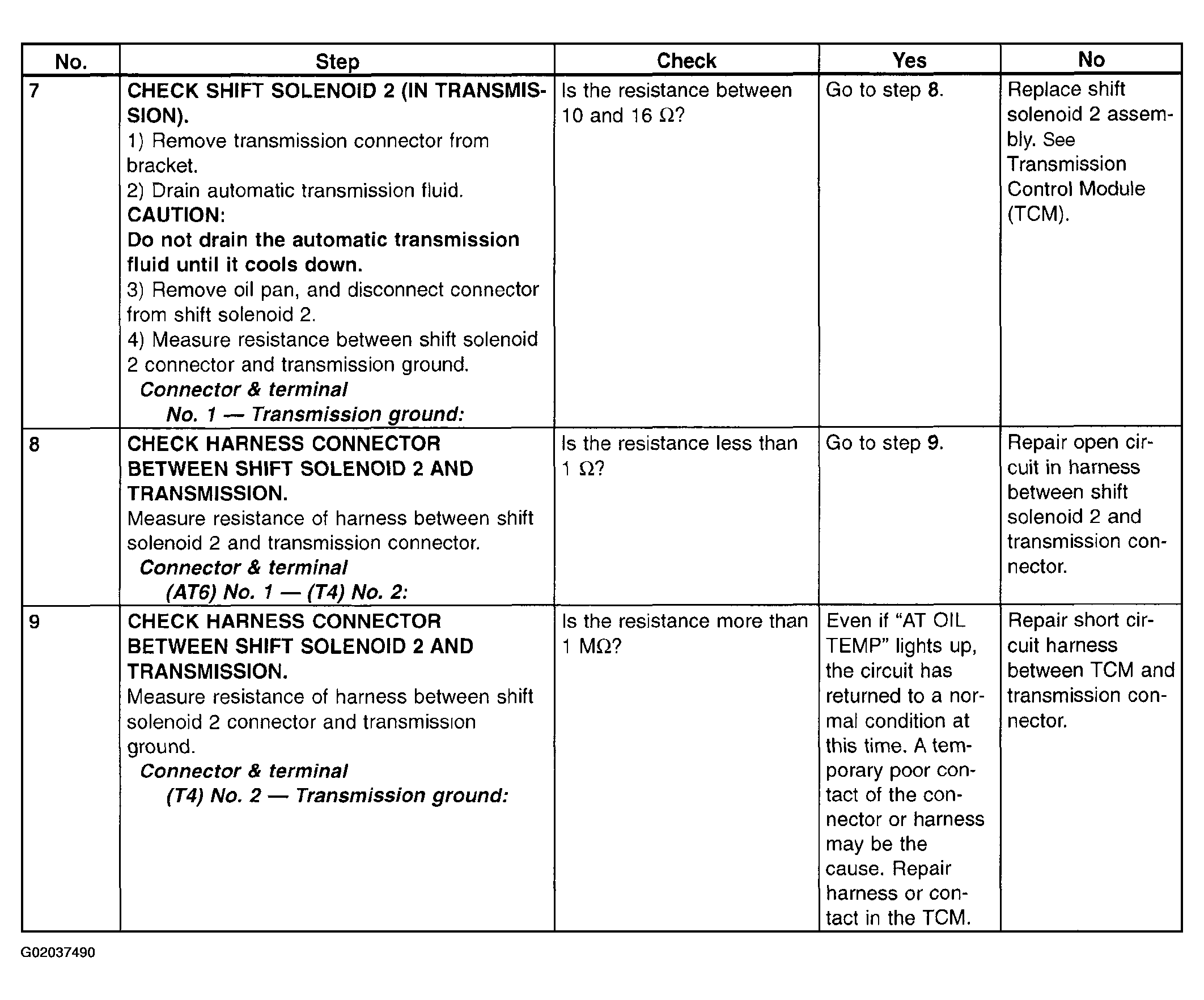

Fig 4: Trouble Code 72 - Diagnostic Chart (3 Of 3)
