Code 36: Torque Converter Turbine Speed Sensor: Trouble Symptom

Excessive shift shock.

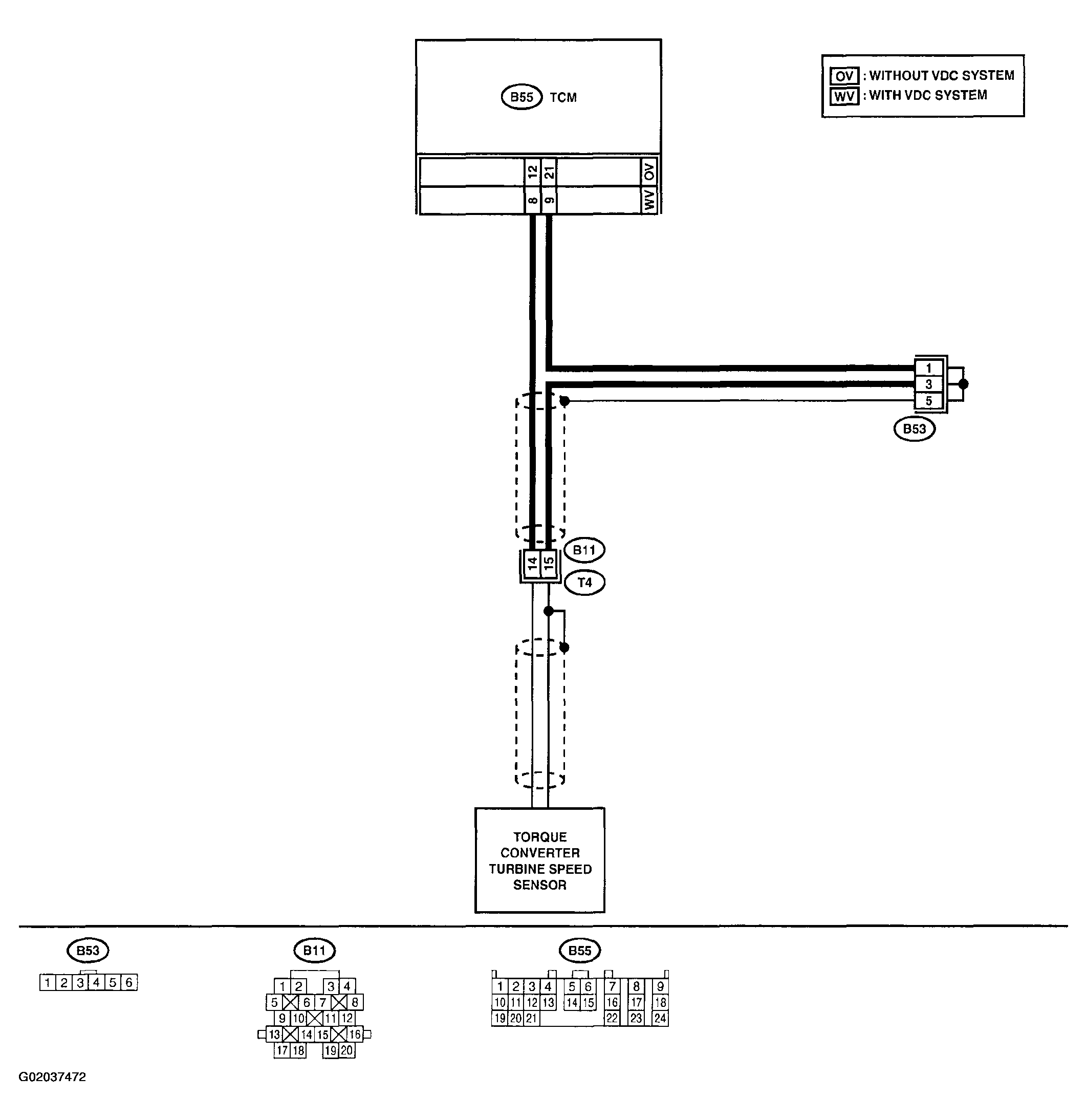

Fig 1: Trouble Code 36 - Torque Converter Turbine Speed Sensor Wiring Diagram
G02037472

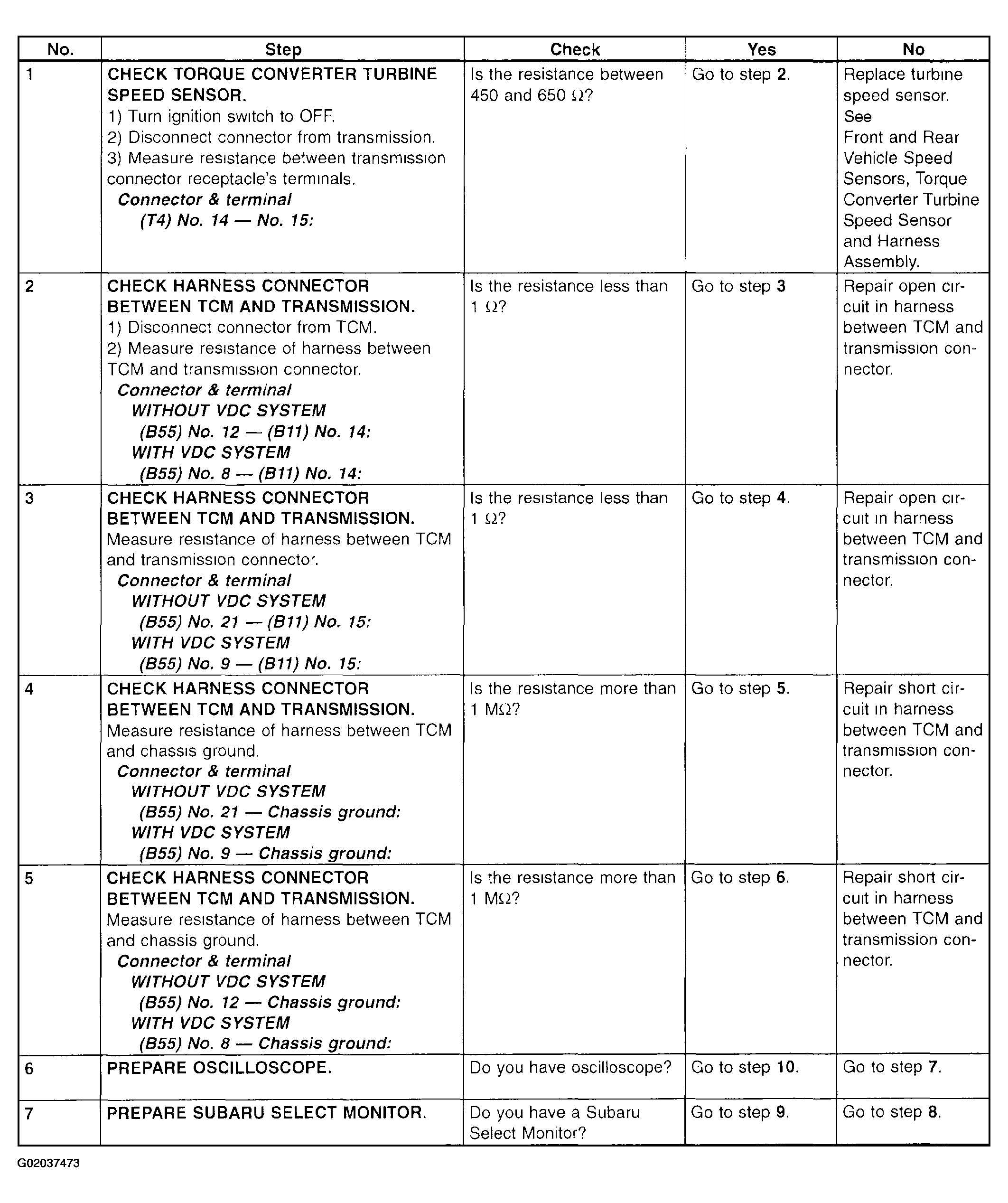

Fig 2: Trouble Code 36 - Diagnostic Chart (1 Of 2)
G02037473

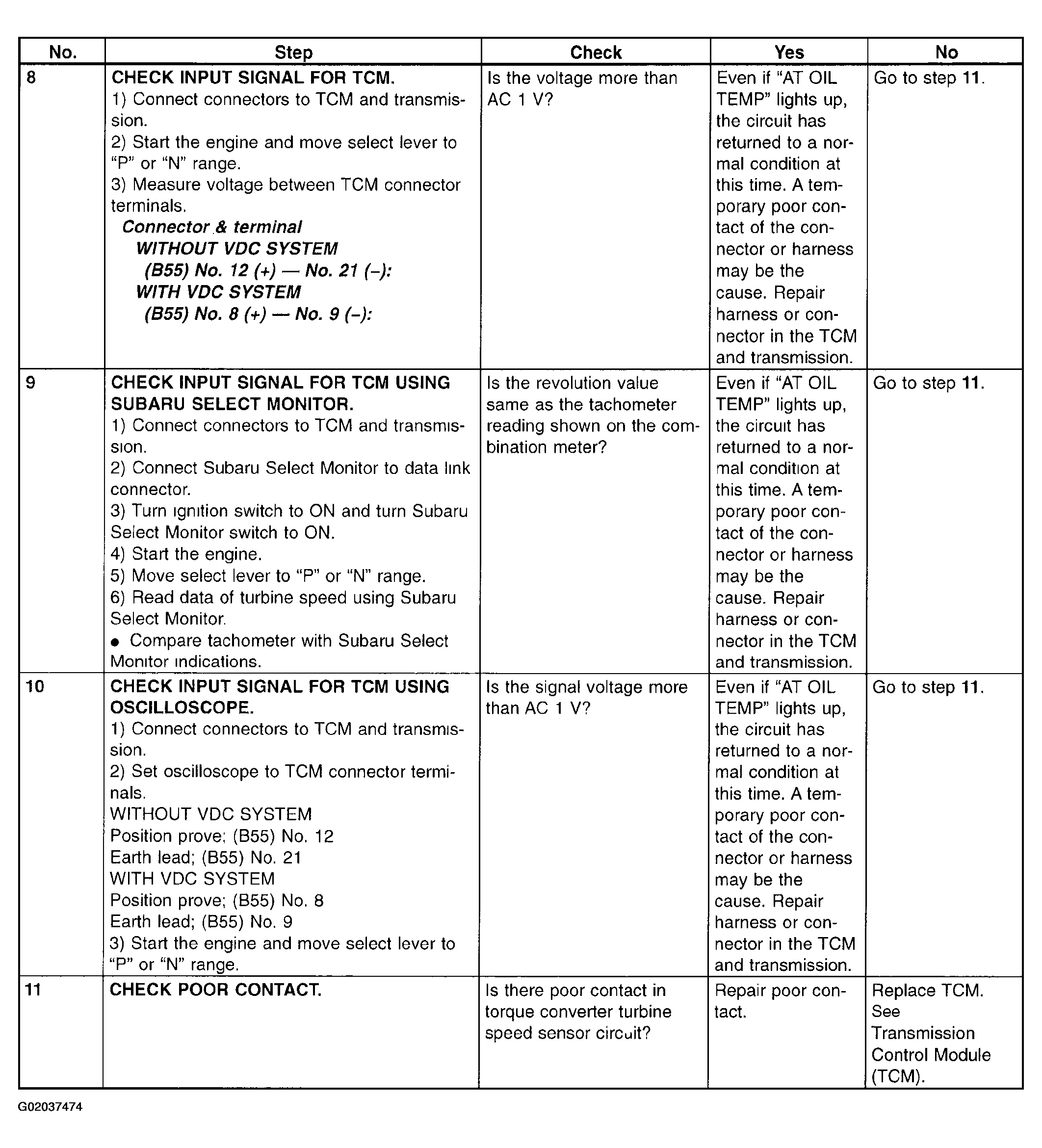

Fig 3: Trouble Code 36 - Diagnostic Chart (2 Of 2)
G02037474
