Front Camber Adjustment

Loosen two self-locking nuts located at lower front portion of strut.
CAUTION:
- When adjusting bolt needs to be loosened or tightened, hold its head with a wrench and turn self-locking nut.
- Discard loosened self-locking nut and replace with a new one.
Turn camber adjusting bolt so that camber is set at the specification.
NOTE: Moving the adjusting bolt by one scale graduation changes camber by approximately 0°10'.

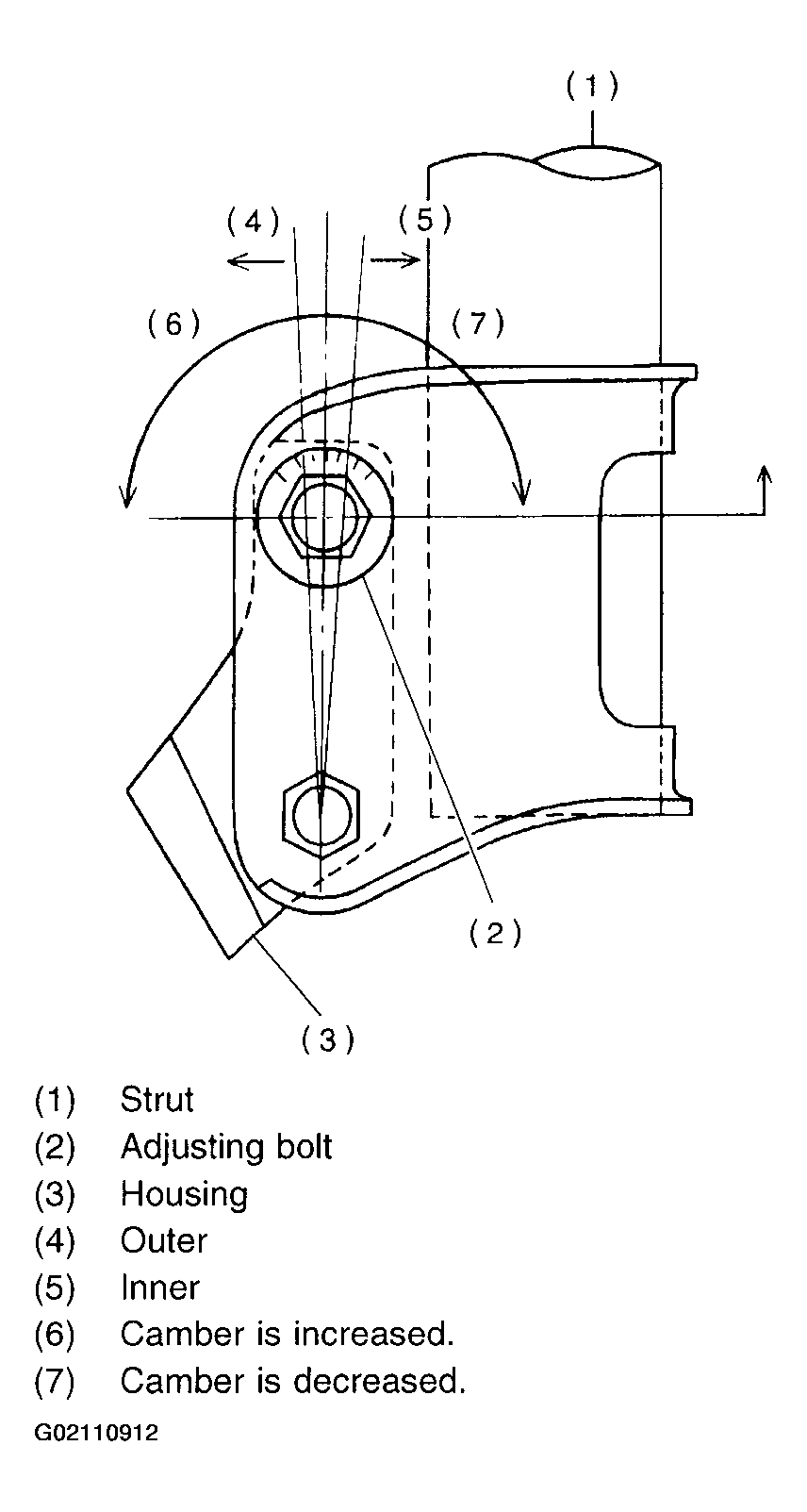

Fig 1: Adjusting Camber
Courtesy of SUBARU OF AMERICA, INC.

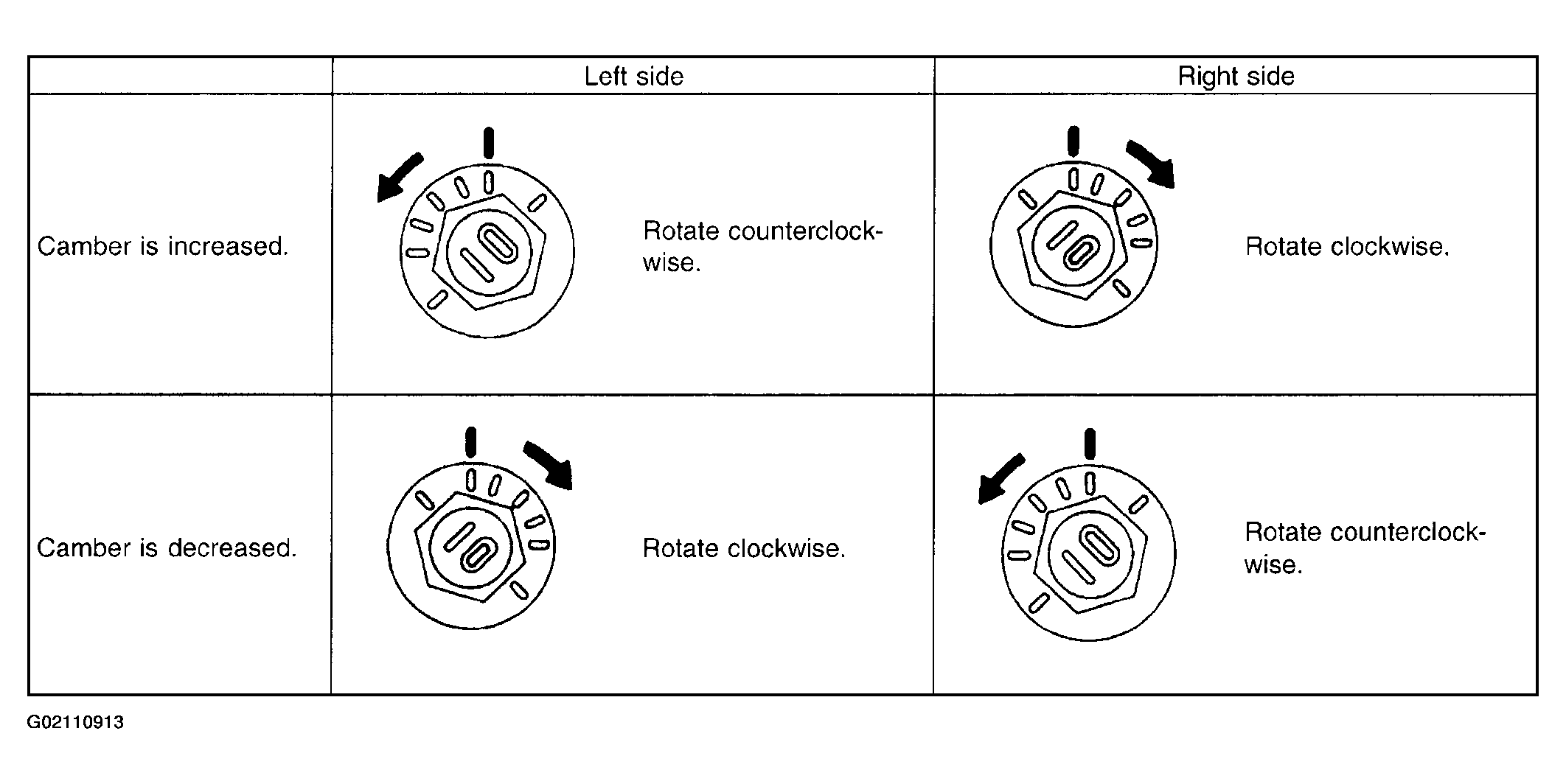

Fig 2: Camber Adjustment Chart
Courtesy of SUBARU OF AMERICA, INC.
Tighten the two self-locking nuts.
1. Tightening torque: 152 N-m (16 kgf-m, 116 ft-lb)
