Air Intake Chambers: Removal

  1. Disconnect battery ground cable.

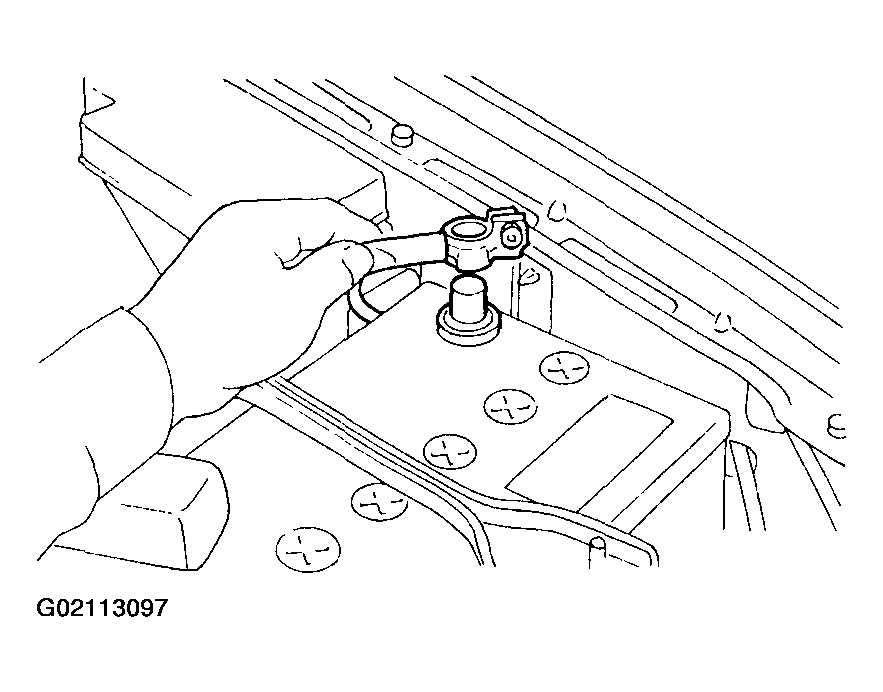

    Fig 1: Disconnecting Battery Ground Cable
    G02113097
  2. Disconnect connector from intake air temperature sensor.

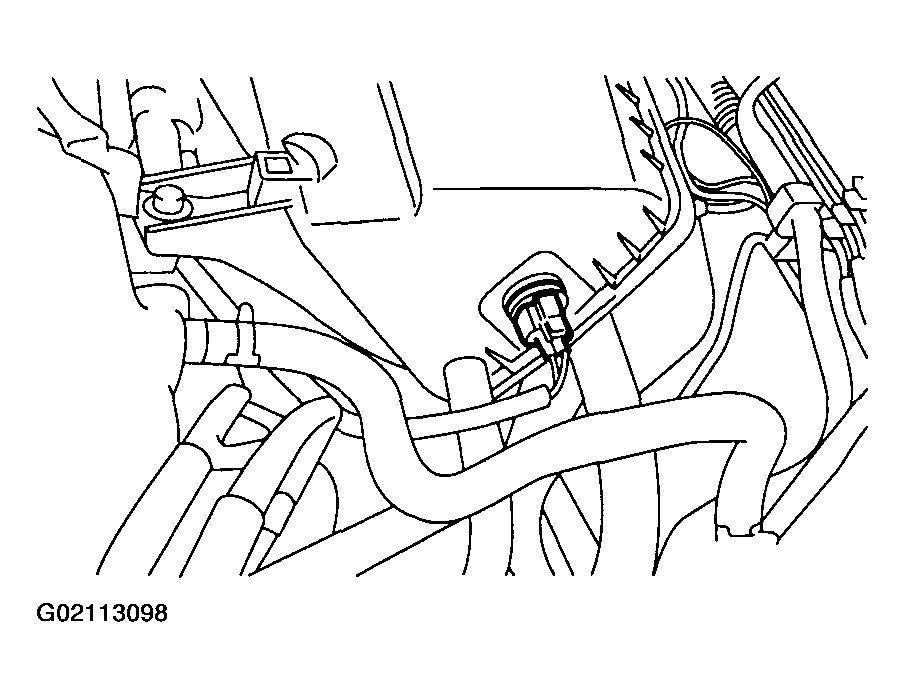

    Fig 2: Disconnecting Connector From Intake Air Temperature Sensor
    G02113098
  3. Loosen clamp (A) which connects air intake chamber to throttle body.
  4. Remove bolts (B) which install air intake chamber to stays.
  5. Loosen clamp (C) which connects air intake chamber to air intake boot.

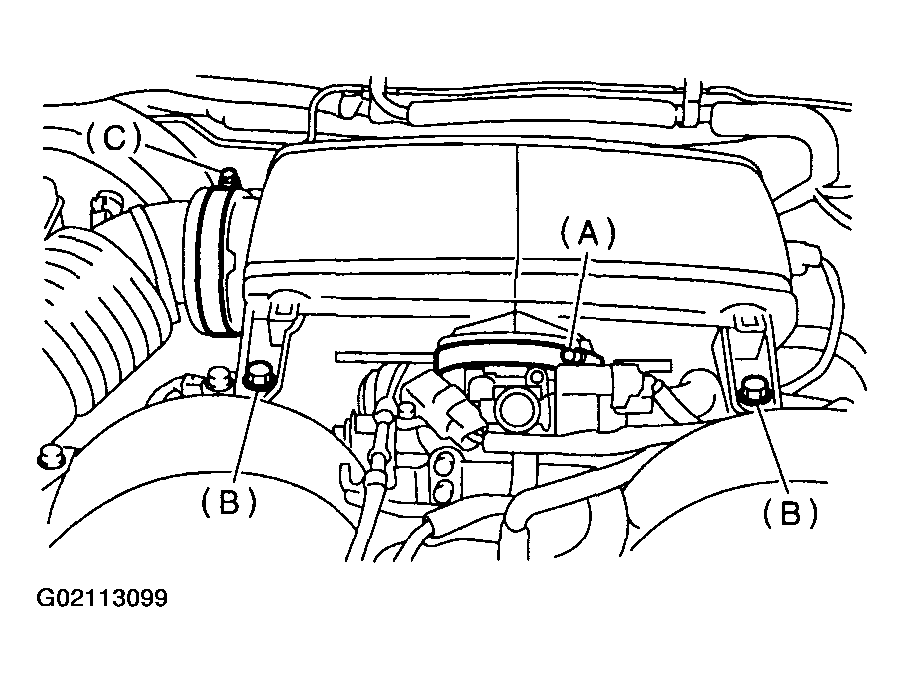

    Fig 3: Loosening Clamps & Removing Bolts
    G02113099
  6. Disconnect hoses from air intake chamber.
  7. Remove air cleaner case.
