General Description
>>
Specifications
>>
Adjusting Parts
Adjusting Parts
VA-type

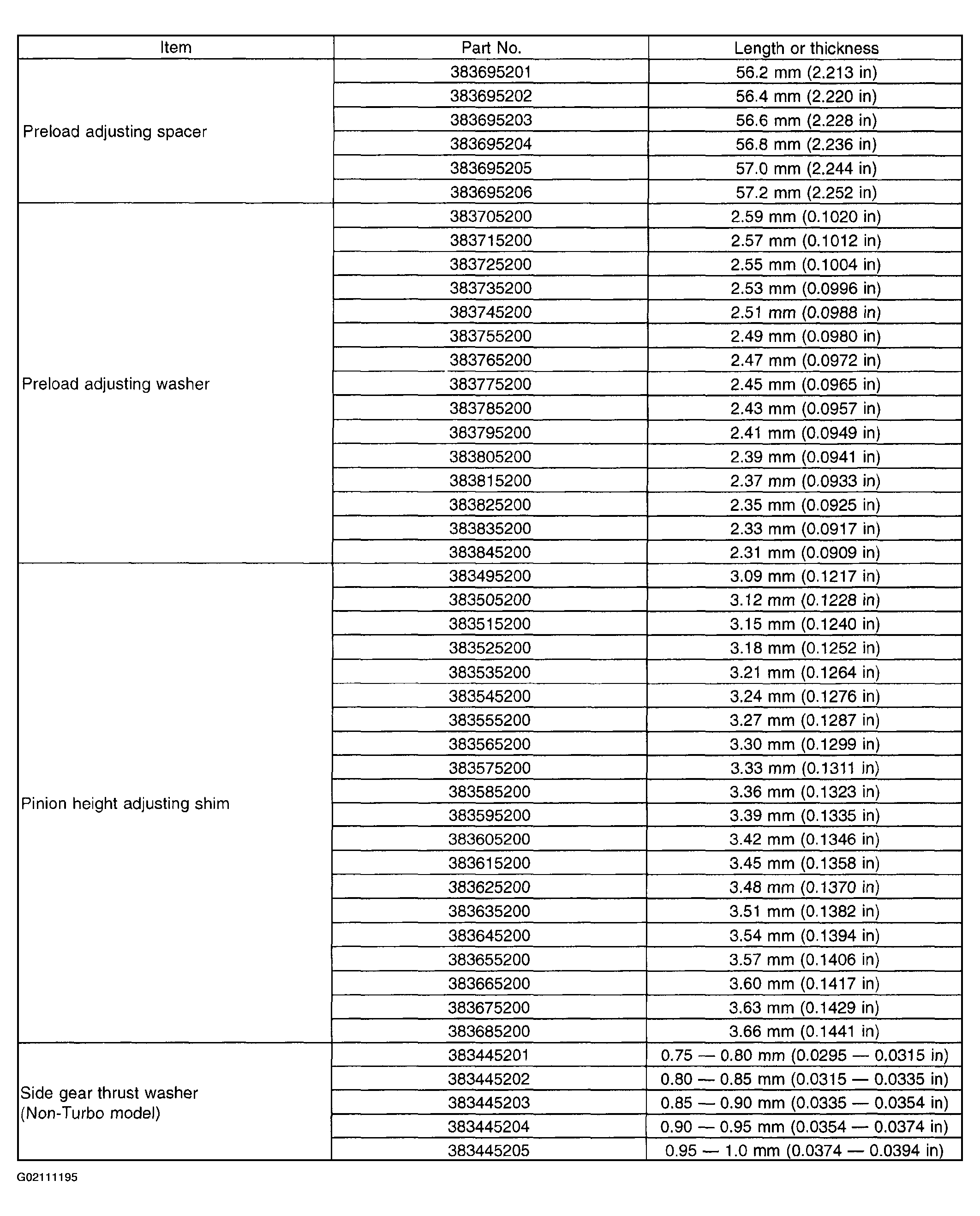

Fig 1: Adjusting Parts Chart
T-type

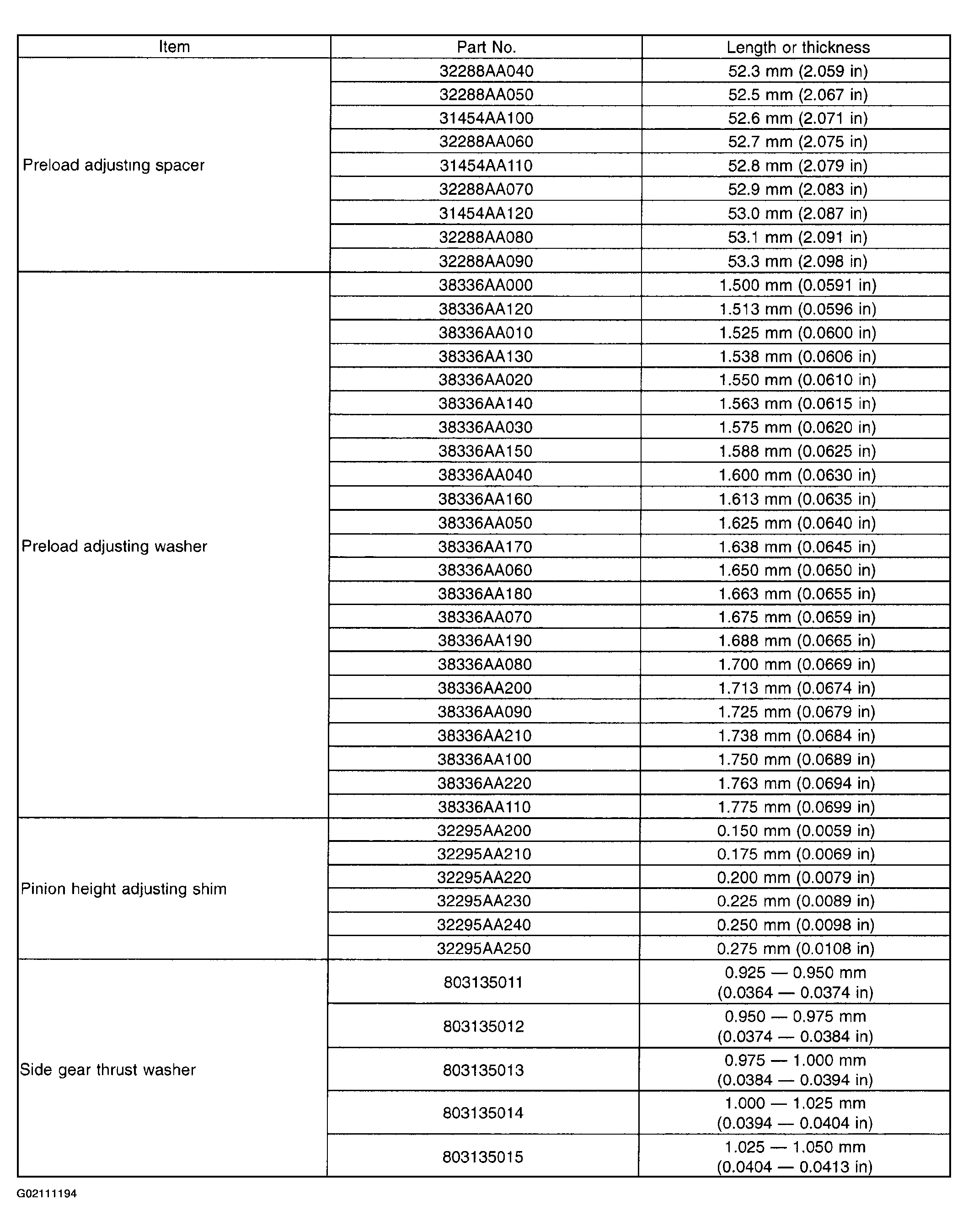

Fig 2: Adjusting Parts Chart

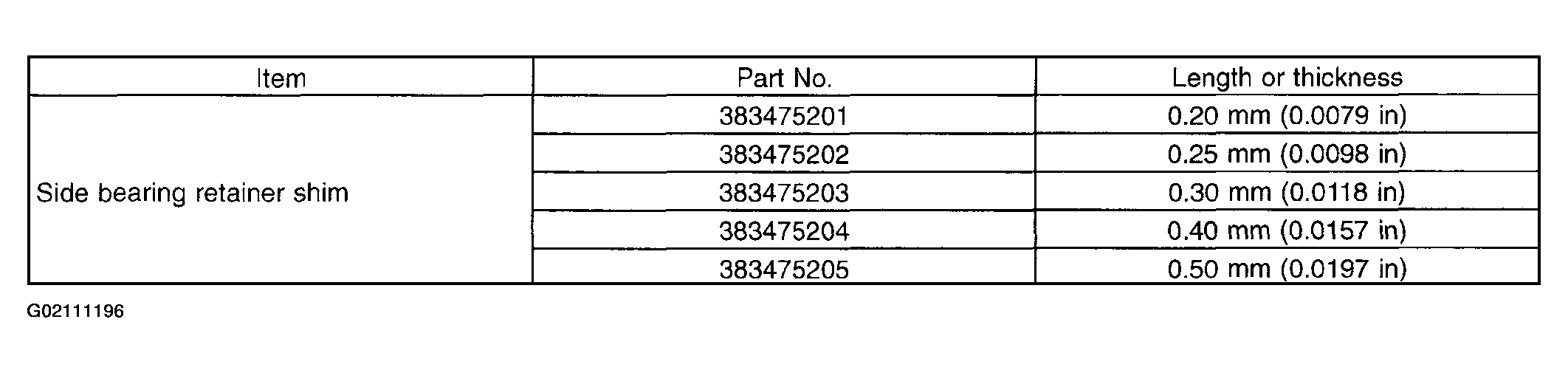

Fig 3: Side Bearing Adjusting Shim Chart
