Removal & Installation: Stabilizer: Removal

1. Jack-up the front part of the vehicle and support it with safety stand (rigid racks).
2. Remove jack-up plate from lower part of crossmember.
3. Remove bolts which secure stabilizer to crossmember. See Fig 1.
4. Remove bolts which secure stabilizer link to front transverse link. See Fig 2.

Fig 1: Removing Bolt & Nut Securing Stabilizer To Crossmember

Courtesy of SUBARU OF AMERICA, INC.

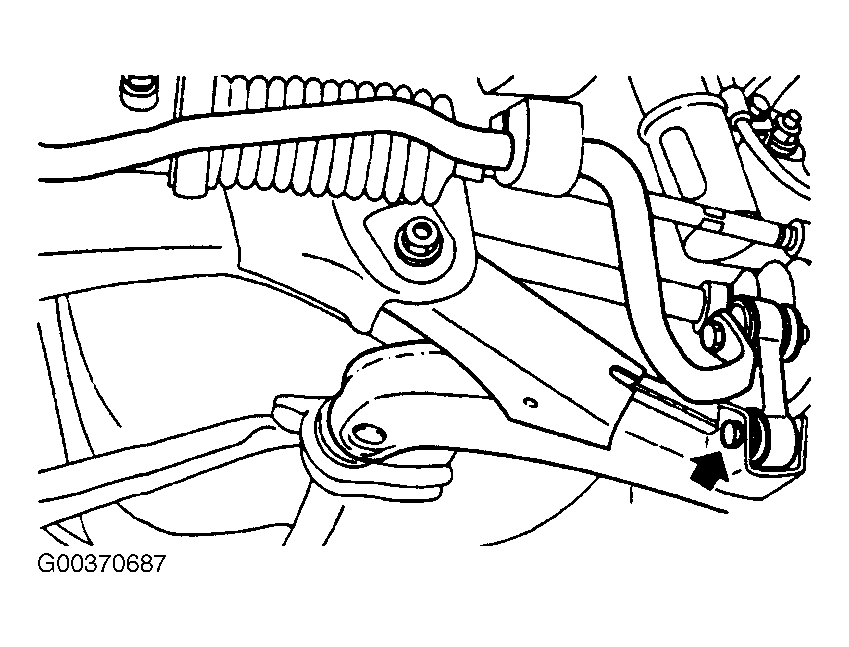

Fig 2: Removing Stabilizer Link To Front Transverse Link

Courtesy of SUBARU OF AMERICA, INC.
