AT Shift Lock System: Inspection: Notes

WARNING: This page is about a different variant/trim than selected.

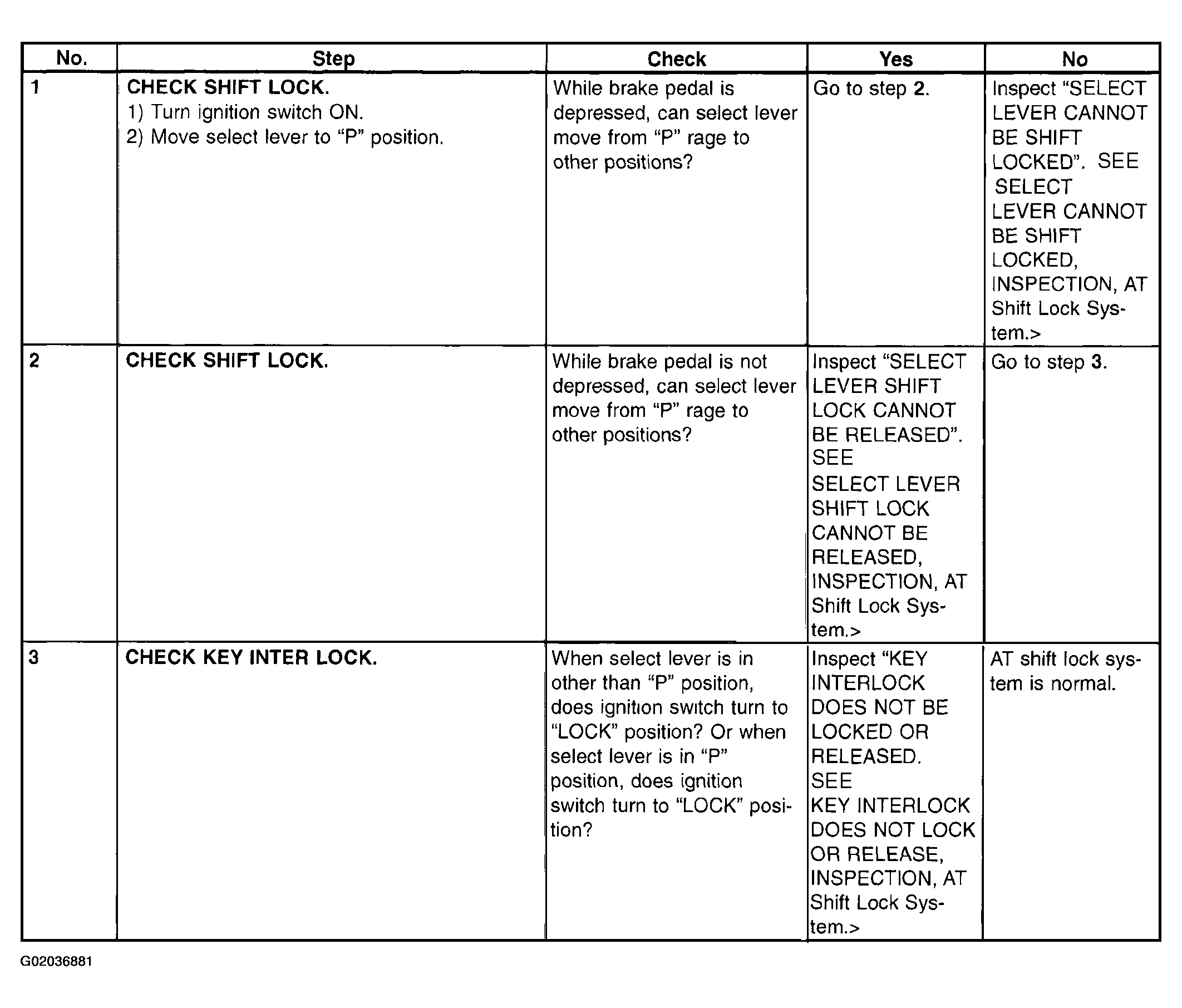

Fig 1: AT Shift Lock System Diagnostic Chart

G02036881
