Section 10 (Lubrication System (3.0L))
>>
Oil Pressure System
>>
Schematic
Oil Pressure System: Schematic
WARNING:
This page is about a different variant/trim than selected.

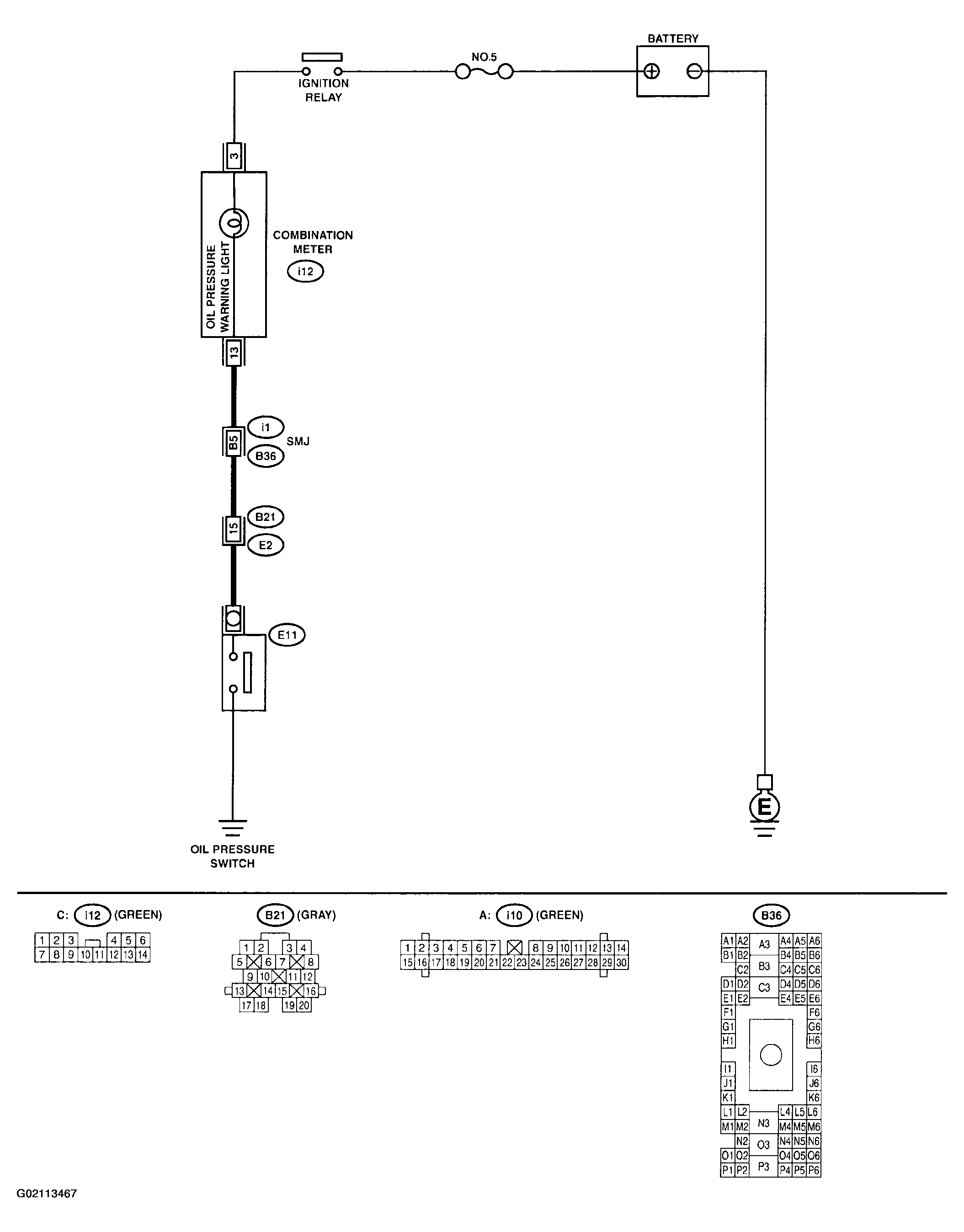

Fig 1: Oil Pressure System Schematic
