Read Current Data

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
  2. On the << System Selection Menu >> display screen, select the {Transmission Control System} and press the [YES] key.
  3. Press the [YES] key after displayed the information of transmission type.
  4. On the << Transmission Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
  5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
  6. Using the scroll key, move the display screen up or down until the desired data is shown.

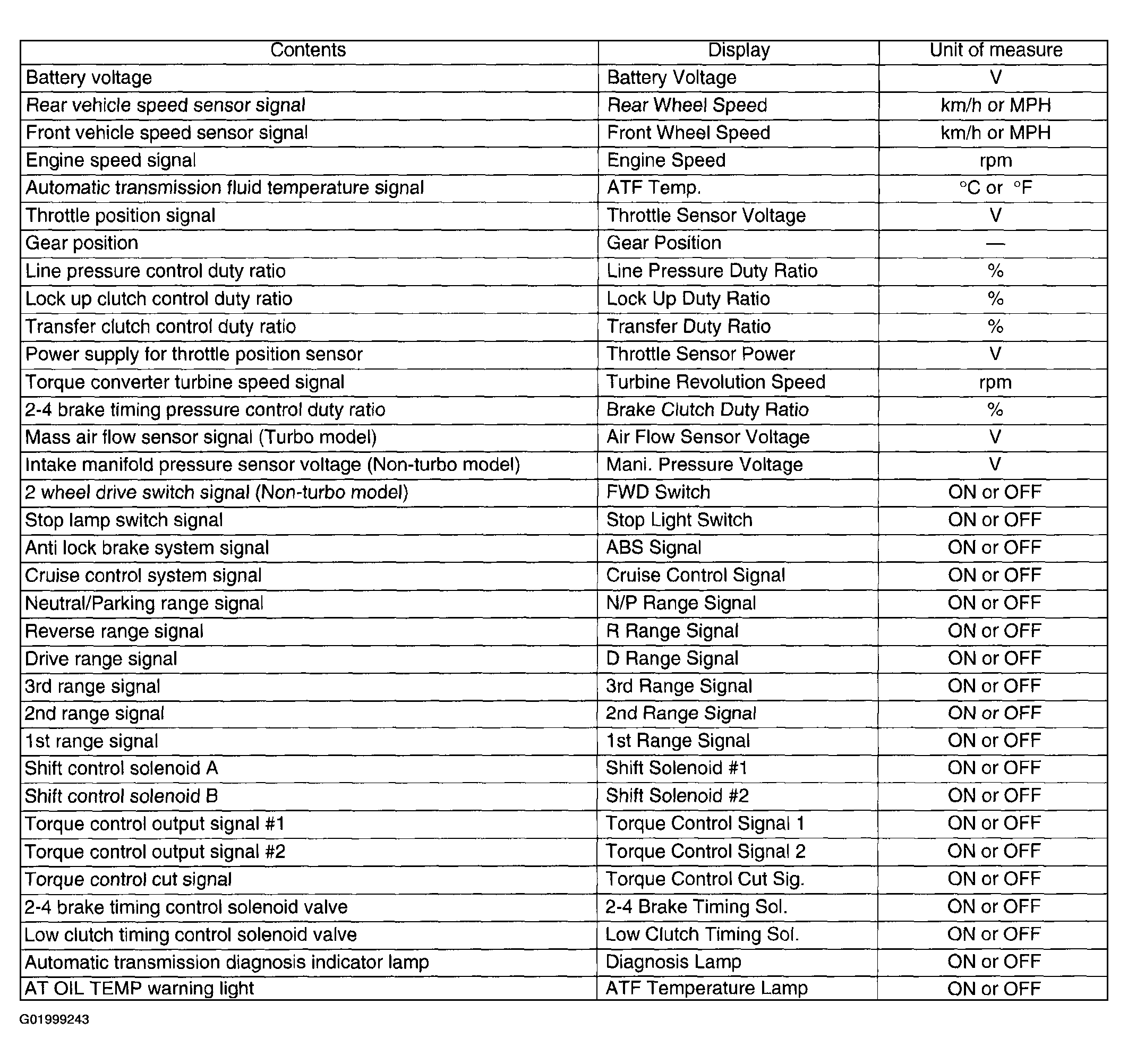

    • A list of the support data is shown in the following table.
    Fig 1: Moving Display Screen Up Or Down For Desired Data
    G01999243Courtesy of SUBARU OF AMERICA, INC.
    NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
