Special Tools

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

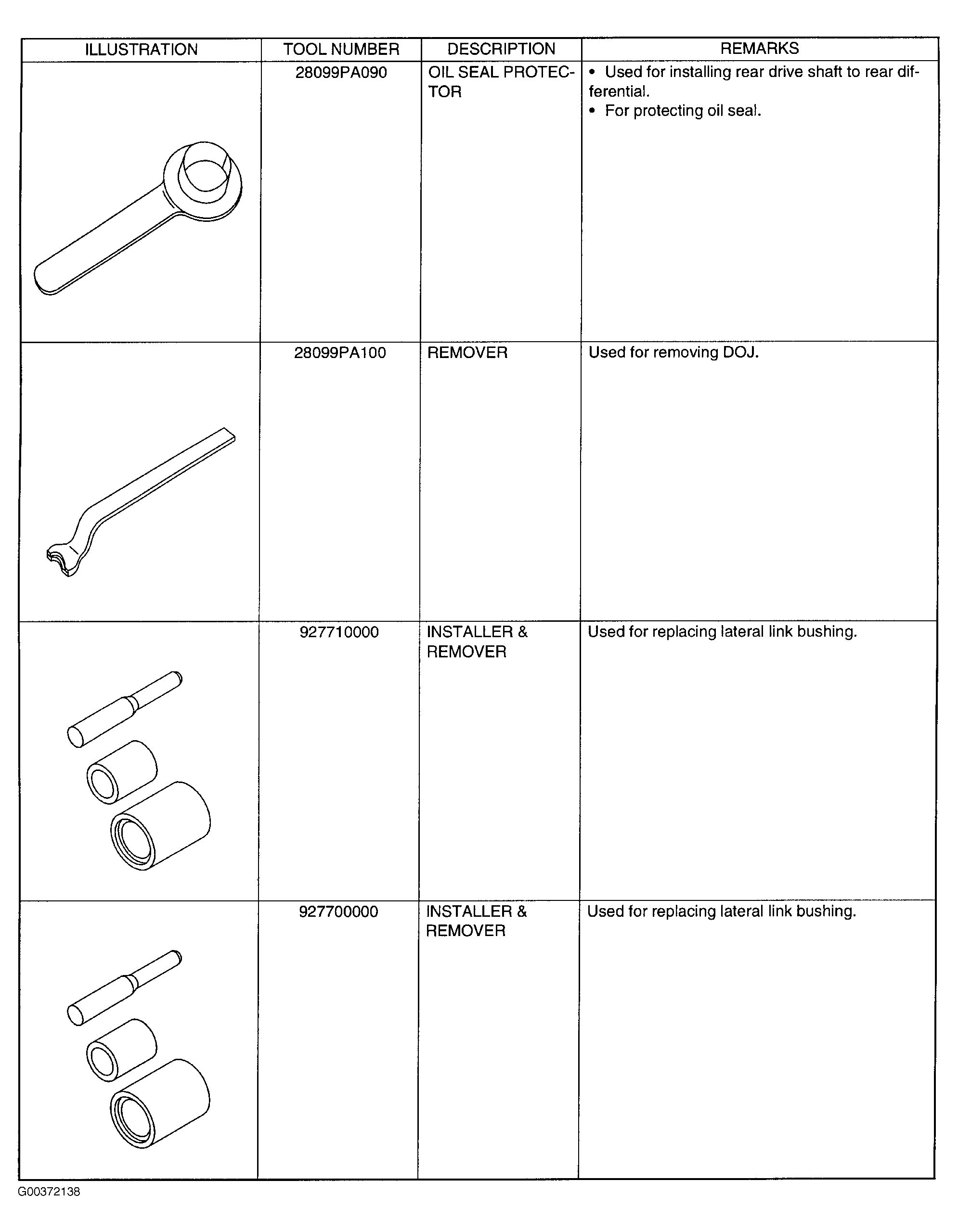

Fig 1: Special Tools (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

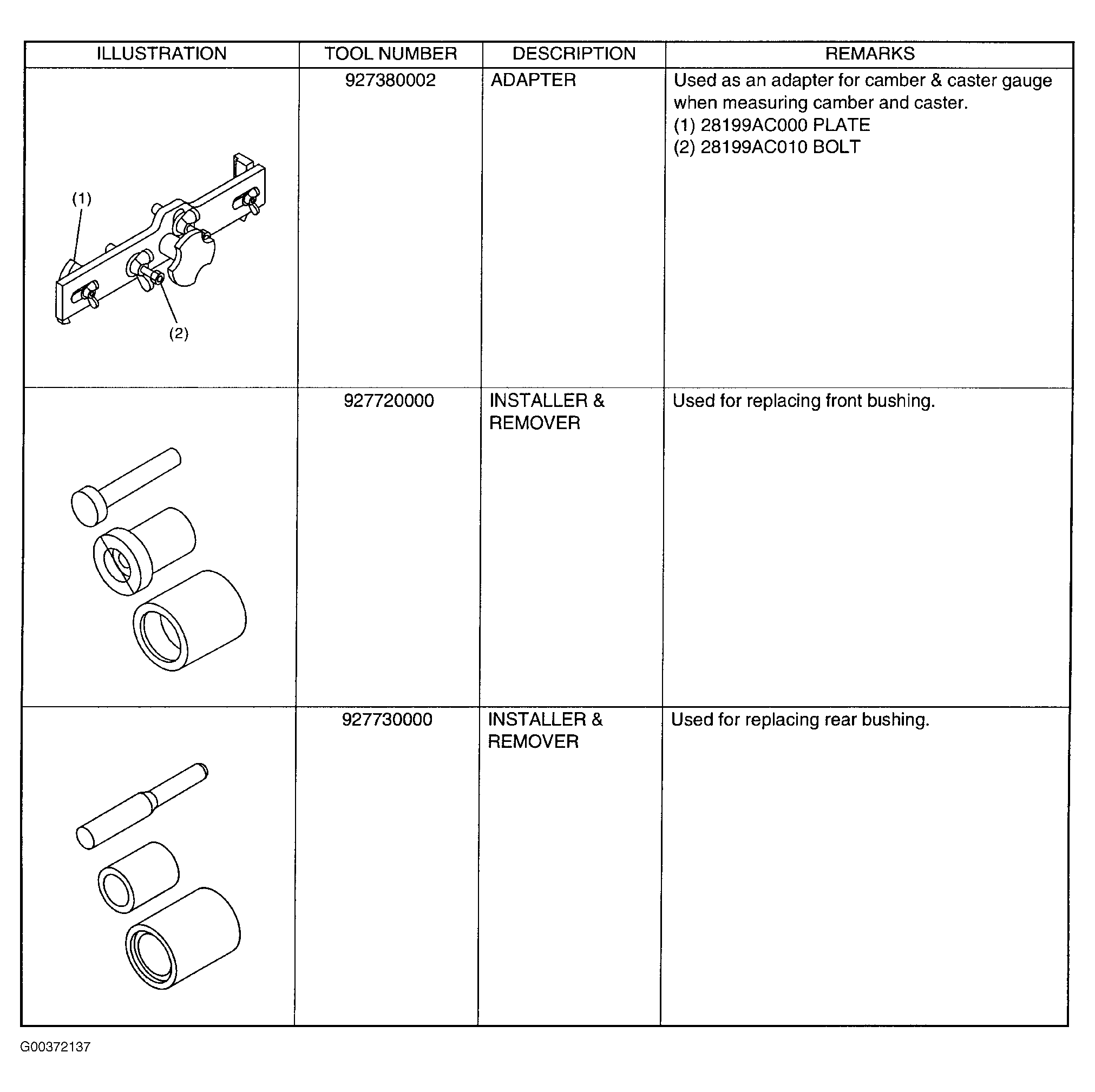

Fig 2: Special Tools (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

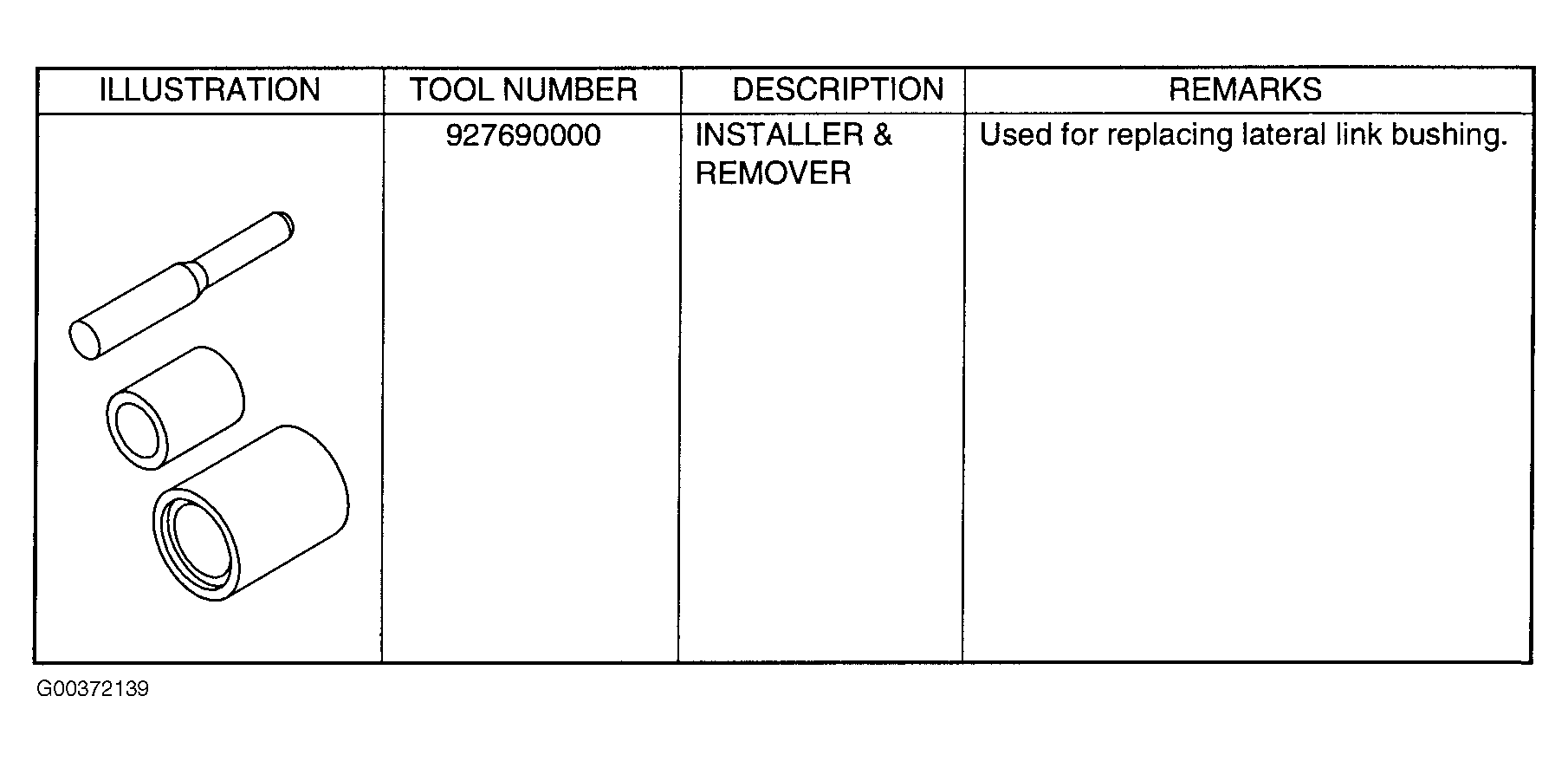

Fig 3: Special Tools (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
