Section 85 (Rear Suspension): Description

WARNING: This page is about a different car, the 2003 Subaru Impreza and 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

For description and component location, see Fig 1.

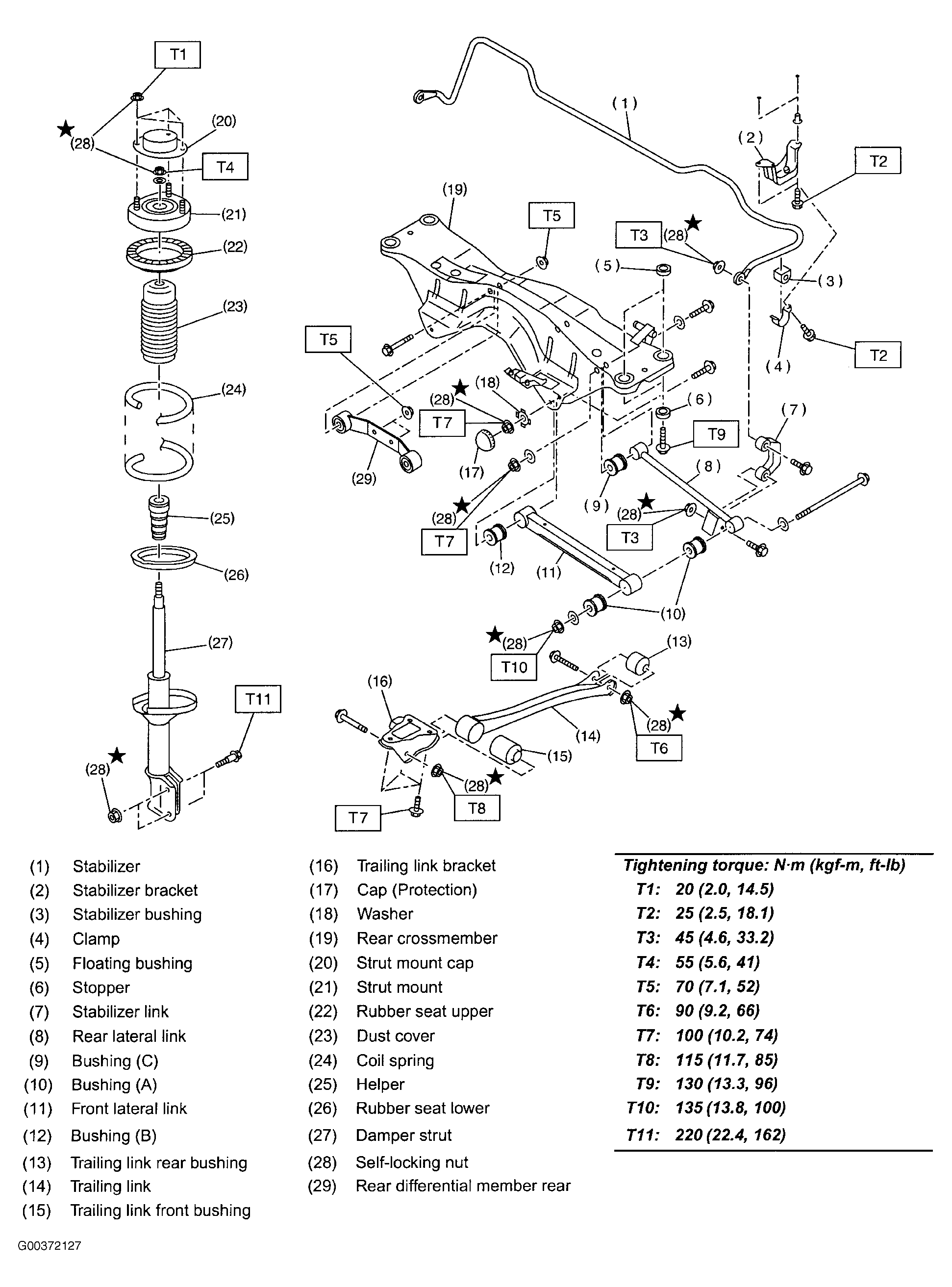

Fig 1: Exploded View Of Rear Suspension
G00372127Courtesy of SUBARU OF AMERICA, INC.
