Rear Sub-Frame: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, 2003 Subaru Baja, 2002 Subaru Outback, and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in reverse order of removal.
  2. For installation and tighten rear differential.
    1. With T-type, see REMOVAL, Rear Differential for T-type .
    2. With VA-type, see REMOVAL, Rear Differential for VA-type .
    NOTE: Check wheel alignment and adjust if necessary.

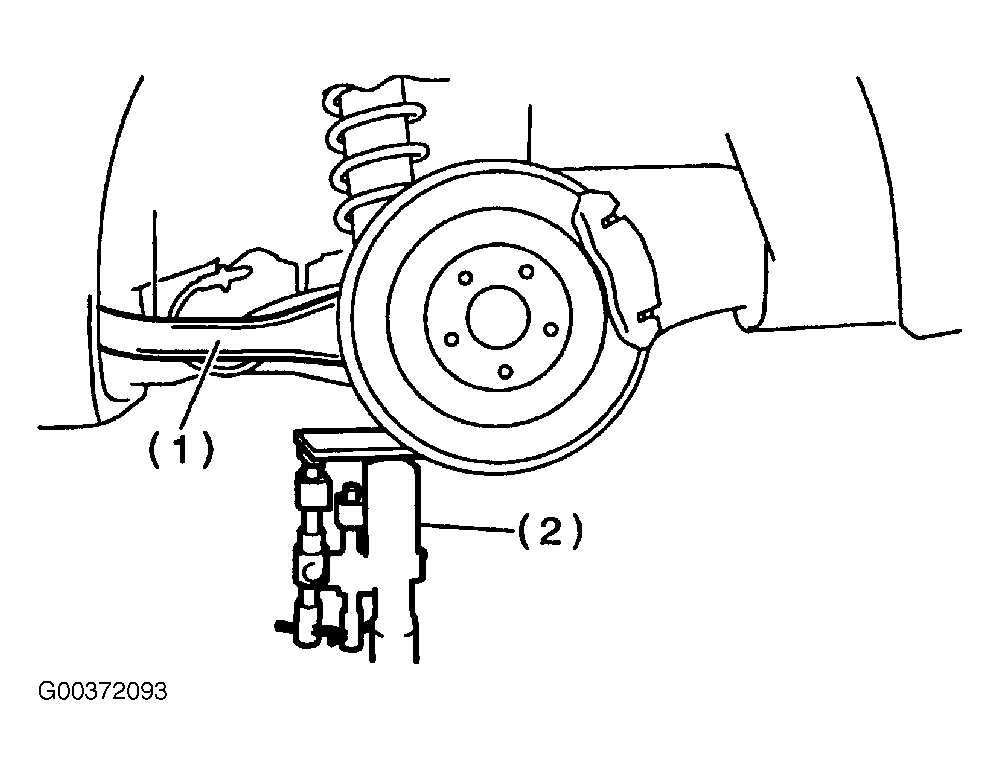

  3. Using transmission jack, support rear arm horizontally and tighten nuts and bolts securing rear arm, link front, link rear, link upper and shock absorber. See Figure.
