Link Front: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, 2003 Subaru Baja, 2002 Subaru Outback, and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal, observing the following instructions.

CAUTION:

Using transmission jack, support rear arm horizontally, install link front and tighten nuts. See Figure.
Install link front with protruded side facing front. See Fig 1.
Replace self-locking nut.

NOTE: Check wheel alignment and adjust if necessary.

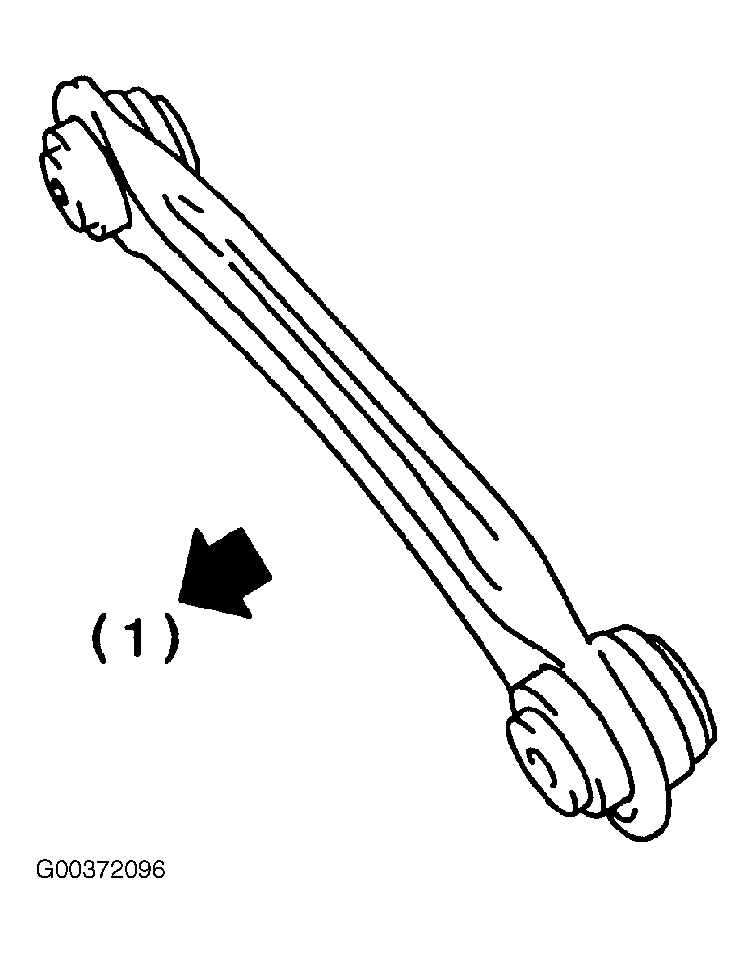

Fig 1: Installing Link Front With Protruded Side Facing Front

Courtesy of SUBARU OF AMERICA, INC.
