Input Shaft Play

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

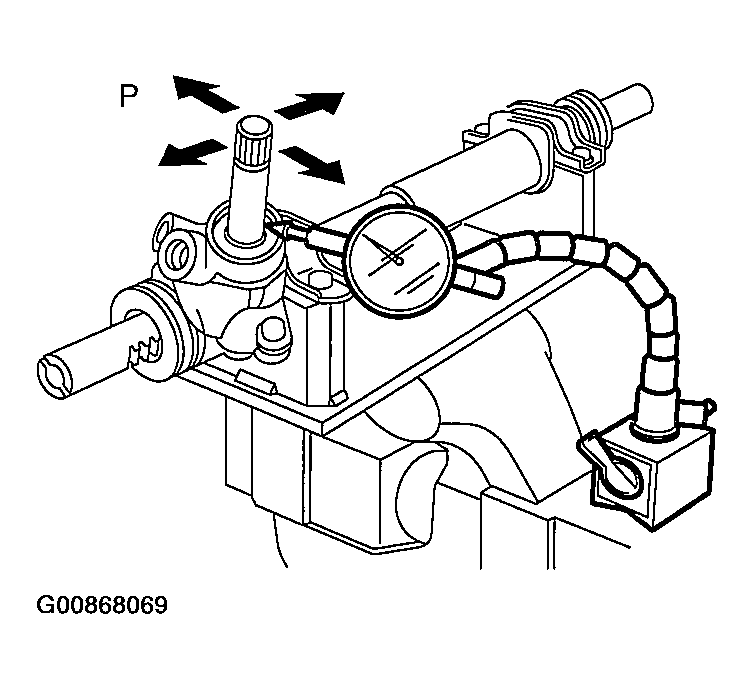

In radial direction:
1. Service limit
  1. 0.18 mm (0.0071 in) or less
2. On condition
  1. P: 98 N (10 kgf, 22 lb)
Fig 1: Measuring Input Shaft Play
Courtesy of SUBARU OF AMERICA, INC.

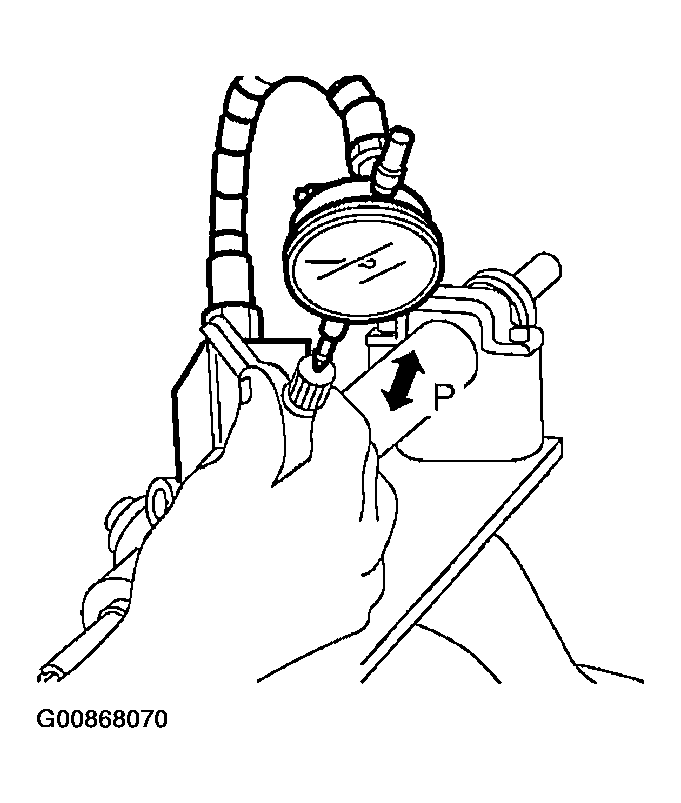

In axial direction:
1. Service limit
  1. 0.5 mm (0.020 in) or less
2. On condition
  1. P: 20-49 N (2-5 kgf, 4-11 lb)
Fig 2: Measuring Input Shaft Play
Courtesy of SUBARU OF AMERICA, INC.
