Steering Gearbox: Inspection: Adjustment

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Adjust front toe.
1. Standard of front toe: IN 3 - OUT 3 mm (IN 0.12 - OUT 0.12 in)

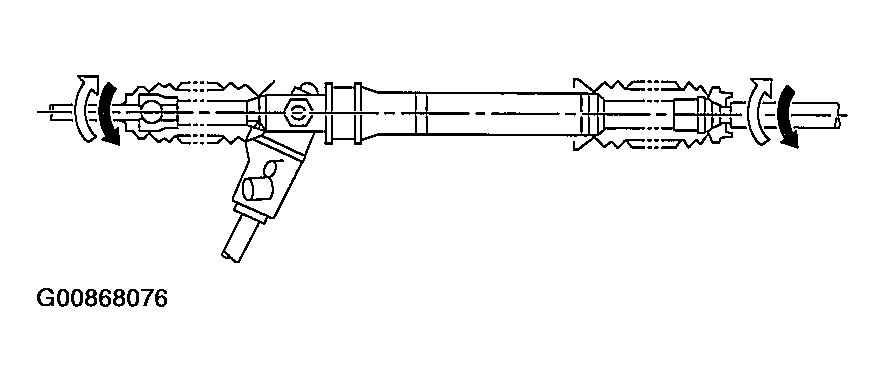

Fig 1: Adjusting Front Toe
Courtesy of SUBARU OF AMERICA, INC.
Adjust steering angle of wheels.
1. Standard of steering angle:

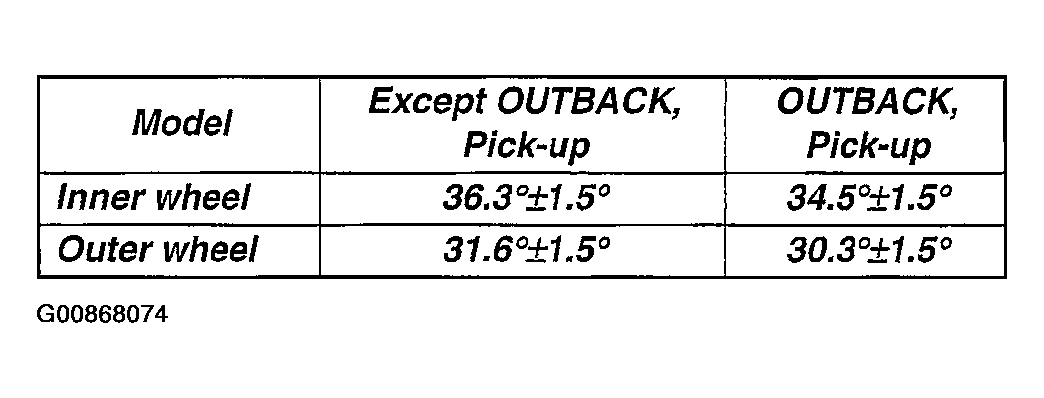

Fig 2: Adjusting Steering Angle Of Wheels
Courtesy of SUBARU OF AMERICA, INC.
If steering wheel spokes are not horizontal when wheels are set in the straight ahead position, an error is more than 5° on the periphery of steering wheel, correctly re-install the steering wheel.

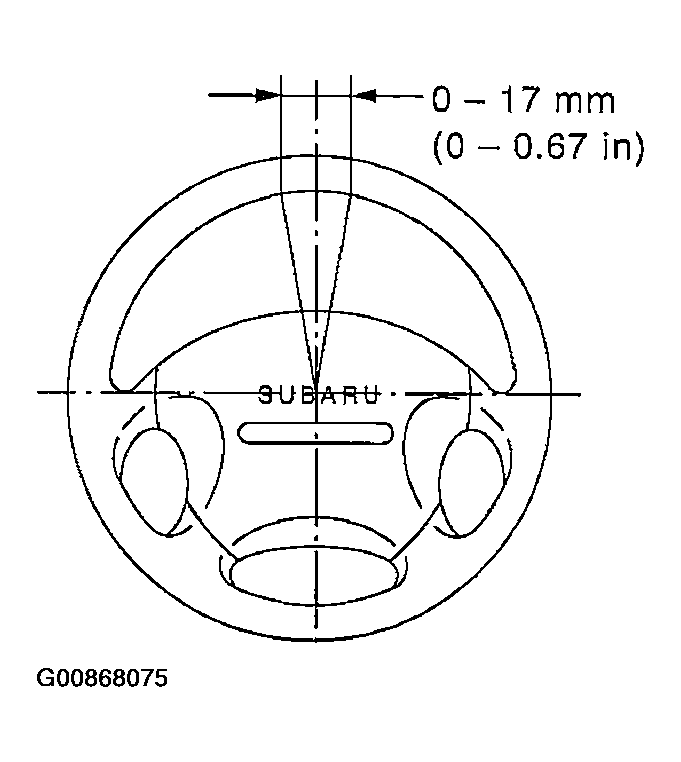

Fig 3: Identifying Steering Wheel Spokes Position
Courtesy of SUBARU OF AMERICA, INC.
If steering wheel spokes are not horizontal with vehicle set in the straight ahead position after this adjustment, correct it by turning the right and left tie-rods in the same direction by the same turns.

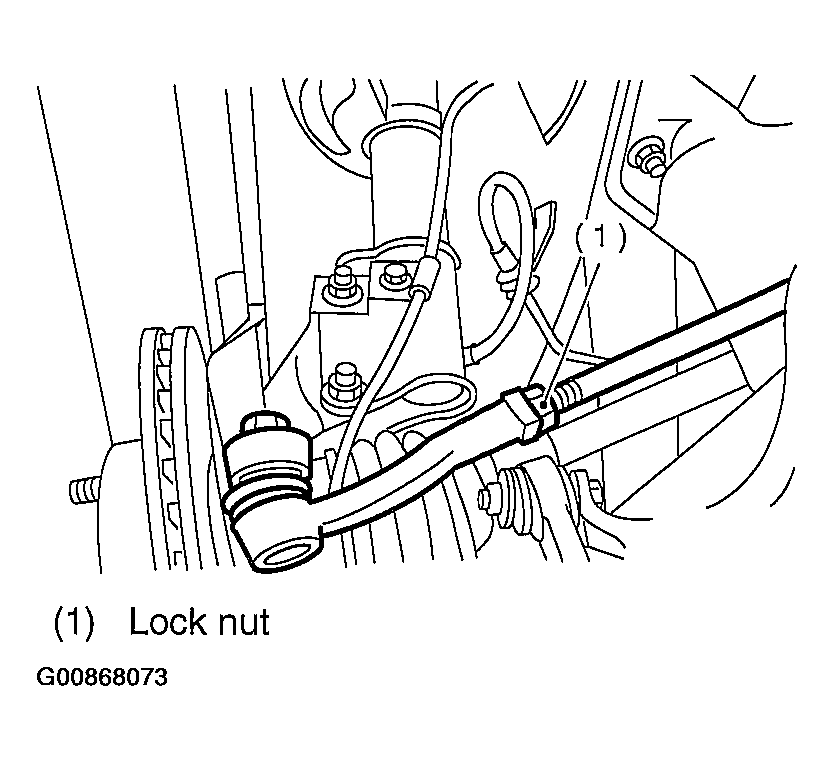

Fig 4: Turning Right & Left Tie-Rods
Courtesy of SUBARU OF AMERICA, INC.
