3.0 L Model

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ground cable from battery.
  2. Remove pulley belt cover.
  3. Remove V-belt.
  4. Disconnect connector from power steering pressure switch.
  5. Remove tensioner adjuster.
  6. Disconnect pressure hose and suction hose from oil pump.
    CAUTION:
    • Do not allow fluid from the hose end to come into contact with pulley belt.
    • To prevent foreign matter from entering the hose, cover the open ends of them with a clean cloth.

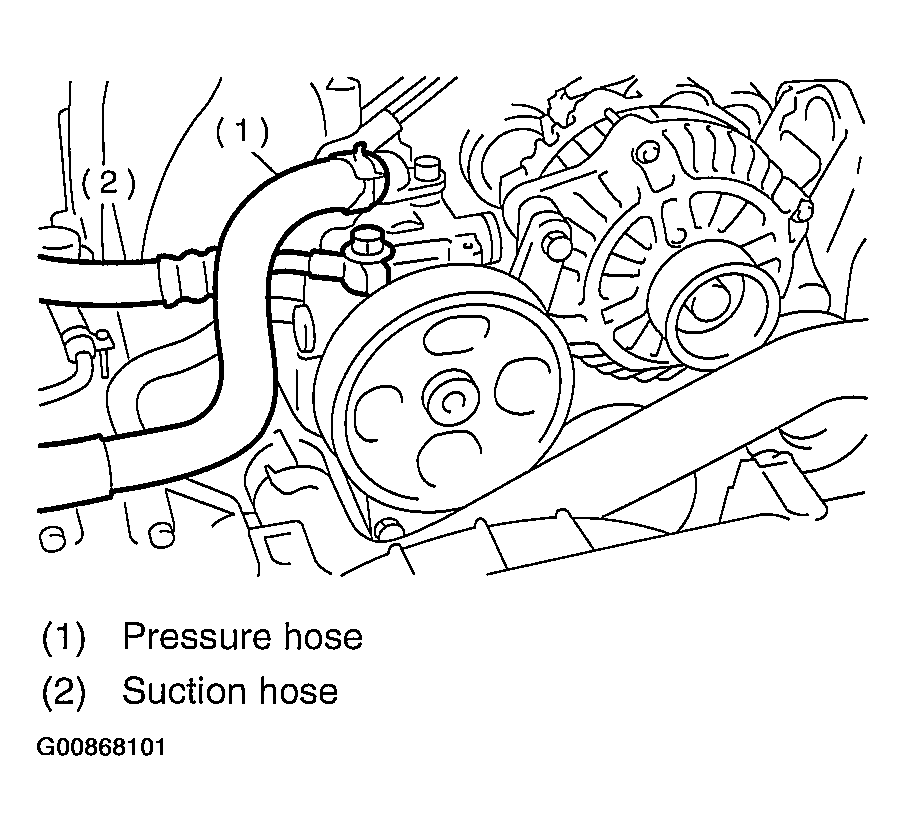

    Fig 1: Locating Pressure Hose
    G00868101Courtesy of SUBARU OF AMERICA, INC.
  7. Remove bolts, which install power steering pump bracket.
  8. Place oil pump bracket in a vise, remove two bolts from the front side of oil pump.
    CAUTION: Do not place oil pump bracket directly in the vise; use soft pads and hold oil pump lightly to protect the pump.

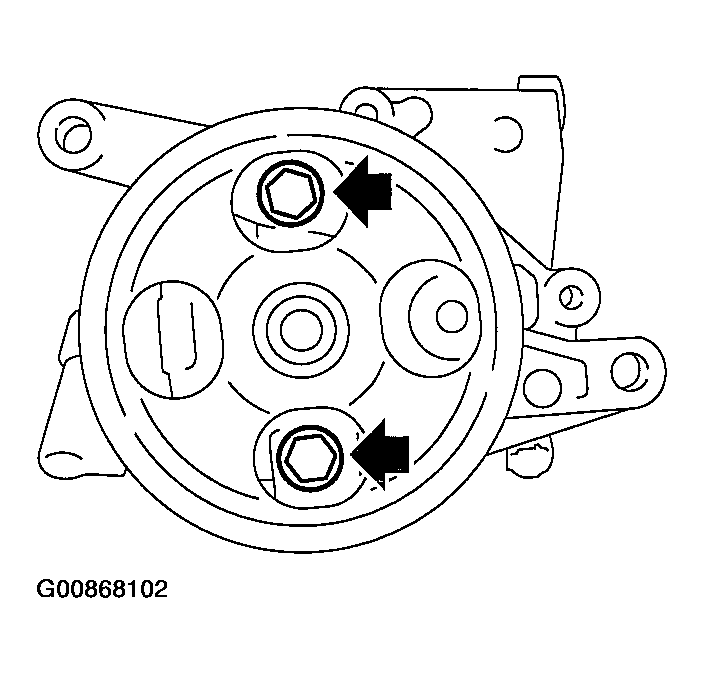

    Fig 2: Identifying Bolts
    G00868102Courtesy of SUBARU OF AMERICA, INC.
  9. Remove bolt from the rear side of oil pump.

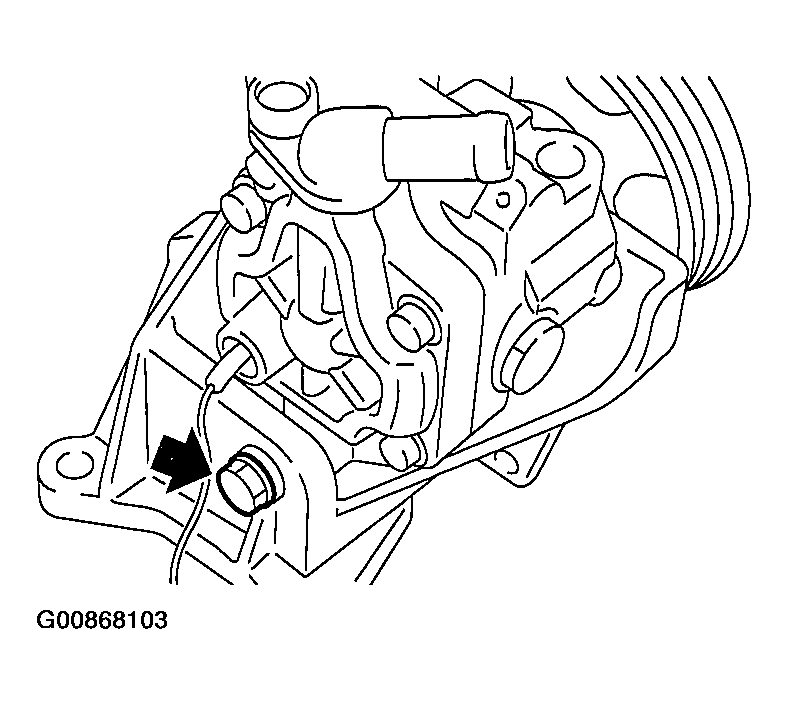

    Fig 3: Removing Bolt From Rear Side Of Oil Pump
    G00868103Courtesy of SUBARU OF AMERICA, INC.
  10. Remove oil pump from bracket.
