Rear Spoiler: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Open the trunk lid.
Remove the electrical connector (A) of high mount stop light.

Fig 1: Removing Electrical Connector Of High Mount Stop Light
Courtesy of SUBARU OF AMERICA, INC.
Loosen the mounting nut of rear spoiler to remove rear spoiler.

CAUTION:

When removing the nut, do not drop it into trunk lid.
Pay attention to avoid damage during removal or installation.

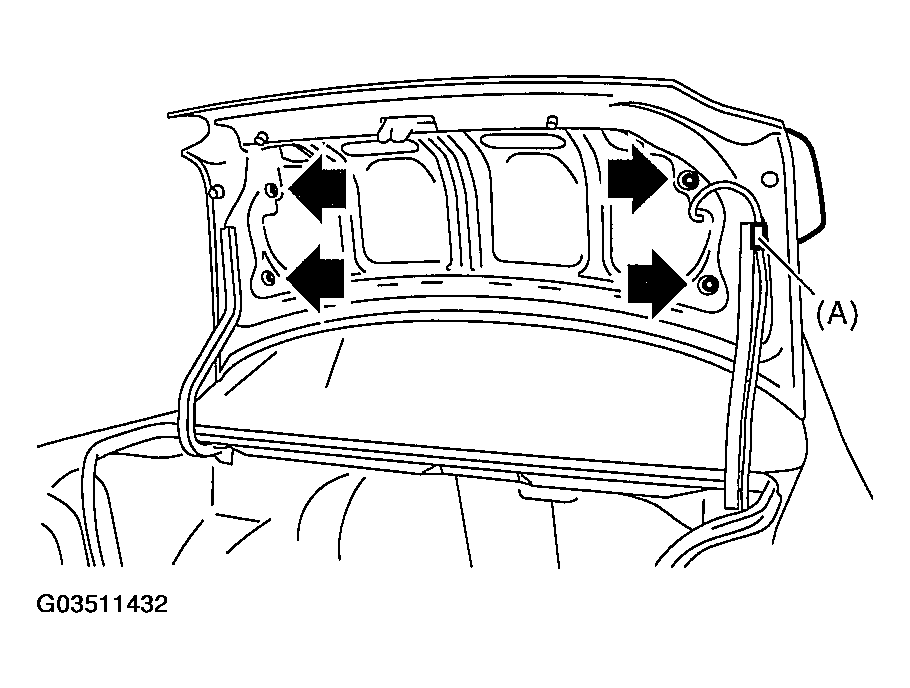

Small-sized rear spoiler: Four tightening positions, two clips

Fig 2: Removing Rear Spoiler (Smaller Size)

Courtesy of SUBARU OF AMERICA, INC.

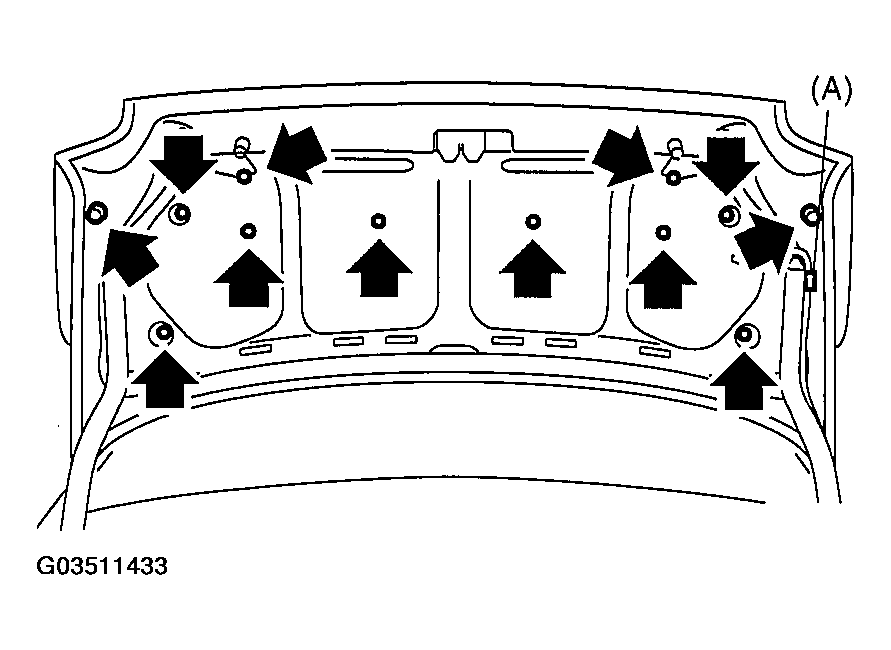

Large-sized rear spoiler: Twelve tightening positions, four clips

Fig 3: Removing Rear Spoiler (Larger Size)

Courtesy of SUBARU OF AMERICA, INC.
