Coating Method For Pp Bumper

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

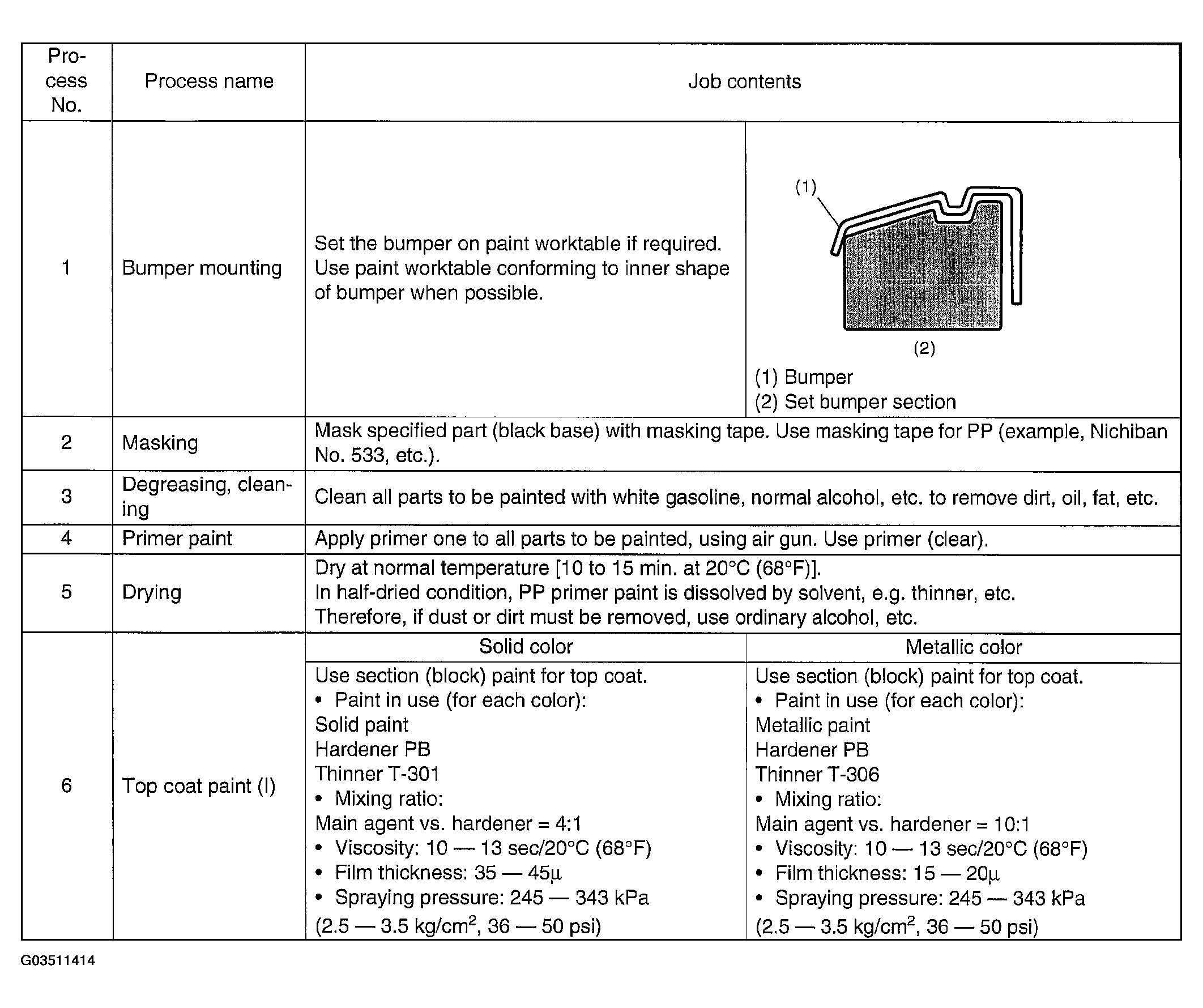

Fig 1: PP Bumper Coating Method Table

Courtesy of SUBARU OF AMERICA, INC.

PROCESS JOB CONTENT REFERENCE

Process No.	Process name	Job contents
7	Drying	Not required.	Dry to normal temperature [10 min. or more at 20°C (68°F)]. In half-dried condition, avoid dust, dirt.
8	Top cost paint(II)	Not required.	Apply a clear coat to parts with tip coat paint (I), three times, at 5-7 minutes intervals. Paint in use: Metallic paint Hardener PB Thinner T-301 Mixing ratio: Clear vs. hardener = 6:1 Viscosity: 14 - 16 sec/20°C (68°F) Film thickness: 25 - 30mu Spraying pressure: 245 - 343 kPa (2.5 - 3.5 kg/cm² , 36 - 50 psi)
9	Drying	60°C (140°F), 60 min. or 80°C (176°F), 30 min. If higher than 80°C (176°F), PP may be deformed. Keep maximum temperature of 80°C (176°F).
10	Inspection	Paint check.
11	Masking removal	Remove the masking in process No. 2
