Cowl Panel: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Open the front hood.
Remove the wiper arm. Refer to REMOVAL , Front Wiper Arm.
Remove the front panel seal.

Fig 1: Removing Front Panel Seal
Courtesy of SUBARU OF AMERICA, INC.
Disengage the clips (A) to remove the cowl panel.

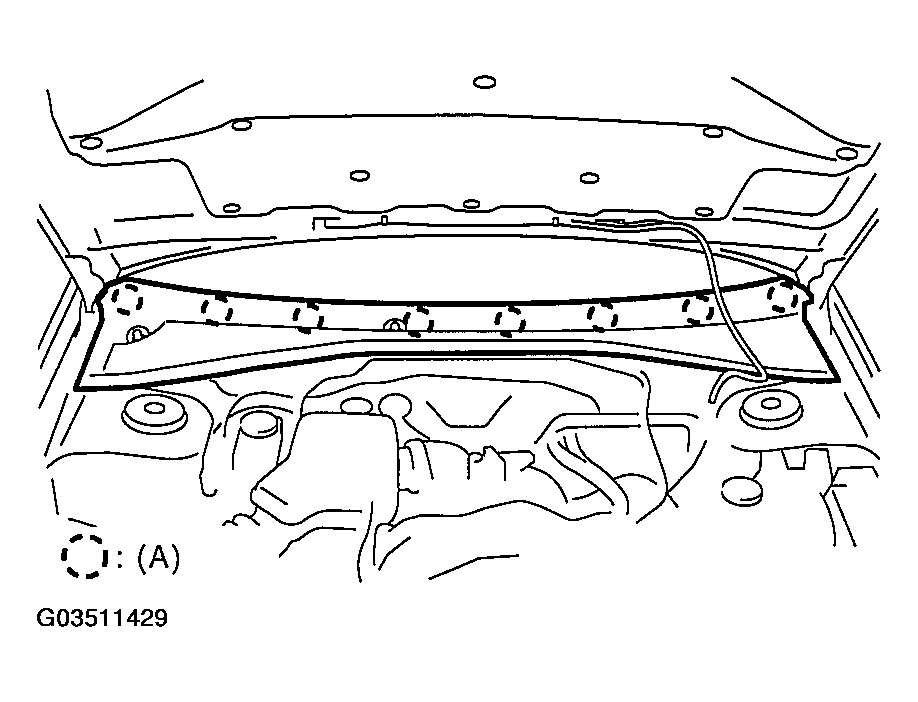

Fig 2: Disengaging Clips & Cowl Panel
Courtesy of SUBARU OF AMERICA, INC.
