Section 241 (Exterior / Interior Trim): Spoiler: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open trunk lid.
  2. Remove electrical connector (a) of high-mounted stop light.
  3. Remove mounting nut of rear spoiler to remove rear spoiler.
CAUTION:
  • When removing nut, do not drop it into trunk lid.
  • Pay attention to avoid damage during removal or installation.

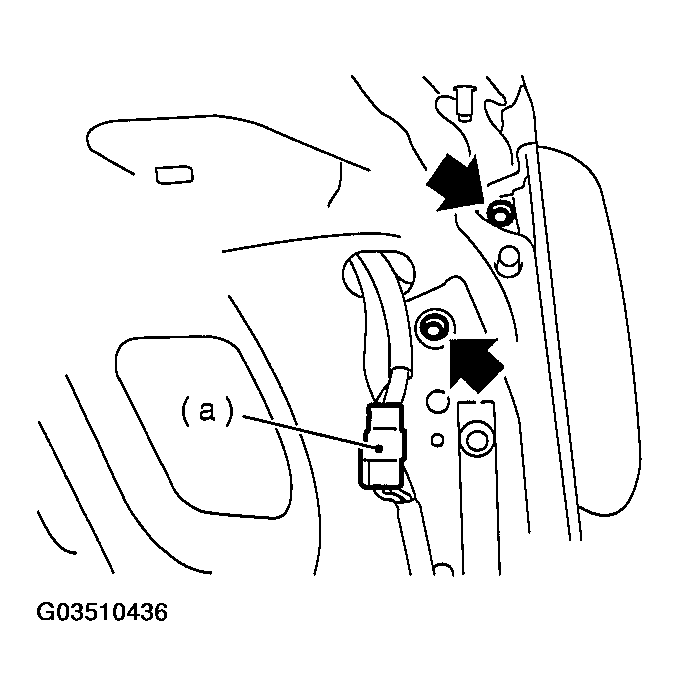

    Fig 1: Removing Electrical Connector
    G03510436Courtesy of SUBARU OF AMERICA, INC.
