Section 241 (Exterior / Interior Trim): Protector: Installation
WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

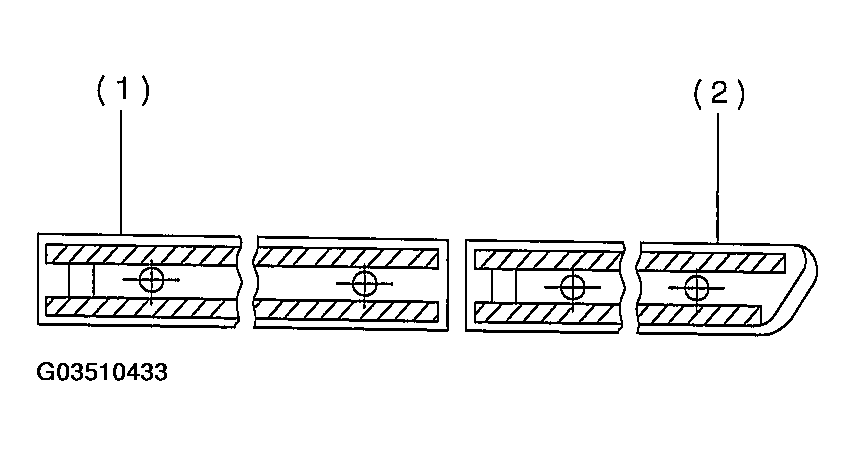

- Apply primer to original side protector (if used) and attach two-sided tape to side protectors shown.
Two-sided tape:
Thickness; 1.2 mm (0.047 in)
Width; 5 mm (0.20 in)
Recommended primer:
SUMITOMO 3MK-500 or equivalent
Recommended two-sided tape:
SUMITOMO 3M4210 or equivalent
- Using an infrared lamp, heat body panel to 40 to 60°C (104 to 140°F) and rear surface of side protector to 20 to 30°C (68 to 86°F).
- Remove tack paper from two-sided paper. While aligning clips with holes in body panel, attach two-sided tape to side protector and body panel with a force of more than 49 N (5 kgf, 11 lb) with roller. Do not allow air to enter mating surface of the two.
CAUTION:
- To maintain adhesive power, do not wash the vehicle for 24 hours after tape application.
- Push clip in securely using hands.
(To prevent deformation, do not use excessive force.)
