Instrument Panel Assembly: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION:

Be careful not to snag the harness.
Make sure to connect harness connector.
Take care not to scratch the instrument panel and related parts.

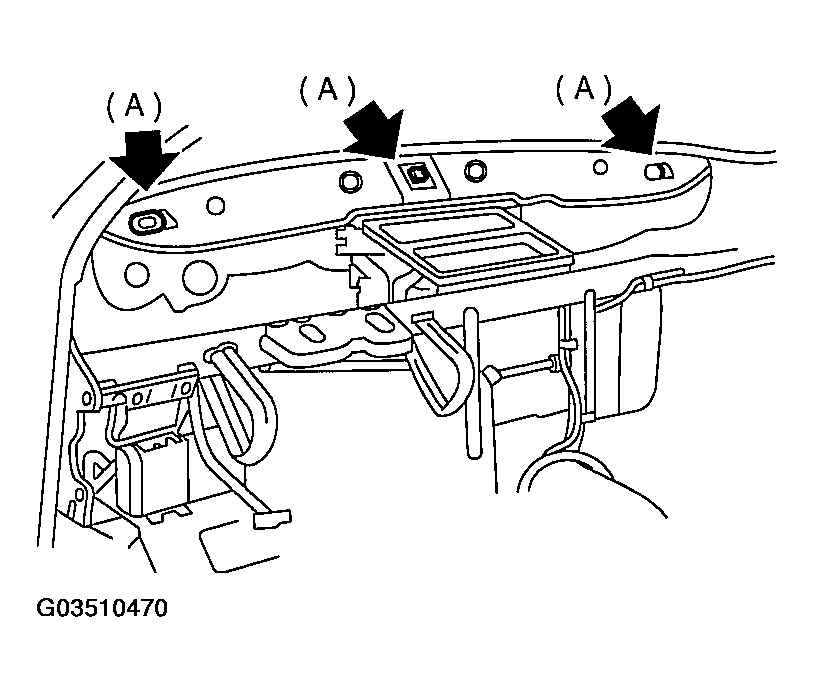

NOTE: When setting the instrument panel into position, push the three hooks into grommet (A) on the body panel.

Fig 1: Pushing Three Hooks Into Grommet On Body Panel

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to COMPONENT in General Description. Refer to INSTRUMENT PANEL , COMPONENT, General Description.
