Back Panel Tray: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cargo bed side tray. Refer to REMOVAL , Cargo Bed Side Tray.
  2. Remove cargo bed side molding. Refer to REMOVAL , Cargo Bed Side Molding.
  3. Remove cargo bed C pillar molding. Refer to REMOVAL , Cargo Bed C Pillar Molding.
  4. Remove screw and back panel tray.

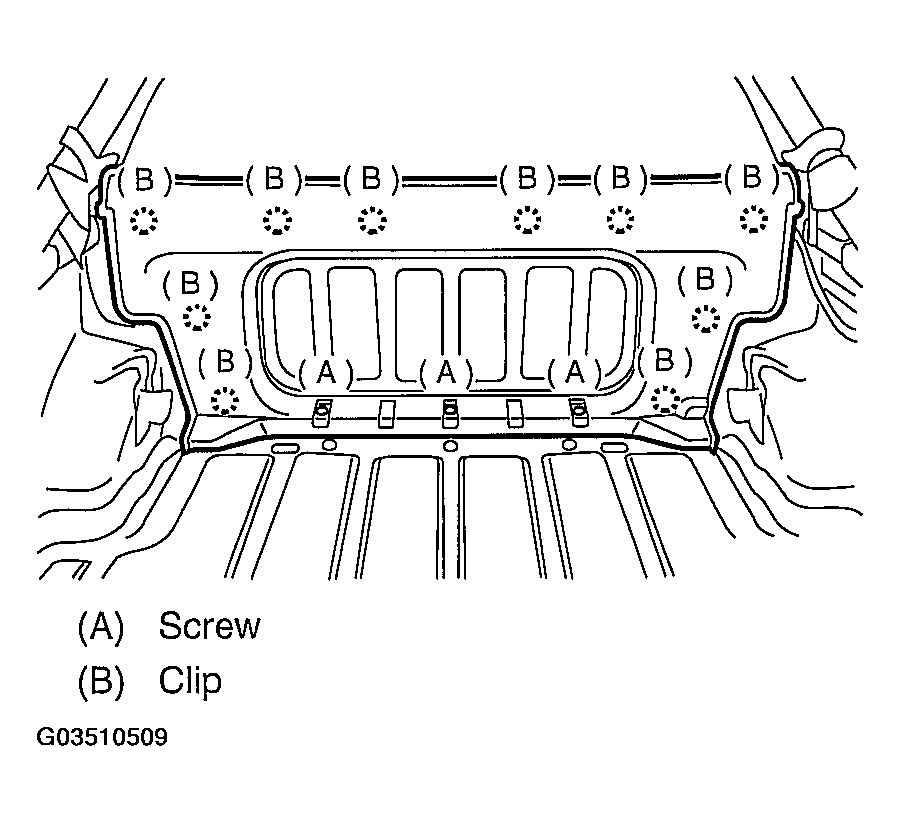

    Fig 1: Removing Screw & Back Panel Tray
    G03510509Courtesy of SUBARU OF AMERICA, INC.
NOTE: Do not reuse the removed clips; use new ones.
