Section 240 (Instrumentation - Driver Info): Tachometer: Inspection

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Measure tachometer resistance.

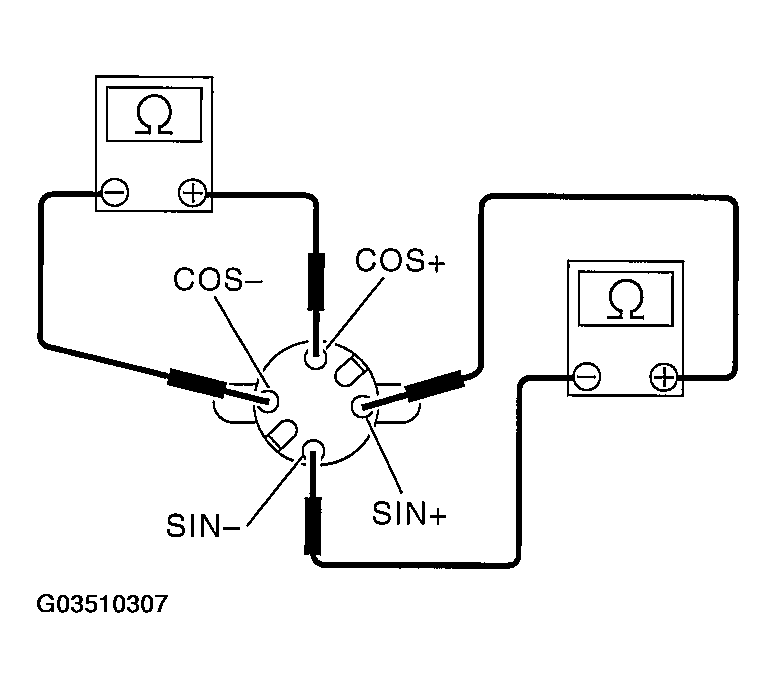

Fig 1: Measuring Tachometer Resistance

Courtesy of SUBARU OF AMERICA, INC.

RESISTANCE SPECIFICATION

Terminal	Resistance
Terminals SIN+ and SIN-	200+/-8 ohm
Terminals COS+ and COS-	200+/-8 ohm

If NG, replace tachometer and water temperature gauge assembly.

If OK, replace combination meter printed circuit.
