Combination Meter Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Set tilt steering at the lowest position.
  3. Disconnect each electrical connector to remove front cover (A) and switch panel (B).
  4. Loosen screws (C) to remove center panel (D).
  5. Remove meter visor (E).

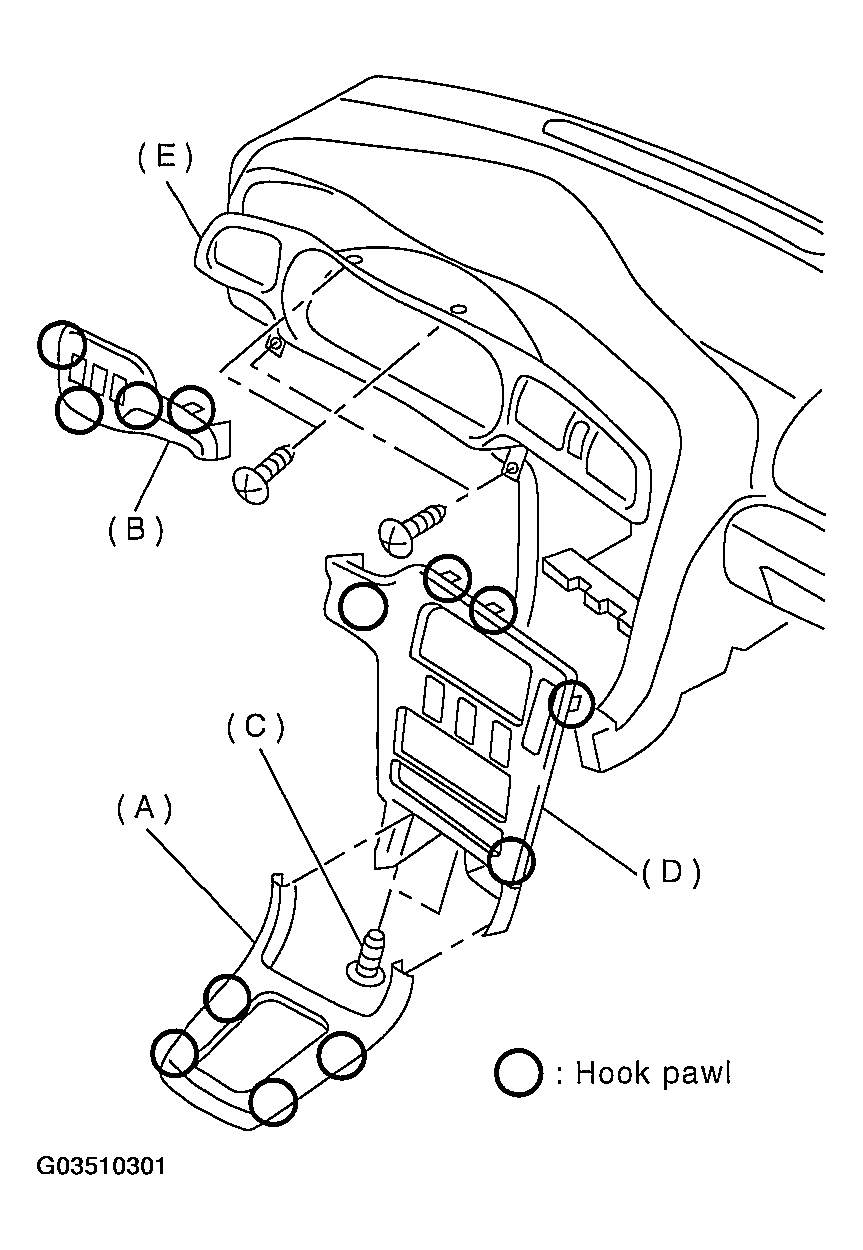

    Fig 1: Removing Meter Visor
    G03510301Courtesy of SUBARU OF AMERICA, INC.
  6. Remove screws of combination meter to pull out the meter toward you.
  7. Remove connector in the upper area of combination meter to remove meter.
    Fig 2: Removing Connector
    G03510302Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
  • Be careful not to damage meter or instrument panel.
  • Pay particular attention to avoid damaging meter glass.
