AT Shift Lock Solenoid and "P" Range Switch: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Disconnect the connector.
Remove the grip.
Remove the indicator bulb from indicator cover.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator cover.

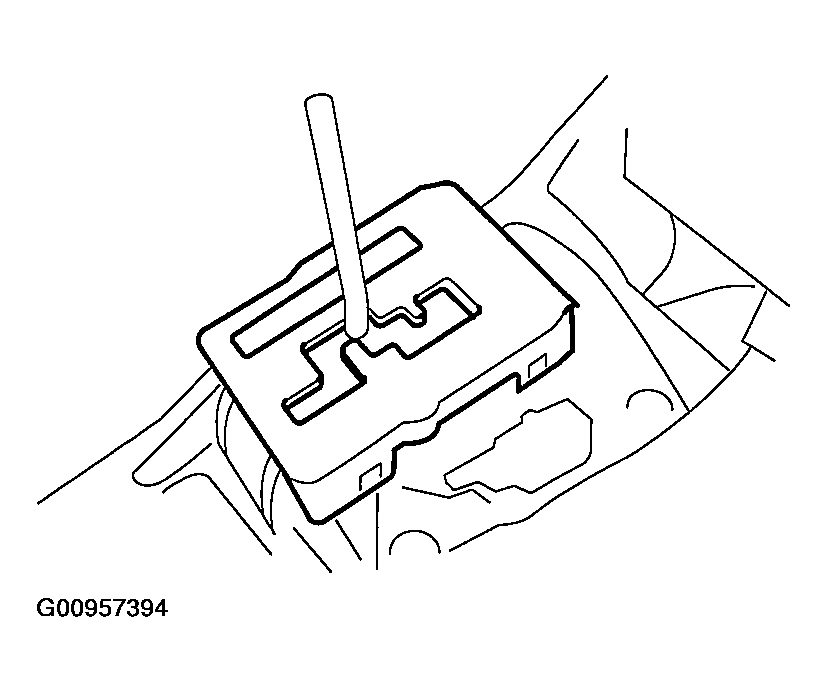

Fig 2: Removing Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind.
Remove the cushion.
Remove the clip, and then remove the "P" ange switch.

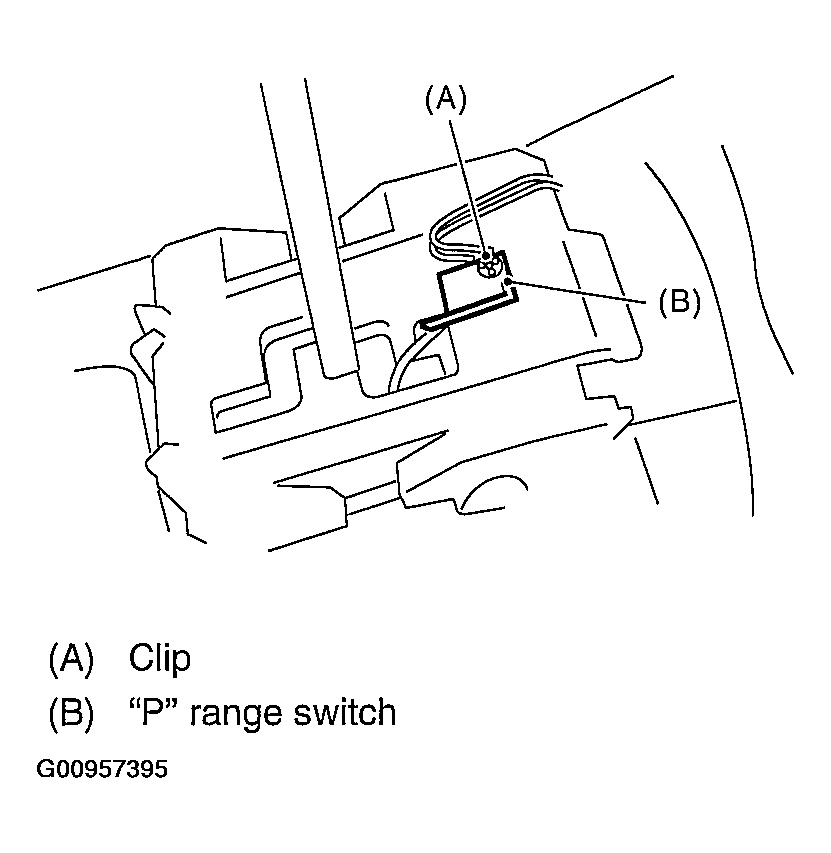

Fig 3: Removing Clip, & "P" Ange Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp, and then remove the shift lock solenoid.

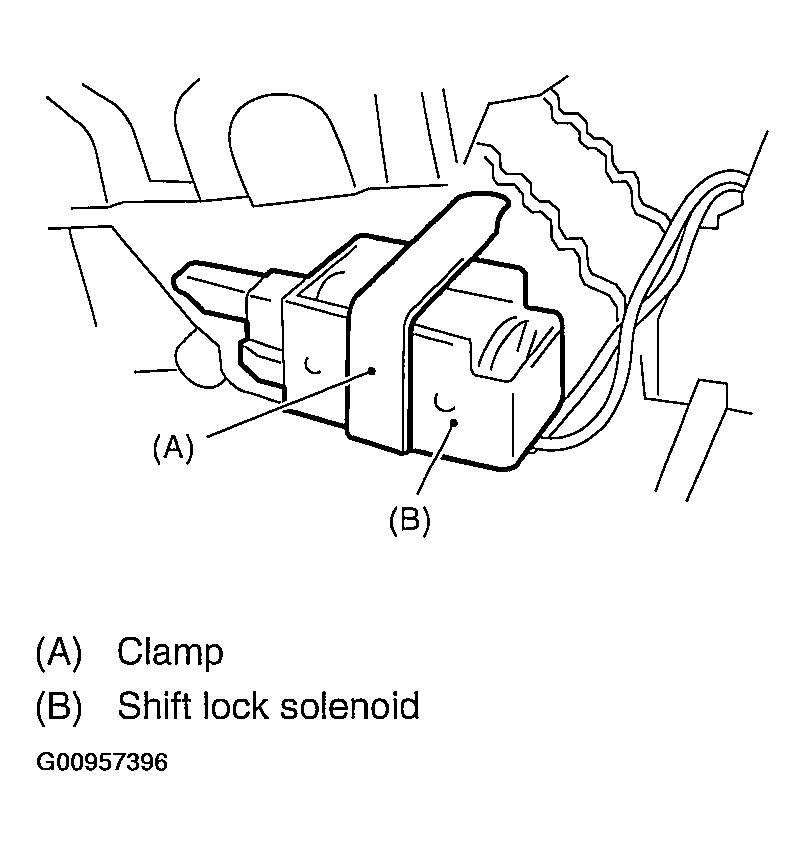

Fig 4: Removing Clamp & Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
