Section 214 (Engine Cooling System (H4DOTC)): Thermostat: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the thermostat in water pump, and then install the thermostat cover together with a gasket.
NOTE:
- When reinstalling the thermostat, use a new gasket.
- The thermostat must be installed with the jiggle pin (A) facing to front side.
Tightening torque:

6.5 N.m (0.65 kgf-m, 4.7 ft-lb)

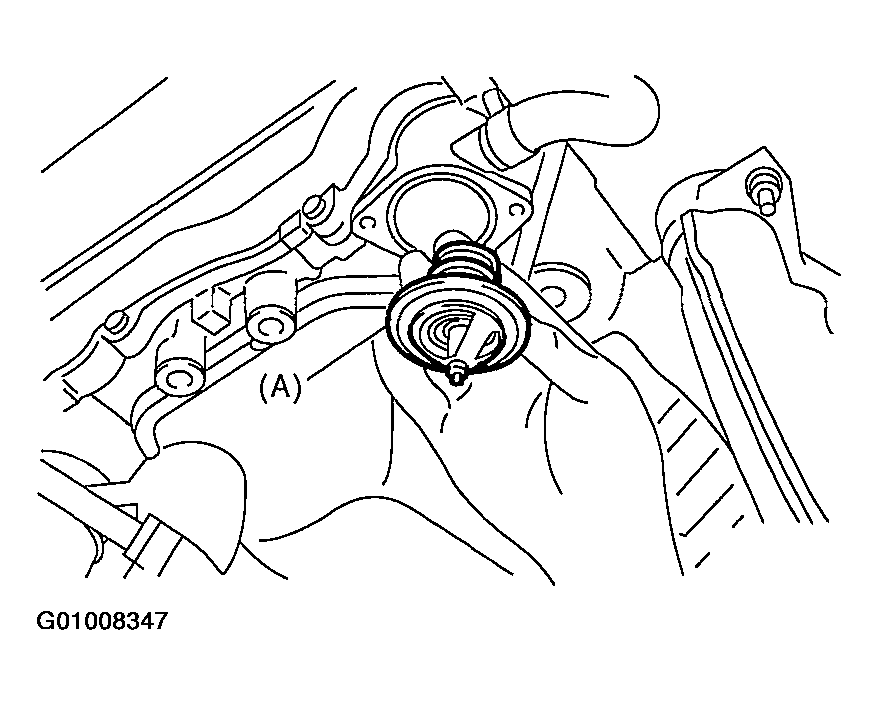

Fig 1: Installing Thermostat
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT . >
