Section 214 (Engine Cooling System (H4DOTC)): Radiator: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The radiator is pressurized. Wait until the engine cools down before working on the radiator.

Set the vehicle on a lift.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Drain the engine coolant completely. < Ref. to DRAINING OF ENGINE COOLANT . >

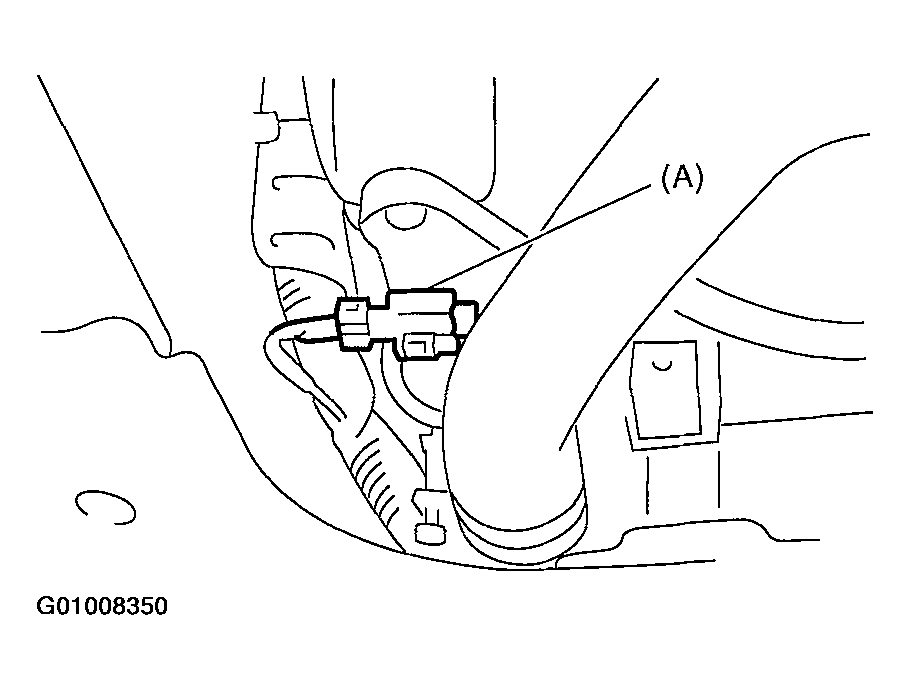

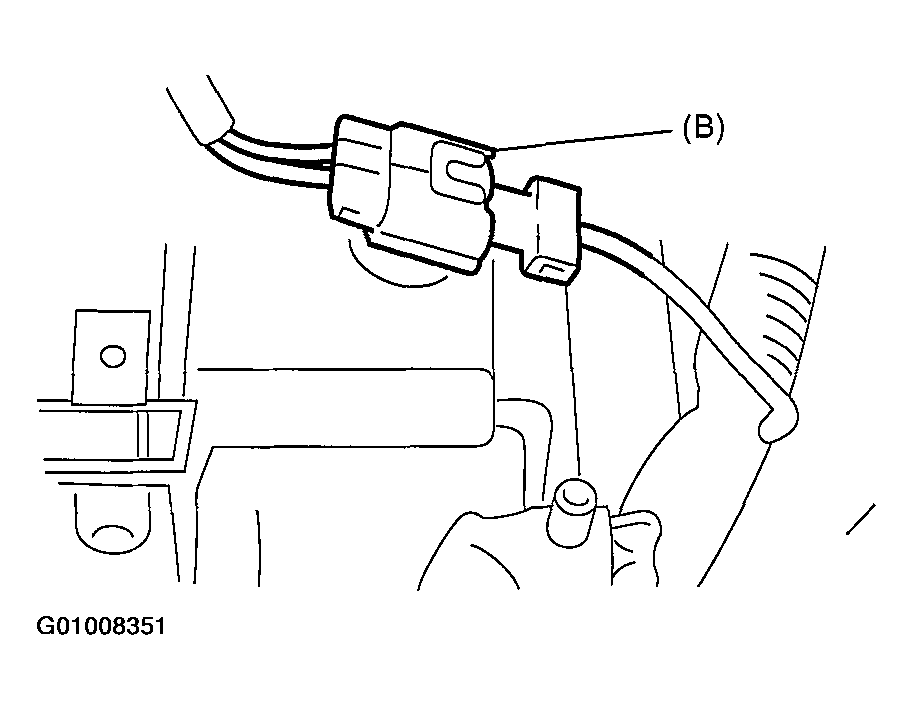

Disconnect the connectors of radiator main fan motor (A) and sub fan motor (B).

Fig 2: Disconnecting Connector Of Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Disconnecting Connector Of Radiator Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ATF cooler hose from ATF pipe.
(AT model)

Plug the openings in the hose and radiator with caps in order to prevent ATF from leaking.

Fig 4: Disconnecting ATF Cooler Hose From ATF Pipe
Courtesy of SUBARU OF AMERICA, INC.

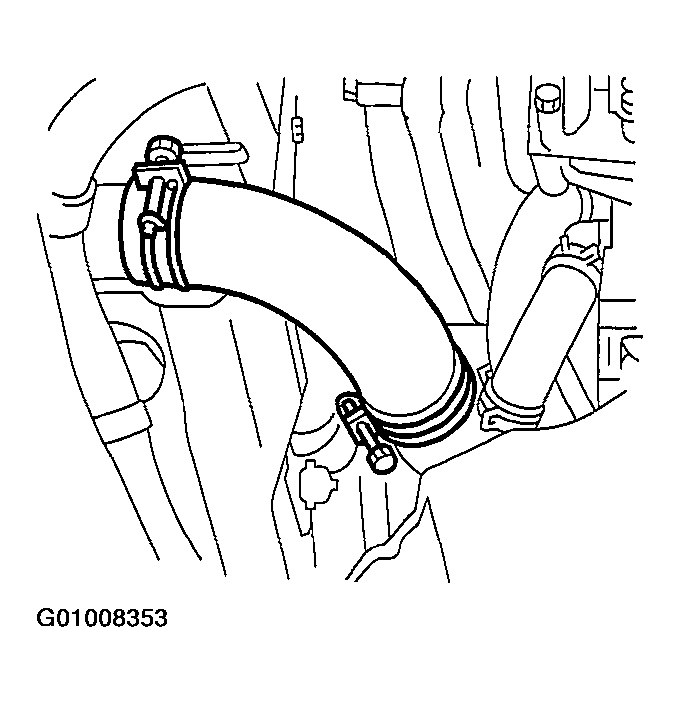

Disconnect the radiator outlet hose from thermostat cover.

Fig 5: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle

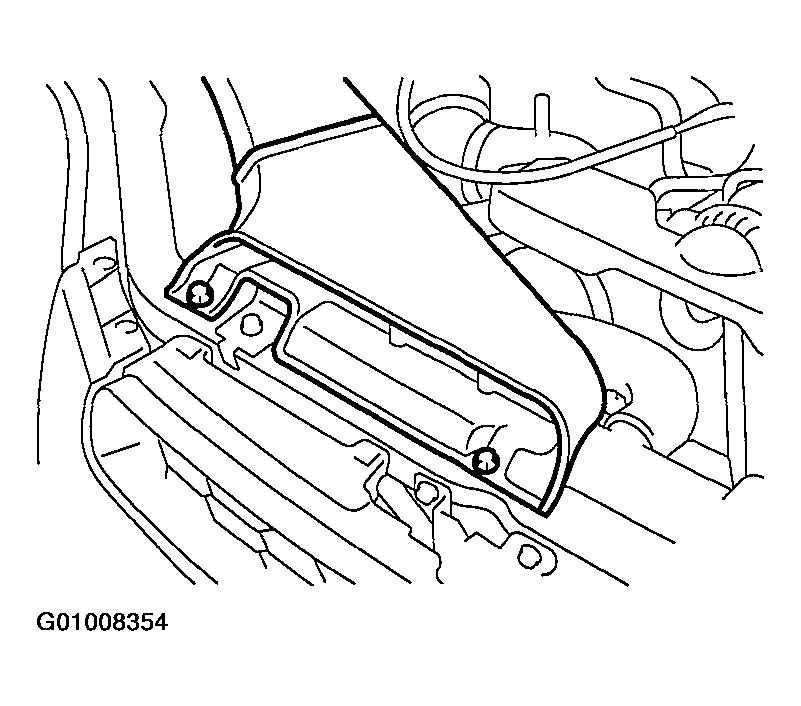

Remove the air intake duct.

Fig 6: Removing Air Intake Duct
Courtesy of SUBARU OF AMERICA, INC.

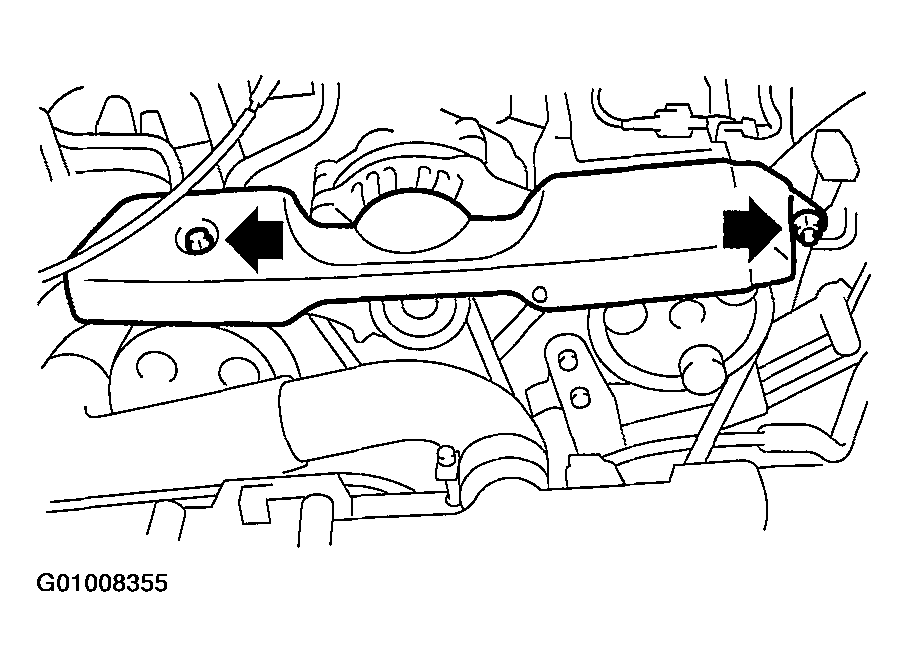

Remove the V-belt cover.

Fig 7: Removing V-Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the overflow hose.
Remove the reservoir tank. < Ref. to REMOVAL . >

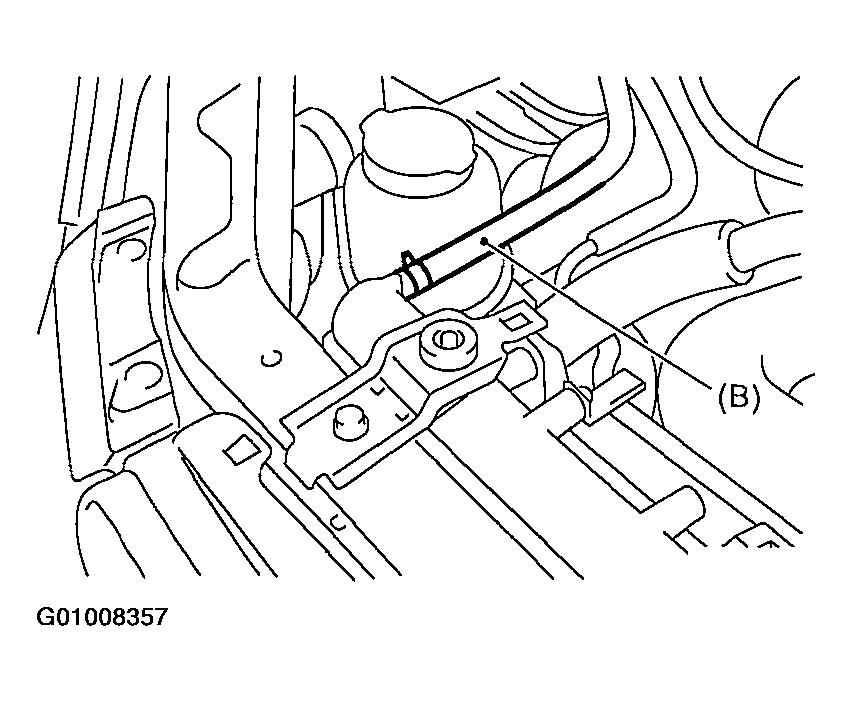

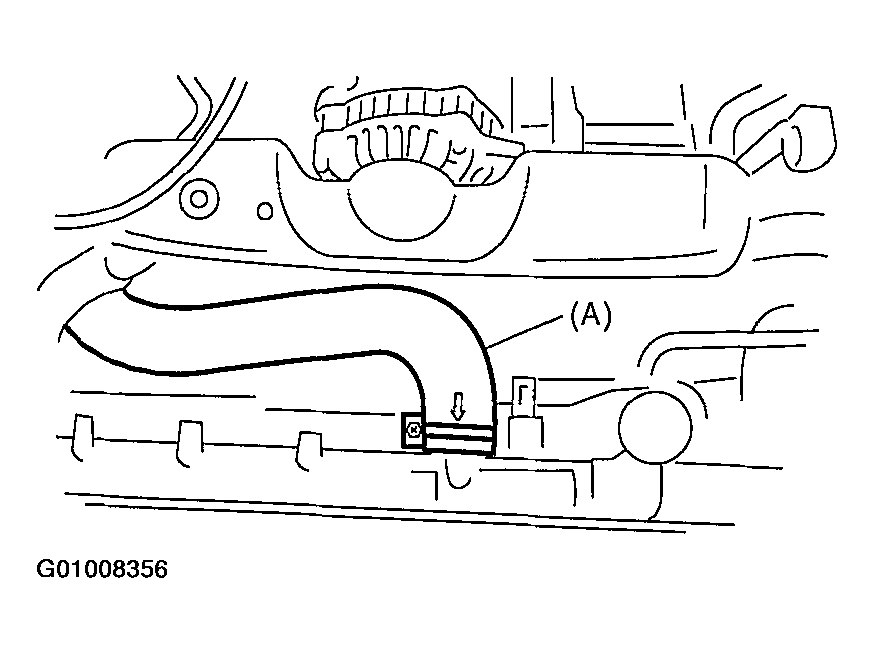

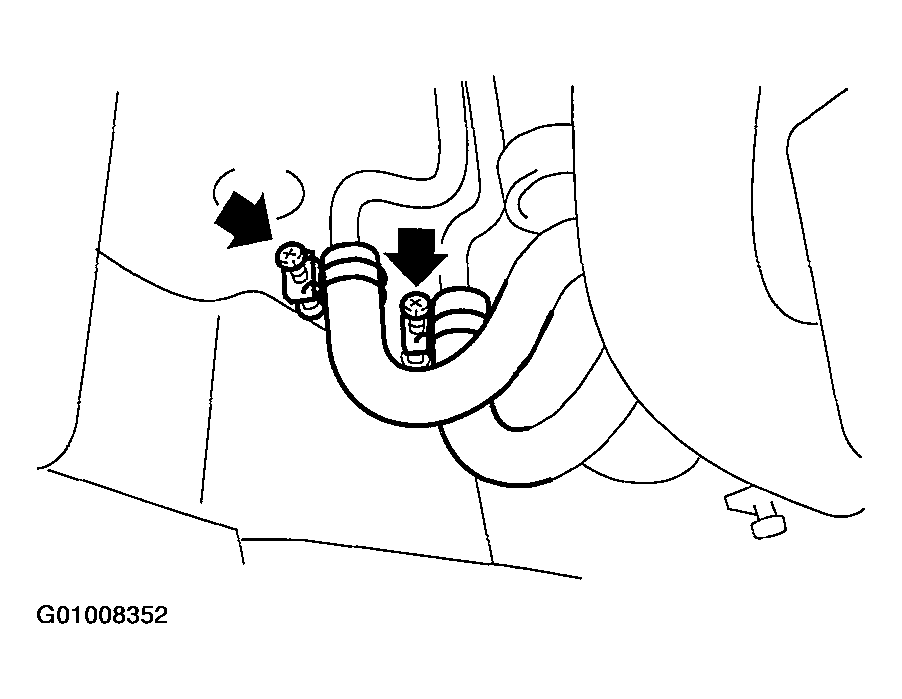

Disconnect the radiator inlet hose (A) and water tank hose (B) from radiator.

Fig 8: Disconnecting Radiator Inlet Hose From Radiator
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Disconnecting Water Tank Hose From Radiator
Courtesy of SUBARU OF AMERICA, INC.

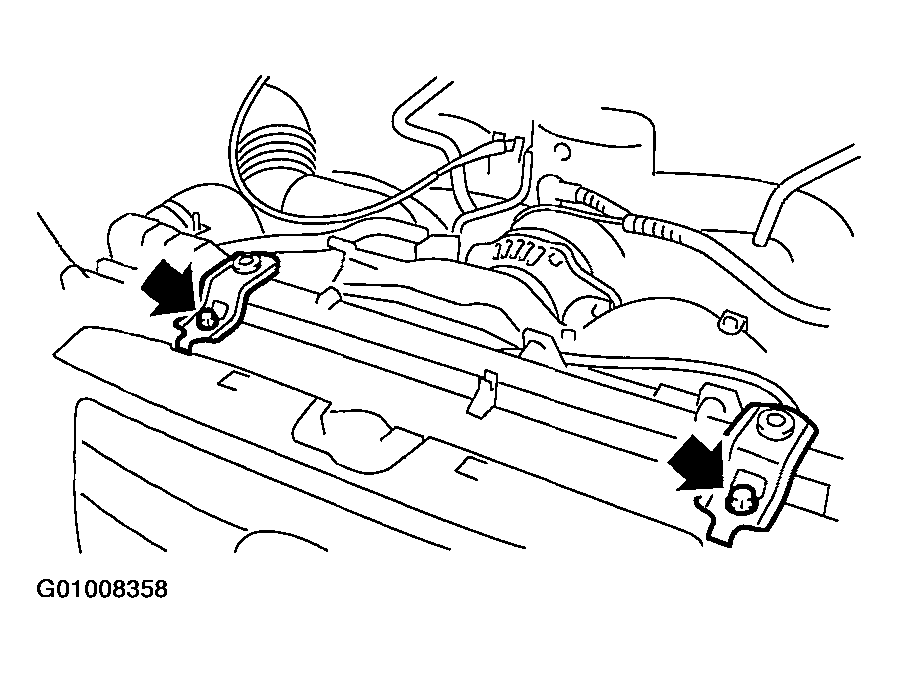

Remove the radiator upper brackets.

Fig 10: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
While lifting the radiator up, slide it to the left.
Lift-up the radiator, and then remove it from vehicle.
