Section 199 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel and ST.
1. ST 498497100 CRANKSHAFT STOPPER

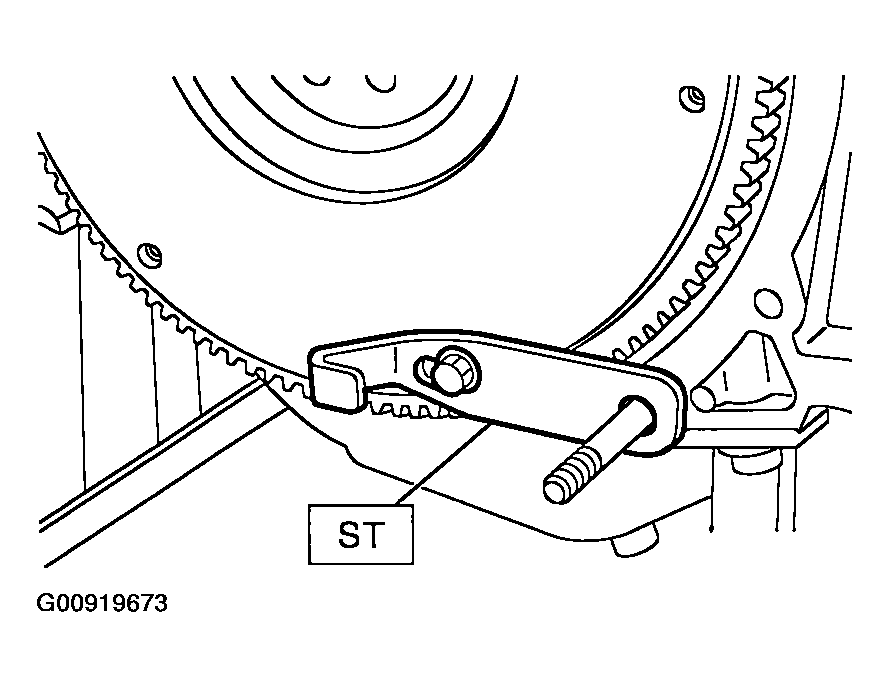

Fig 1: Installing Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

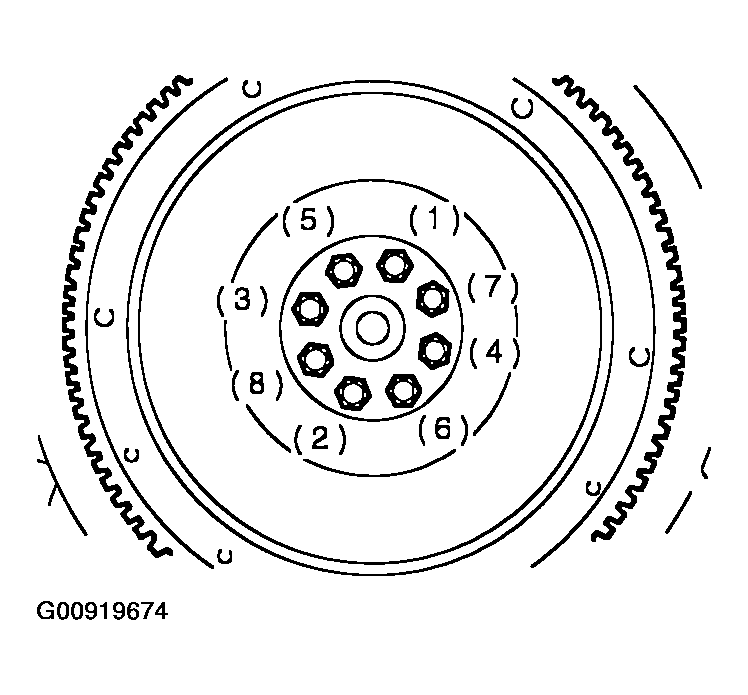

Fig 2: Tightening Flywheel Attaching Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. Refer to CLUTCH DISC AND COVER .
Install the transmission assembly. Refer to INSTALLATION , Manual Transmission Assembly.
