Clutch Pedal: Inspection

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. CLUTCH PEDAL

    Move the clutch pedal pads in the lateral direction with a force of approx. 10 N (1 kgf, 2 lb) to ensure pedal deflection is in specified range.

    NOTE: If excessive deflection is noted, replace the bushings with new ones.
    1. Deflection of clutch pedal: Service limit 5.0 mm (0.197 in) or less

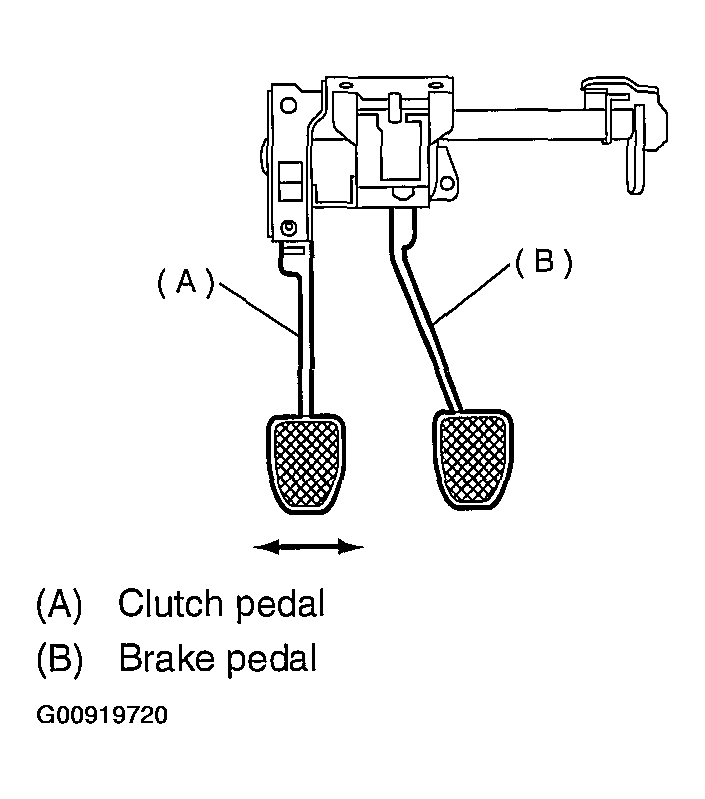

    Fig 1: Moving Clutch Pedal Pads In Lateral Direction
    G00919720Courtesy of SUBARU OF AMERICA, INC.
