Clutch Disc and Cover: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Insert the ST into clutch disc and install them on the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful to its direction.
1. ST 499747100 CLUTCH DISC GUIDE

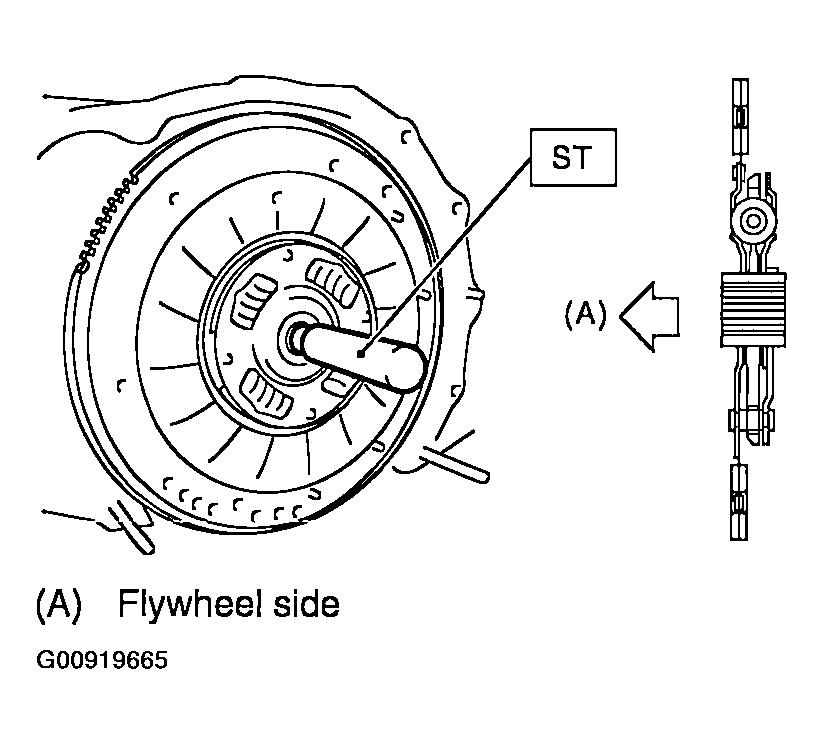

  Fig 1: Installing Clutch Disc & Cover
  Courtesy of SUBARU OF AMERICA, INC.
Position "0" marks on clutch cover and flywheel 120° apart, and then tighten the clutch cover installation bolts diagonally.
NOTE:
- "0" marks indicate the directions of residual unbalance.
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

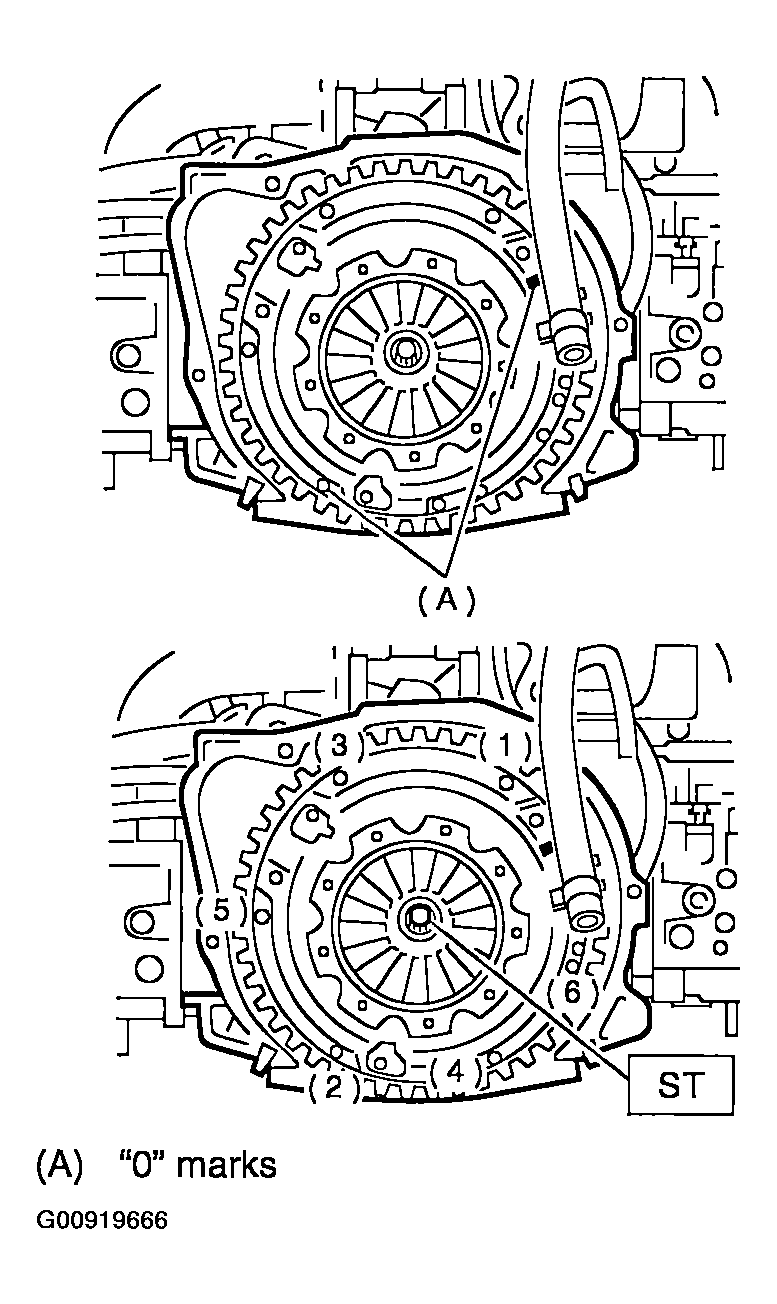

  Fig 2: Aligning "0" Marks On Clutch Cover & Flywheel
  Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
1. ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. Refer to INSTALLATION , Manual Transmission Assembly.
