Transfer Drive Gear: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transfer drive gear.
    1. Tightening torque: 26 N.m (2.7 kgf-m, 20 ft-lb)

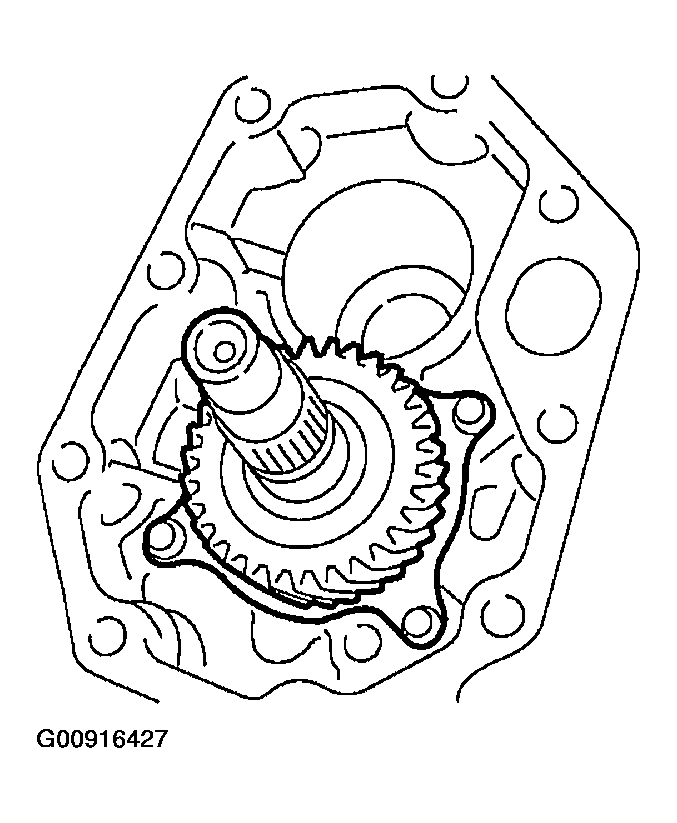

    Fig 1: Installing Transfer Drive Gear
    G00916427Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer driven gear.
  3. Install the extension case assembly.
  4. Install the transfer case and extension case assembly. Refer to INSTALLATION  , Transfer Case and Extension Case Assembly.
  5. Install the back-up light switch and neutral position switch. Refer to SWITCHES AND HARNESS  .
  6. Install the manual transmission assembly from vehicle. Refer to INSTALLATION  , Manual Transmission Assembly.
