Transfer Drive Gear: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the snap ring.

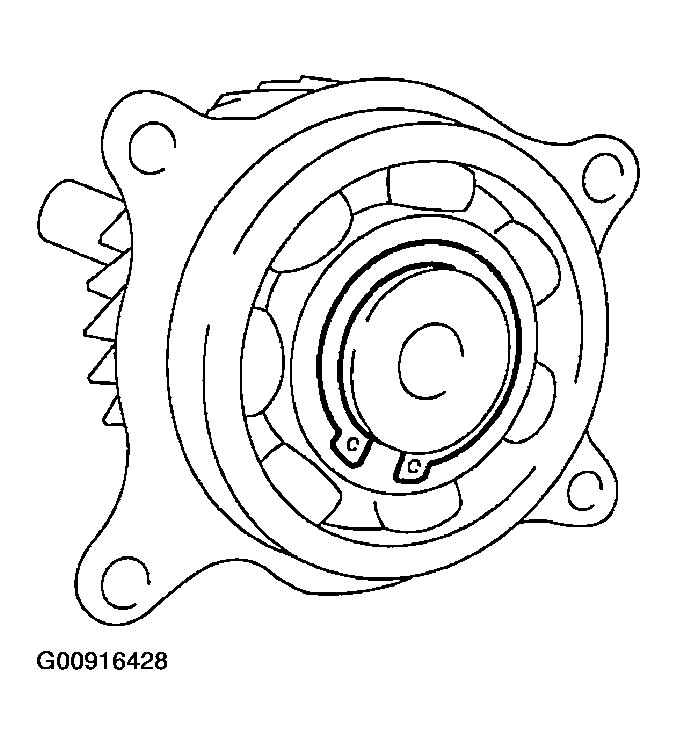

    Fig 1: Removing Snap Ring
    G00916428Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ball bearing.

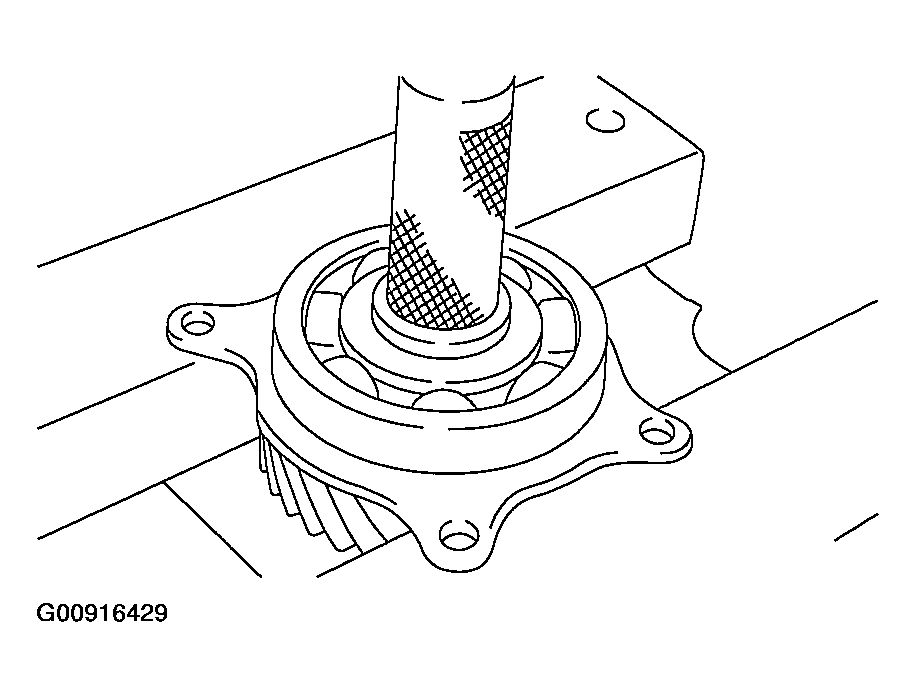

    Fig 2: Removing Ball Bearing
    G00916429Courtesy of SUBARU OF AMERICA, INC.
