Speedometer Gear: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from vehicle. Refer to MANUAL TRANSMISSION ASSEMBLY  .
  2. Remove the back-up light switch and neutral position switch. Refer to SWITCHES AND HARNESS  .
  3. Remove the transfer case with extension case assembly. Refer to TRANSFER CASE AND EXTENSION CASE ASSEMBLY  .
  4. Remove the transmission case. Refer to REMOVAL  , Transmission Case.
  5. Remove the vehicle speed sensor. Refer to REMOVAL  , Vehicle Speed Sensor.
  6. Remove the outer snap ring and pull out speedometer driven gear. Next, remove the oil seal, speedometer shaft and washer.

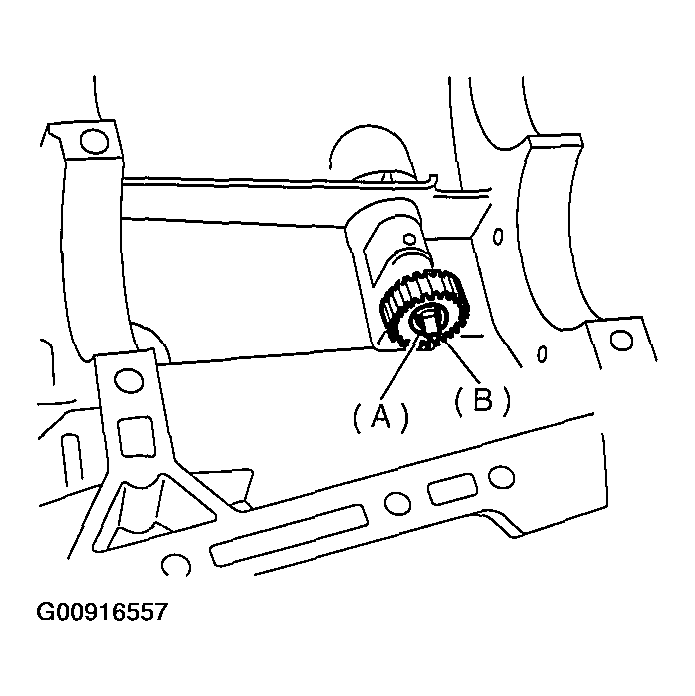

    Fig 1: Removing Oil Seal, Speedometer Shaft & Washer
    G00916557Courtesy of SUBARU OF AMERICA, INC.
