Reverse Check Sleeve: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Cover the reverse check sleeve with a rag, and remove the snap ring using a screwdriver.
NOTE: Replace the snap ring with a new one if deformed or weakened.

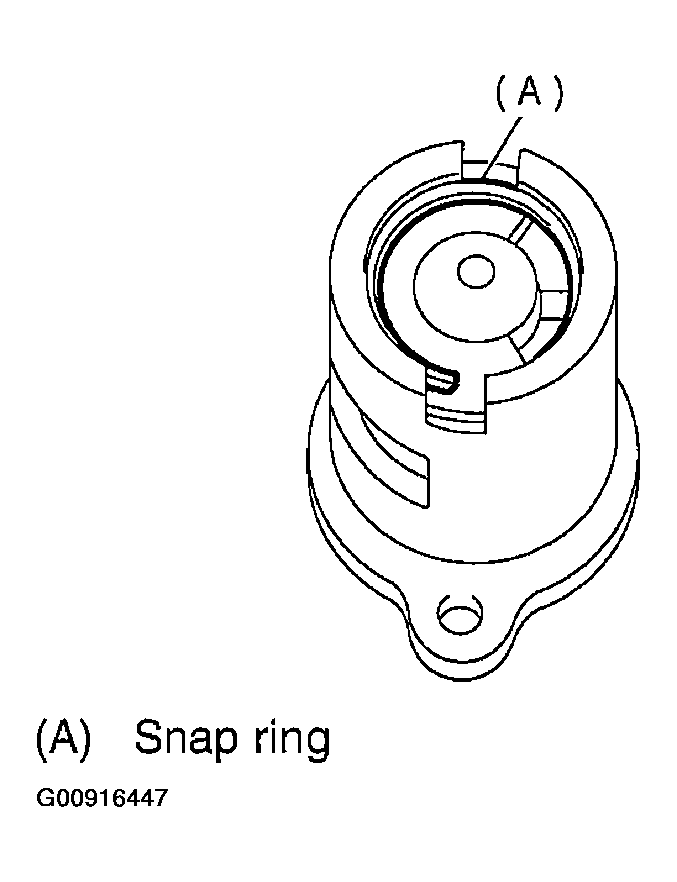

Fig 1: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check plate, reverse check spring, reverse check cam, return spring (5th-Rev), reverse accent shaft, return spring cap and return spring (1st-2nd).

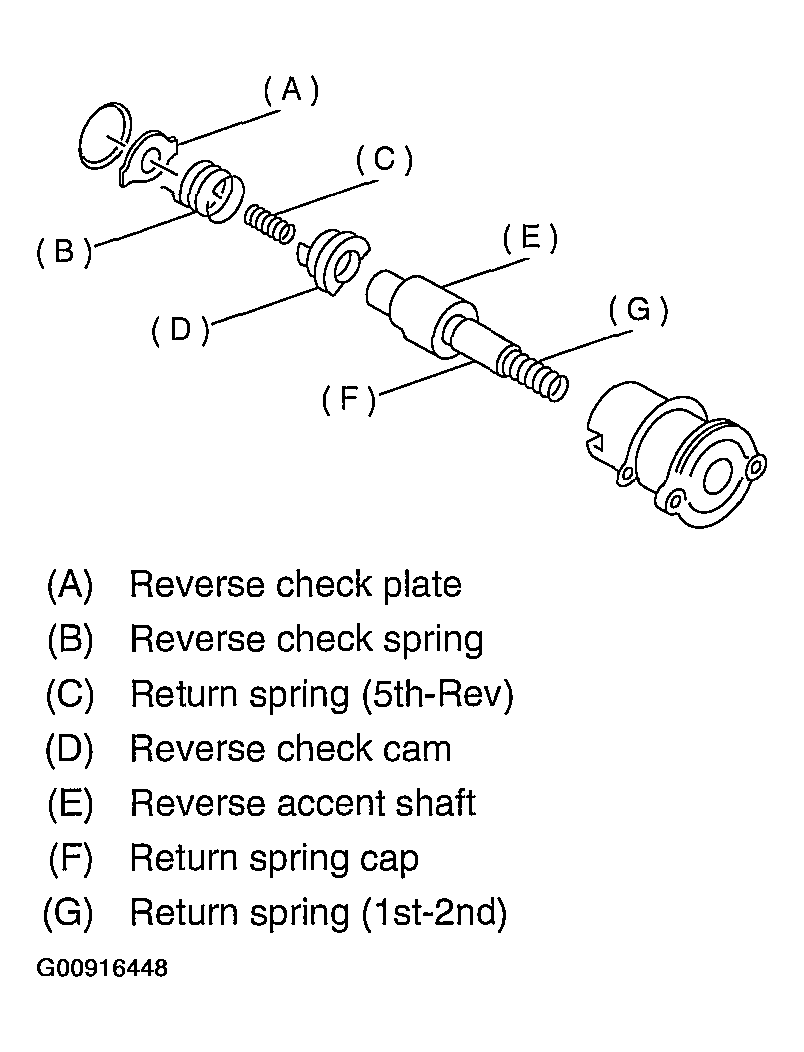

Fig 2: Removing Reverse Check Plate, Reverse Check Spring, Reverse Check Cam & Return Spring (5th-Rev)
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring.
NOTE:
- Reverse check sleeve assembly uses an O-ring which should not be scratched.
- Be careful not to break the adjustment shim placed between reverse check sleeve assembly and case.
