Mode $02 (Powertrain Freeze Frame Data)
WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

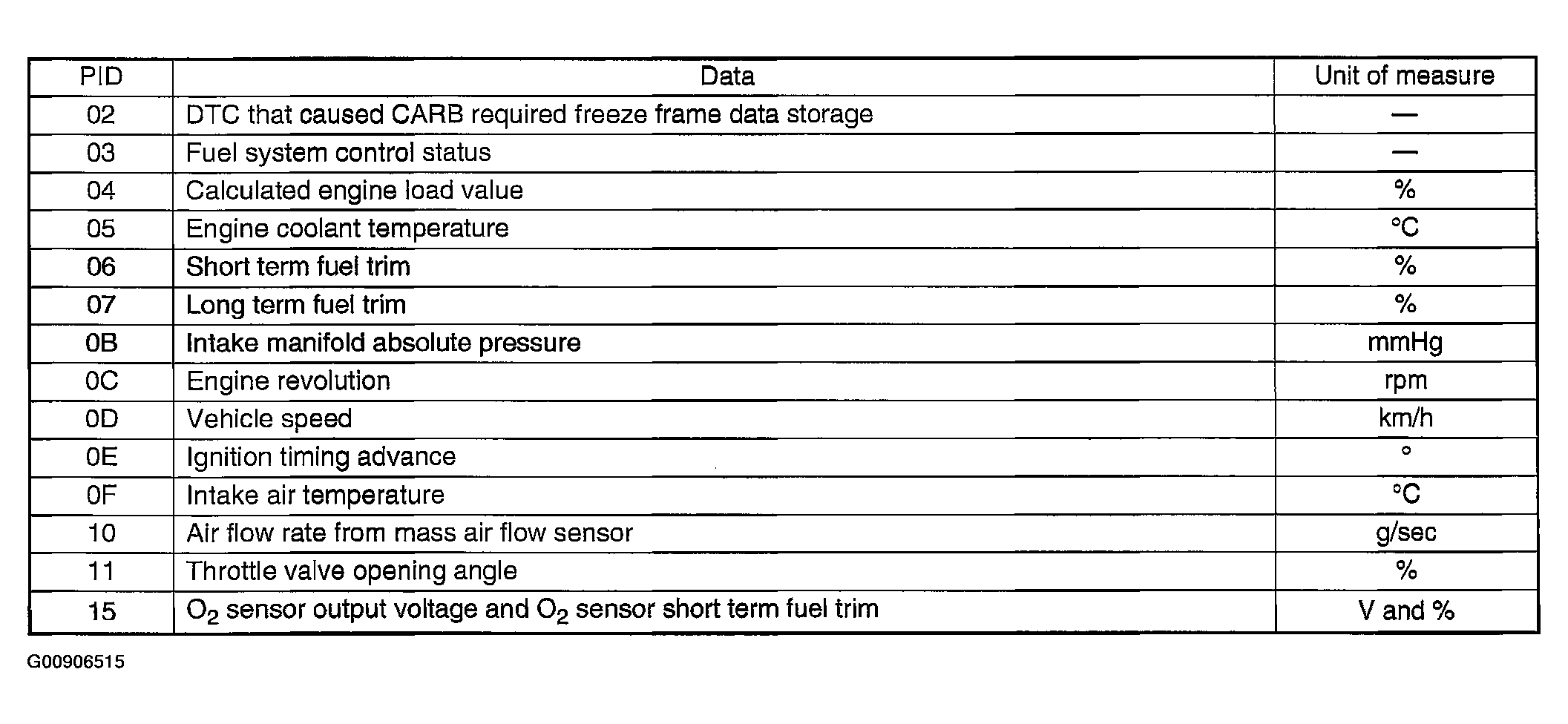

Refers to data denoting the operating condition when trouble is sensed by the on-board diagnosis system A list of the support data and PID (Parameter Identification) codes are shown in the following table.
NOTE:
Refer to
.
