Water Pump: Installation

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install the water pump onto cylinder block (LH).
NOTE:
- Replace the gasket with a new one.
- When installing the water pump, tighten bolts in two stages in alphabetical sequence as shown in the figure.
Tightening torque:

First:

12 N.m (1.2 kgf-m, 8.7 ft-lb)

Second:

12 N.m (1.2 kgf-m, 8.7 ft-lb)

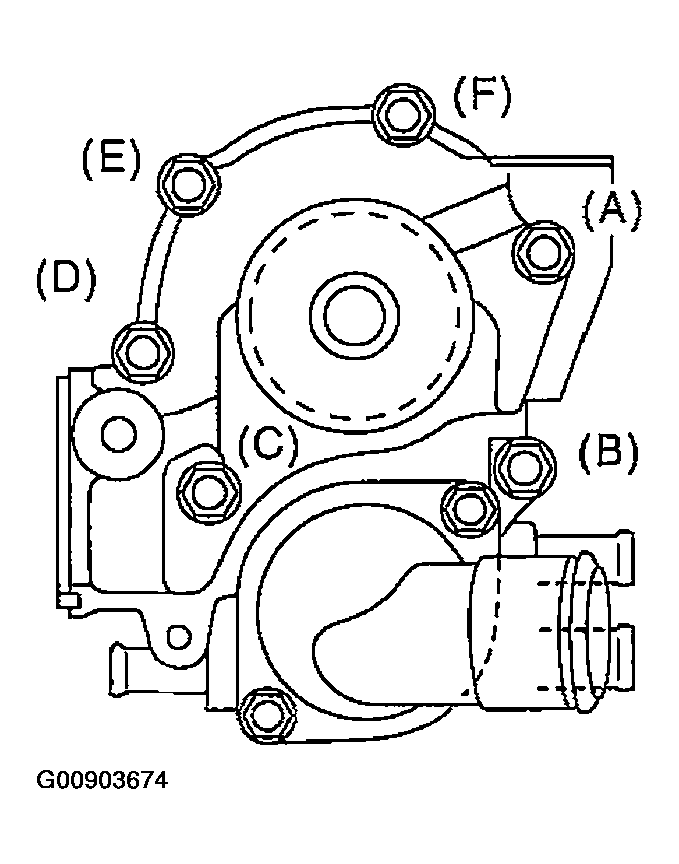

Fig 1: Installing Water Pump Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the hose to water pump.
Install the tensioner bracket.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

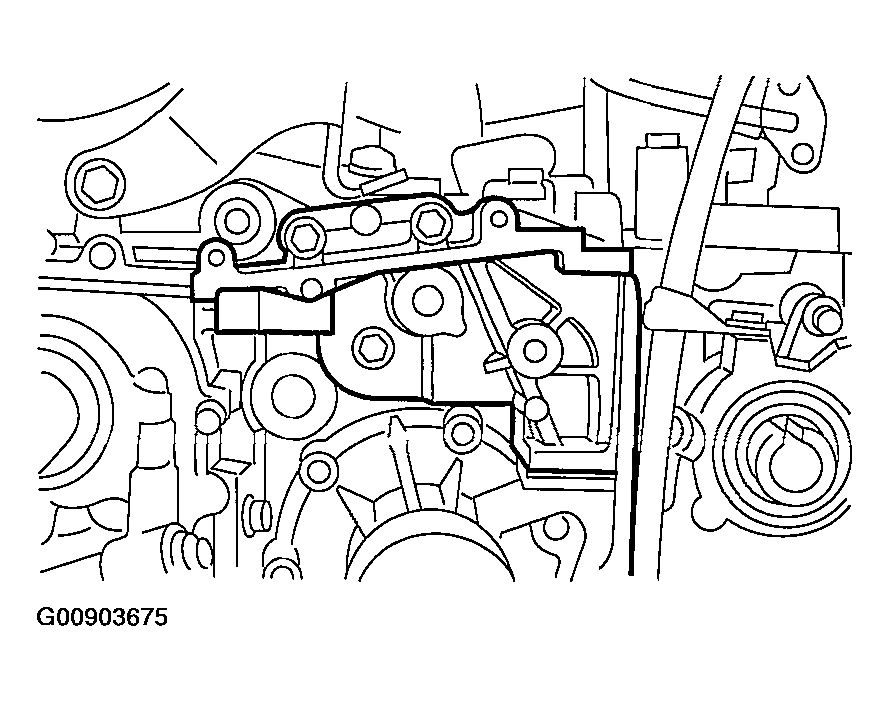

Fig 2: Installing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the belt cover No. 2 (LH).
Tightening torque:

5 N.m (0.5 kgf-m, 3.6 ft-lb)

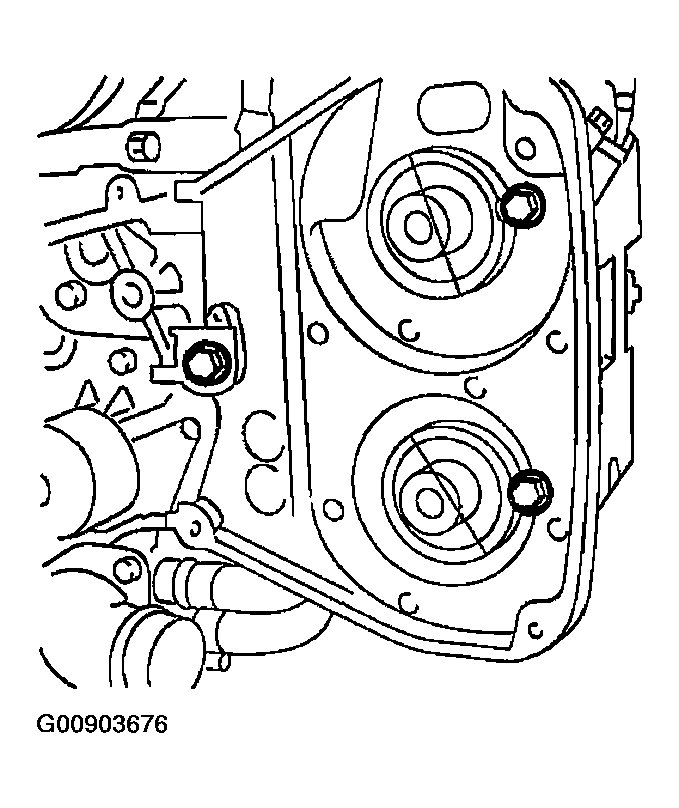

Fig 3: Installing Belt Cover No. 2 (LH)
Courtesy of SUBARU OF AMERICA, INC.
Install the camshaft sprockets (LH) by using ST. Refer to INSTALLATION , Camshaft Sprocket.
Install the camshaft position sensor. Refer to INSTALLATION , Camshaft Position Sensor.
Install the belt idler No. 2 (C).
Install the belt idler (B).
Install the automatic belt tension adjuster (A) which has tension rod held by pin. Refer to INSTALLATION , Timing Belt Assembly.
Tightening torque:

39 N.m (4.0 kgf-m, 28.9 ft-lb)

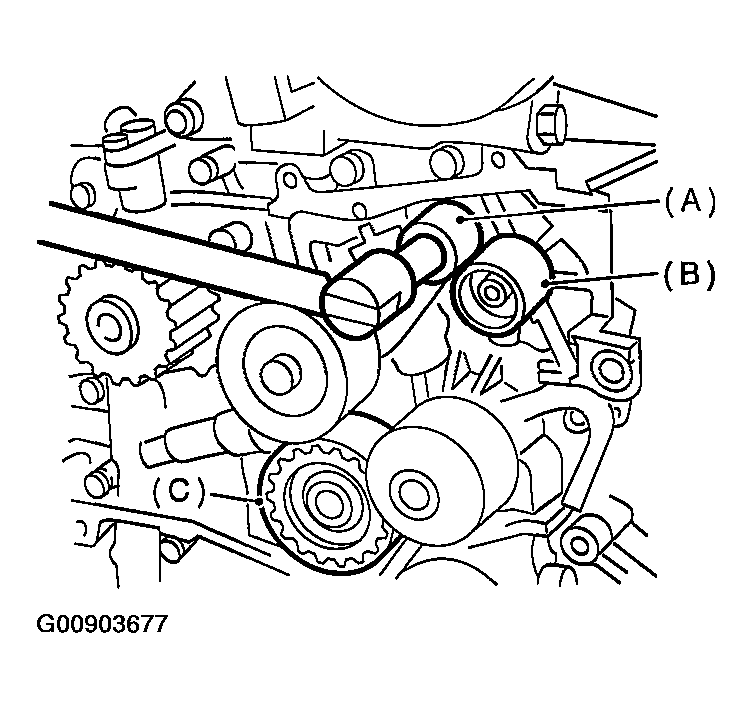

Fig 4: Installing Belt Idler
Courtesy of SUBARU OF AMERICA, INC.
Install the timing belt. Refer to TIMING BELT , INSTALLATION, Timing Belt Assembly.
Install the V-belts. Refer to INSTALLATION , V-belt.
Install the radiator. Refer to INSTALLATION , Radiator.
