Section 180 (Engine Cooling System (H4DOTC)): Radiator: Inspection

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant filler tank cap, top off coolant filler tank, and then attach the tester to coolant filler tank in place of cap.

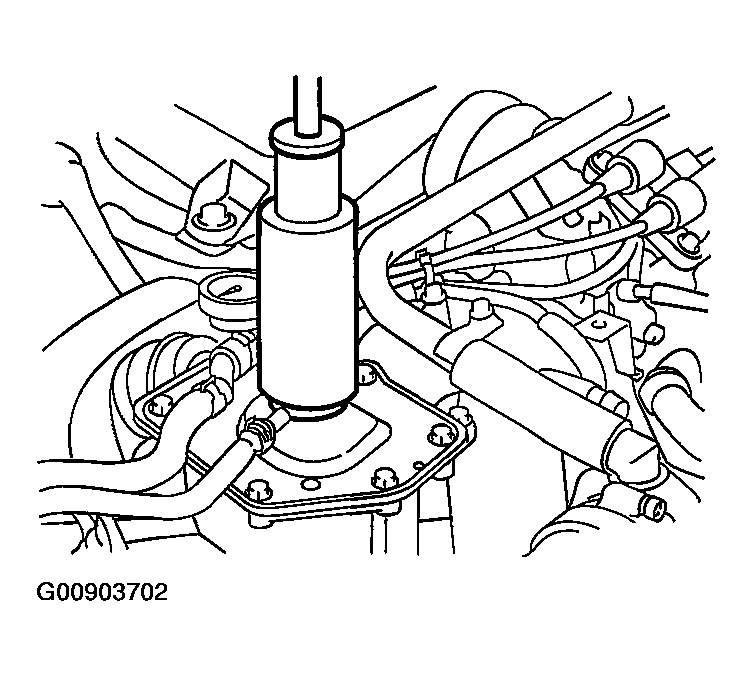

    Fig 1: Attaching Tester To Coolant Filler Tank In Place Of Cap
    G00903702Courtesy of SUBARU OF AMERICA, INC.
  2. Apply a pressure of 122 kPa (1.2 kg/cm2 , 18 psi) to the radiator to check if:
    1. Engine coolant leaks at/around radiator.
    2. Engine coolant leaks at/around hoses or connections.
CAUTION:
  • Inspection must be carried out at the side of coolant filler tank, not at the side of radiator.
  • Engine should be turned off.
  • Wipe engine coolant from check points in advance.
  • Be careful to prevent engine coolant from spurting out when removing the tester.
  • Be careful also not to deform the filler neck of coolant filler tank when installing or removing tester.
