Cylinder Block: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

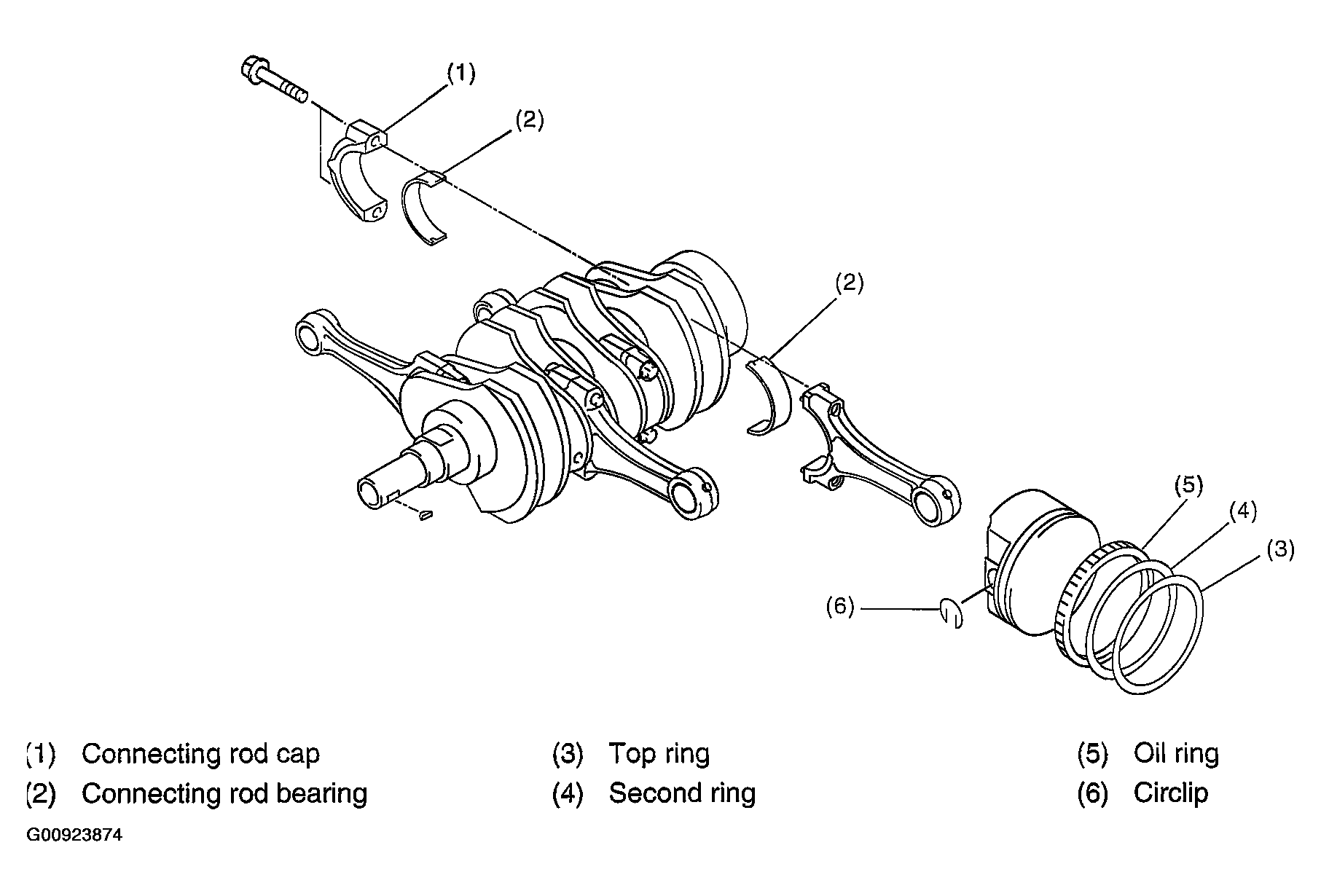

Fig 1: Disassembling Crankshaft
G00923874Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the connecting rod cap.
  2. Remove the connecting rod bearing.
    NOTE: Arrange the removed connecting rod, connecting rod cap and bearing in order to prevent confusion.
  3. Remove the piston rings using the piston ring expander.
  4. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in proper order to prevent confusion.
  5. Remove the circlip.
