Cylinder Block: Assembly

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

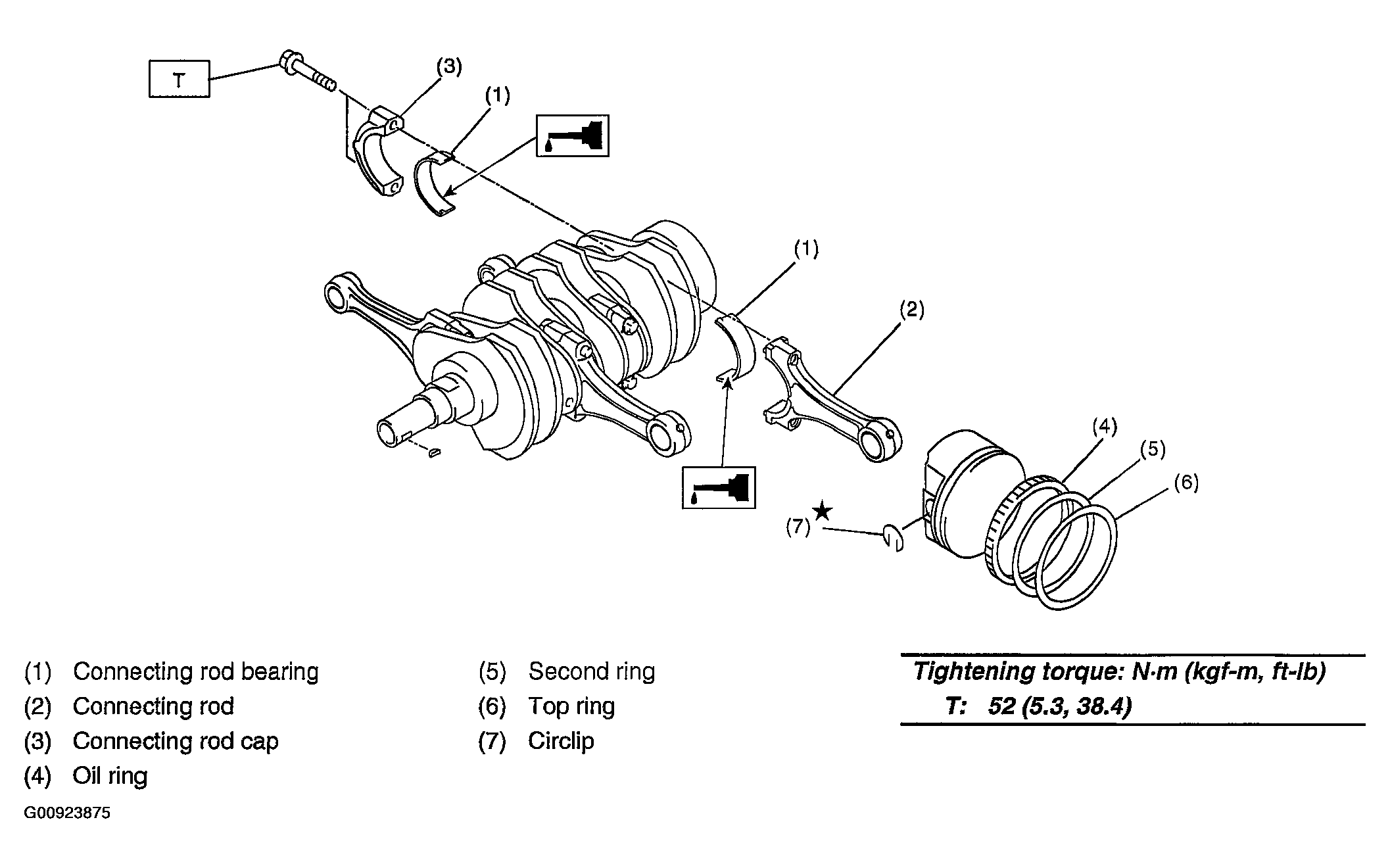

Fig 1: Assembling Crankshaft
G00923875Courtesy of SUBARU OF AMERICA, INC.
  1. Apply oil to the surfaces of the connecting rod bearings. Install the connecting rod bearings on connecting rods and connecting rod caps.
  2. Install the connecting rod on crankshaft.
    NOTE: Position each connecting rod with the side marked facing forward.
  3. Install the connecting rod cap with connecting rod nut.

    Ensure the arrow on connecting rod cap faces the front during installation.

    NOTE:
    • Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching number.
    • When tightening the connecting rod nuts, apply oil on the threads.
  4. Install the oil ring spacer, upper rail and lower rail in this order by hand. Then install the second ring and top ring with a piston ring expander.
