Section 177 (Intake (Induction) (H4DOTC)): Intercooler: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove air bypass valve from intercooler.

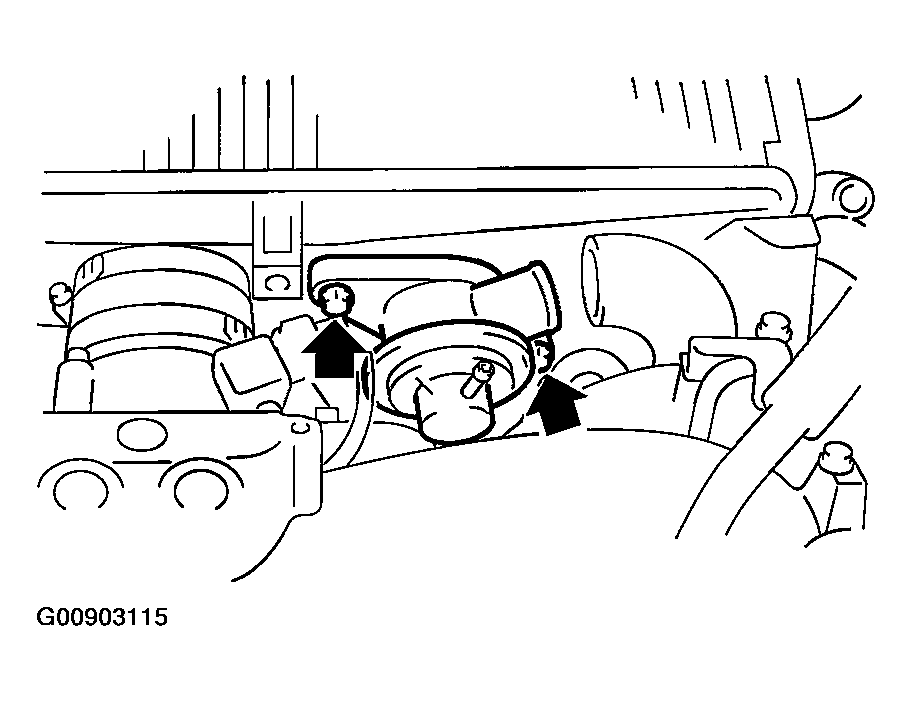

Fig 1: Removing Air Bypass Valve From Intercooler
Courtesy of SUBARU OF AMERICA, INC.
Remove intercooler duct from intercooler.

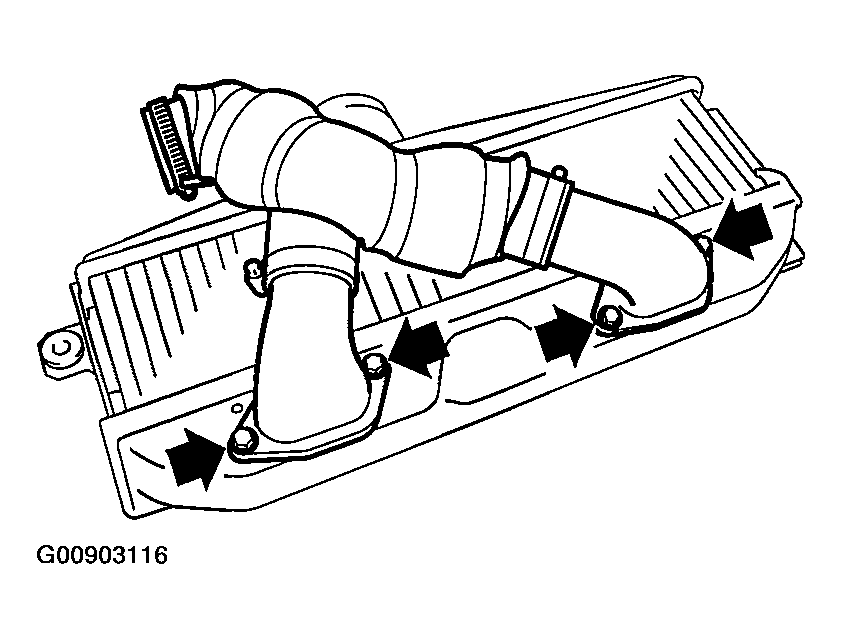

Fig 2: Removing Intercooler Duct From Intercooler
Courtesy of SUBARU OF AMERICA, INC.
Separate duct.

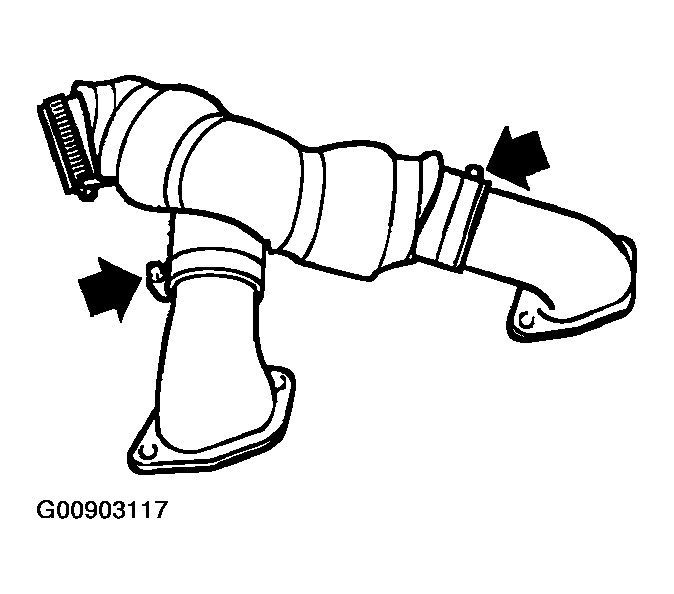

Fig 3: Separating Duct
Courtesy of SUBARU OF AMERICA, INC.
