Section 177 (Intake (Induction) (H4DOTC)): Intercooler: Assembly

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

To assemble, reverse order of disassembly.

NOTE: Be careful pinching of O-ring.

Tightening torque: 16 N.m (1.6 kgf-m, 11.6 ft-lb)

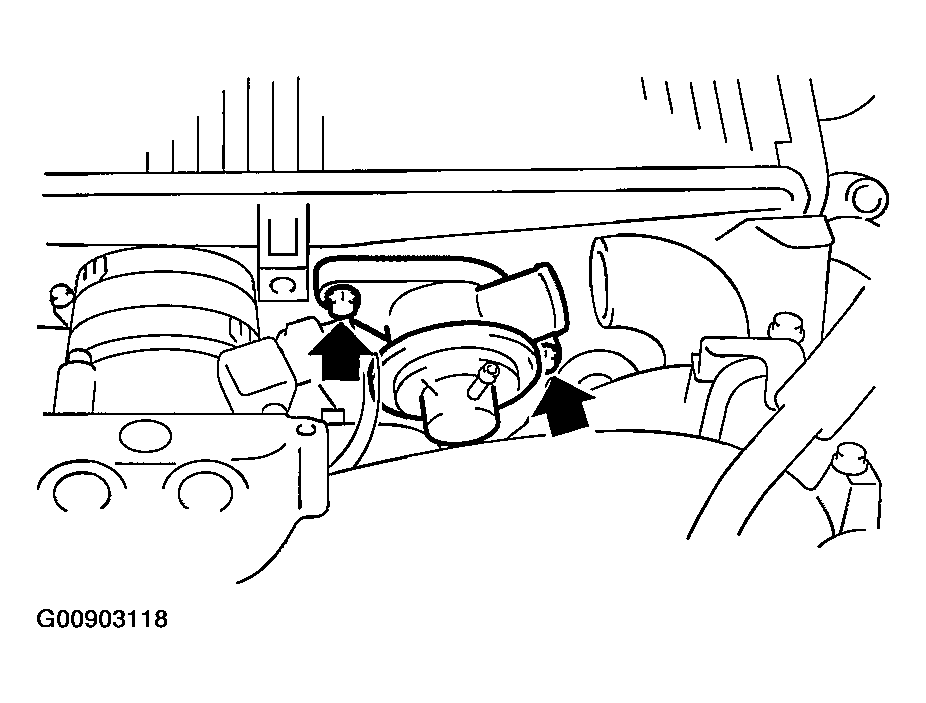

Fig 1: Installing Air Bypass Valve From Intercooler

Courtesy of SUBARU OF AMERICA, INC.

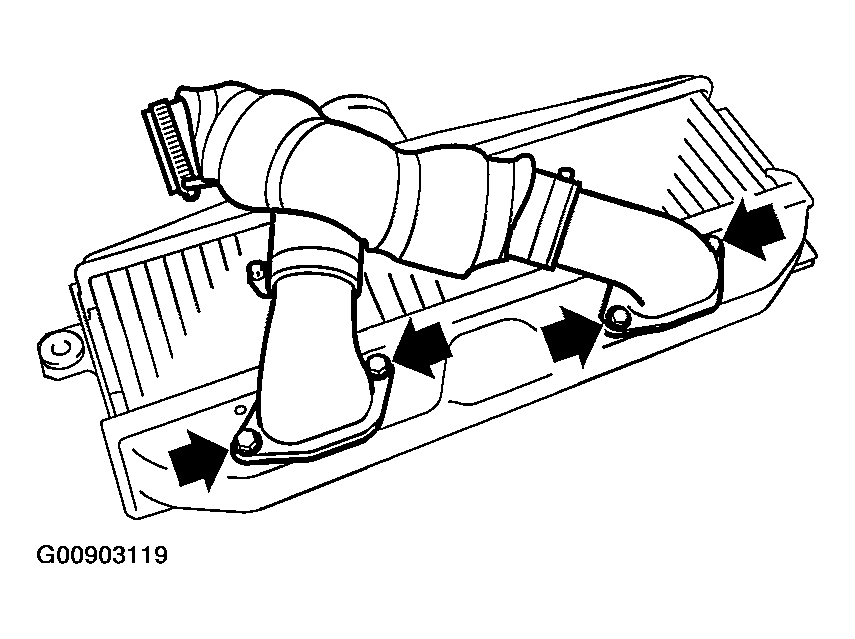

Fig 2: Installing Intercooler Duct From Intercooler

Courtesy of SUBARU OF AMERICA, INC.
