Intake Duct: Removal

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

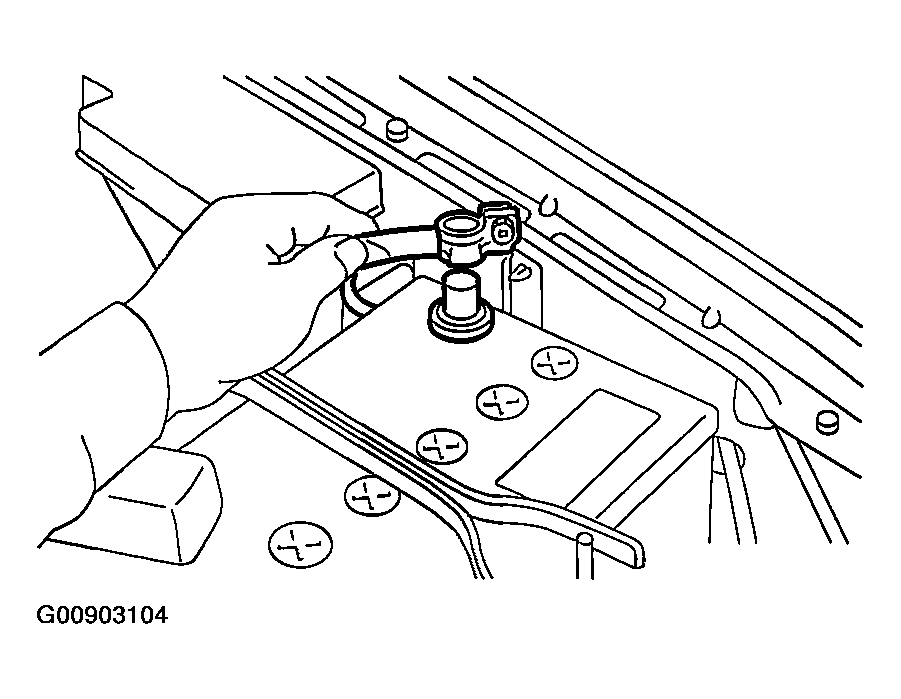

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
Refer to REMOVAL , Intake Manifold.
Remove the sensor, engine harness and fuel pipe attached to intake manifold.
Refer to DISASSEMBLY , Intake Manifold.
Remove the intake duct from intake manifold.

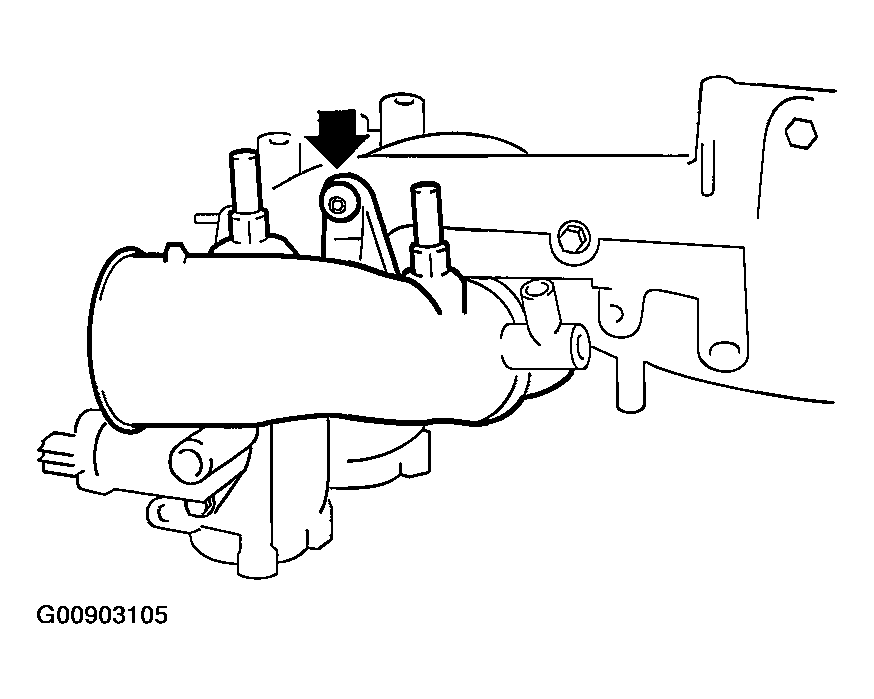

Fig 2: Removing Intake Duct From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
