Intake Duct: Installation

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Tightening torque: 19 N.m (1.9 kgf-m, 13.7 ft-lb)

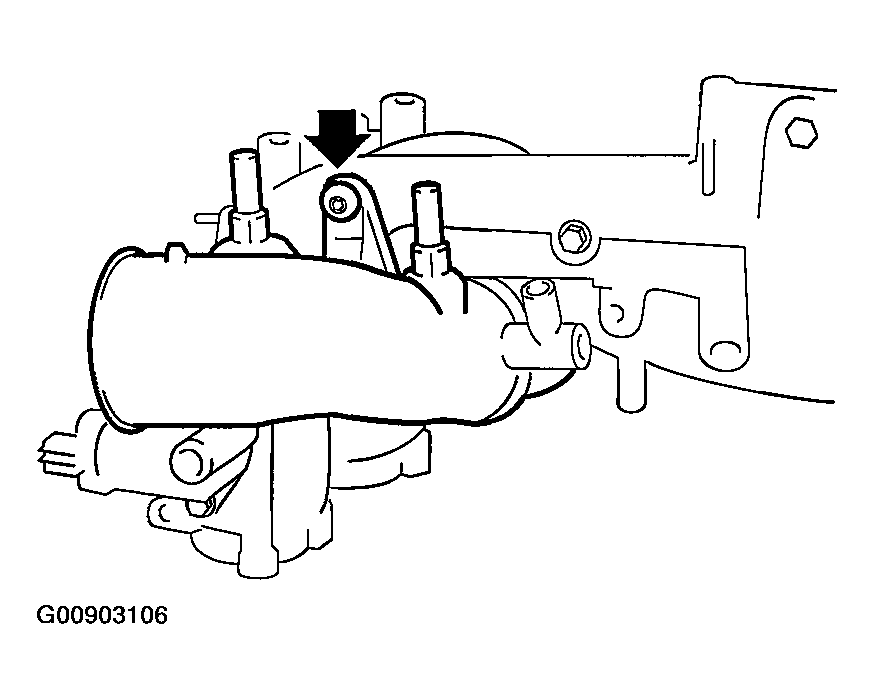

Fig 1: Tightening Bolt

Courtesy of SUBARU OF AMERICA, INC.
