Intake Duct

WARNING: This page is about a different car, the 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

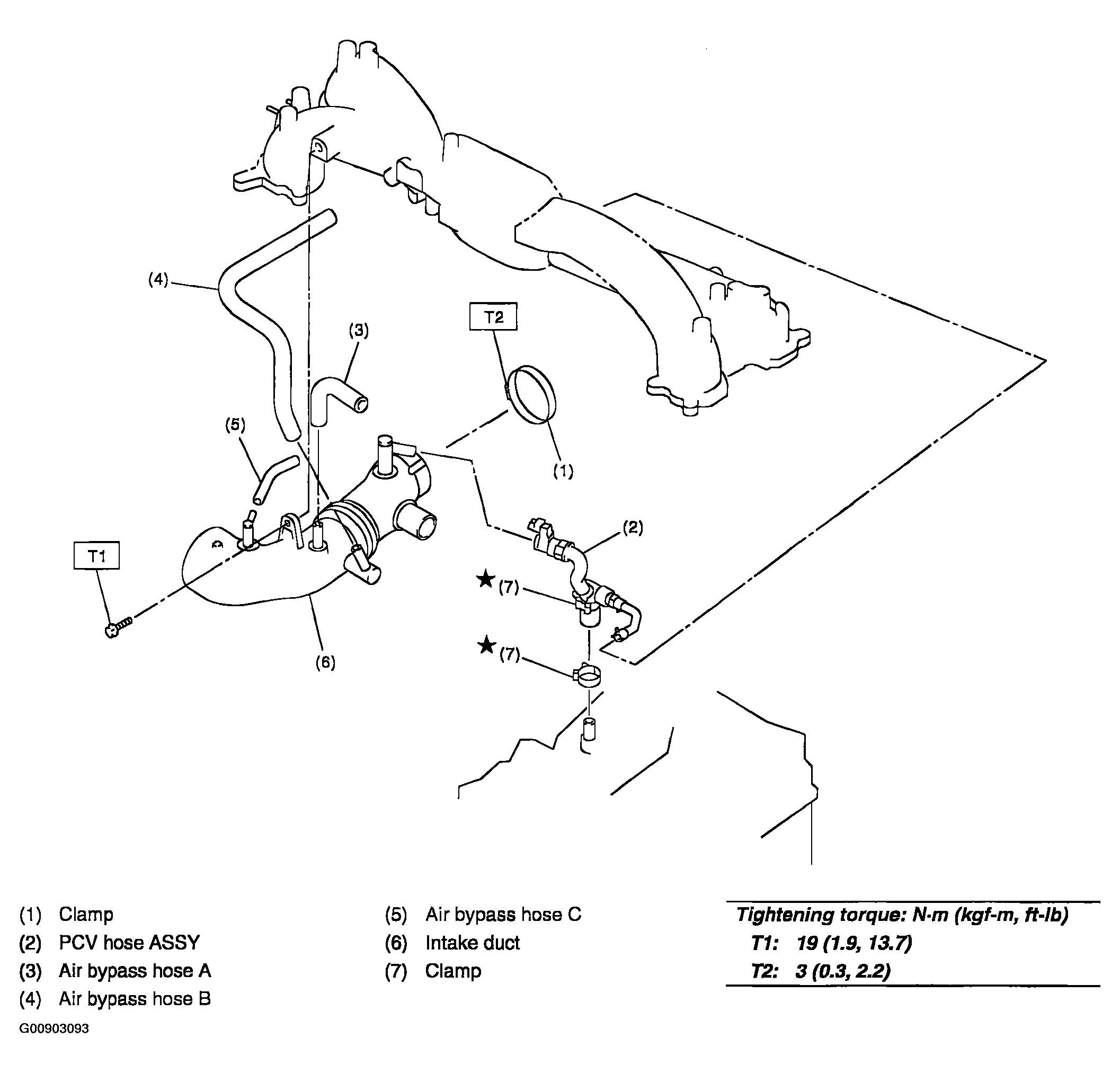

Fig 1: Exploded View Of Intake Duct Components With Torque Specifications
G00903093Courtesy of SUBARU OF AMERICA, INC.
